DISMOUNTING AND MOUNTING THE ENGINE
B
3

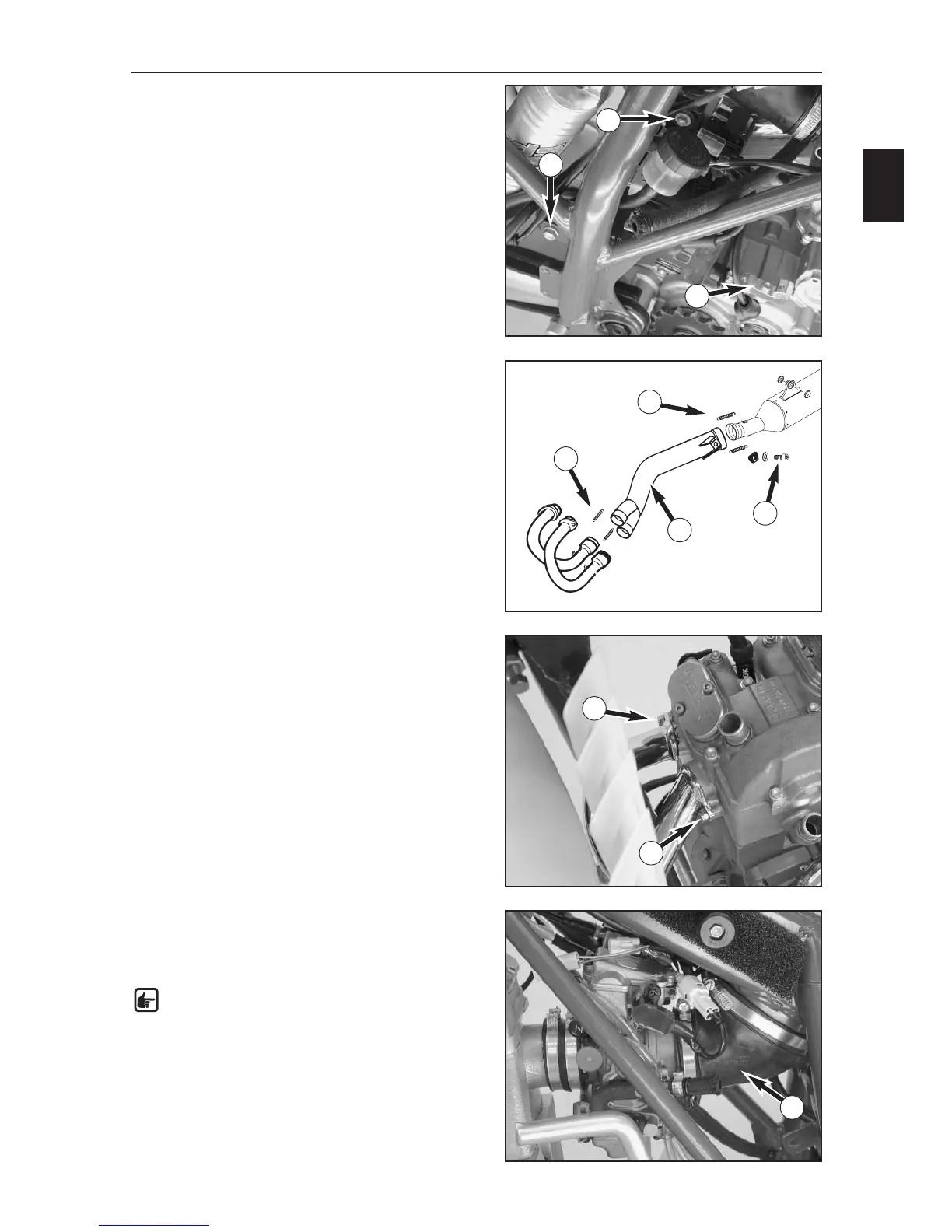

– Remove the retaining bolt from the starter relay (1),
disconnect the connectors from the starter relay and
lift out the starter relay.
– Unscrew the nut on the chain roller bolt (2).
–Dismount the starter holding bridge (3) and lift the
battery out of the frame together with the battery
case.
–Use a suitable tool (hooked handle) to detach the front
(4) and rear (5) exhaust springs.
– Remove the exhaust nuts (6) from the cylinder head
and pull both exhaust pipes out of the intermediate
exhaust pipe (7) one at a time.
– Unscrew the bolt (8) and remove the intermediate
exhaust pipe.
–Loosen the clamps on the carburetor connection boots
and remove the rear carburetor connection boot (9).
– Pull the carburetor out of the front connection boot
and attach to the frame.
NOTE: leave the carburetor in the frame if it
does not need to be serviced.
Move the carburetor vent hoses towards the
rear.
–Disconnect the spark plug connector and separate the
decompression cable from the cylinder head.
1
2
3
4
5
6
6
8
9
7
