OPERATION

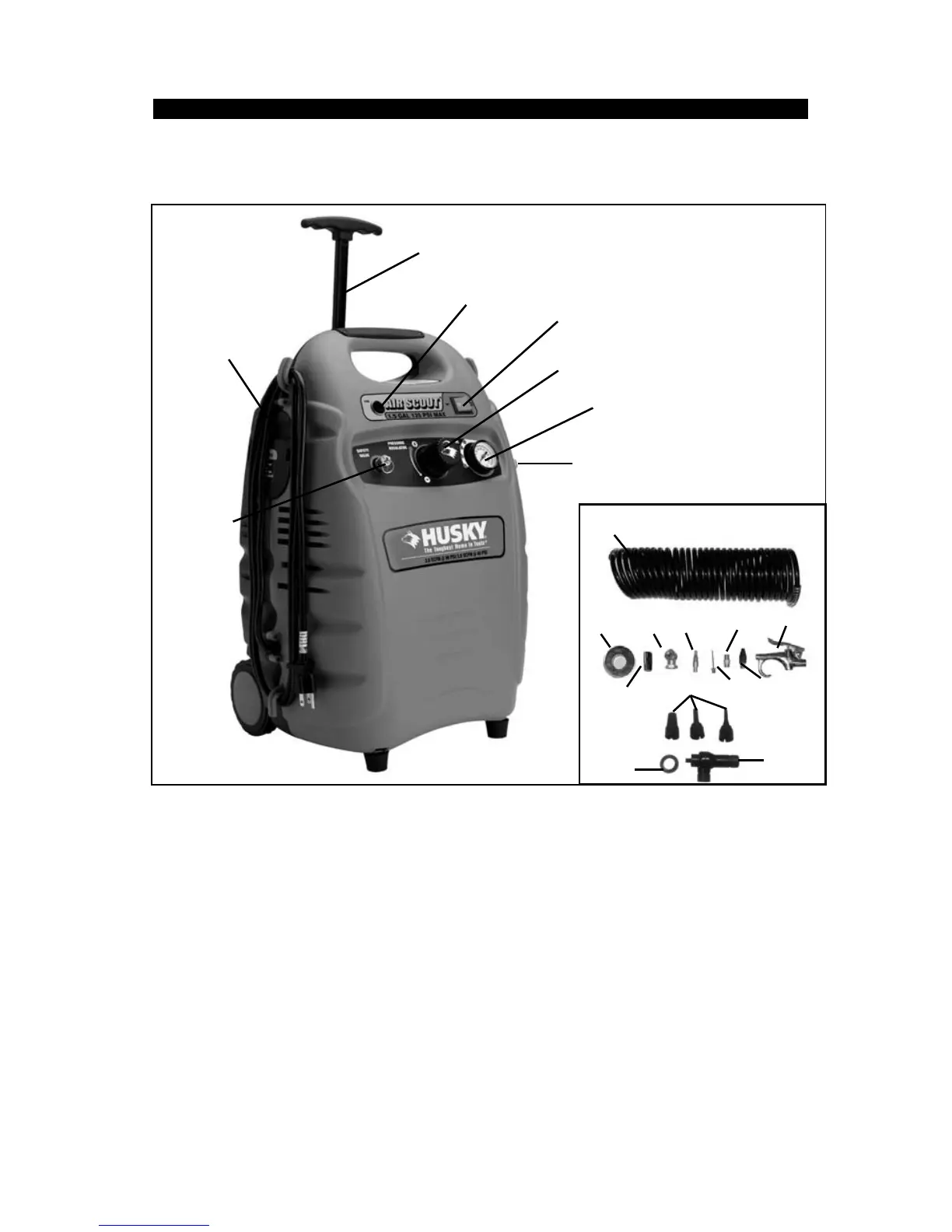

Know Your Air Compressor
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR
UNIT. Compare the illustrations with your unit to familiarize yourself with the location of
various controls and adjustments. Save this manual for future reference
Description of Operation
Become familiar with these controls
before operating the unit.
Off/Auto-On Switch: Turn this switch to
"ON" to provide automatic power to the
pressure switch and "OFF" to shut off
the power.
Pressure Switch (not shown): The
pressure switch automatically starts the
motor when the air tank pressure drops
below the factory set "cut-in" pressure.
It stops the motor when the air tank
pressure reaches the factory set
"cut-out" pressure
Safety Valve: If the pressure switch
does not shut off the air compressor at
its "cut-out" pressure setting, the safety
valve will protect against high pressure
by "popping out" at its factory set
pressure (slightly higher than the
pressure switch "cut-out" setting).
Outlet Pressure Gauge: The outlet
pressure gauge indicates the air
pressure available at the outlet side of
the regulator. This pressure is controlled
by the regulator and is always less than
or equal to the tank pressure.
Fuse:
Protects motor from overload. (Fuse
type 6G 12A 250V)
