Telescopic tube
Assembly

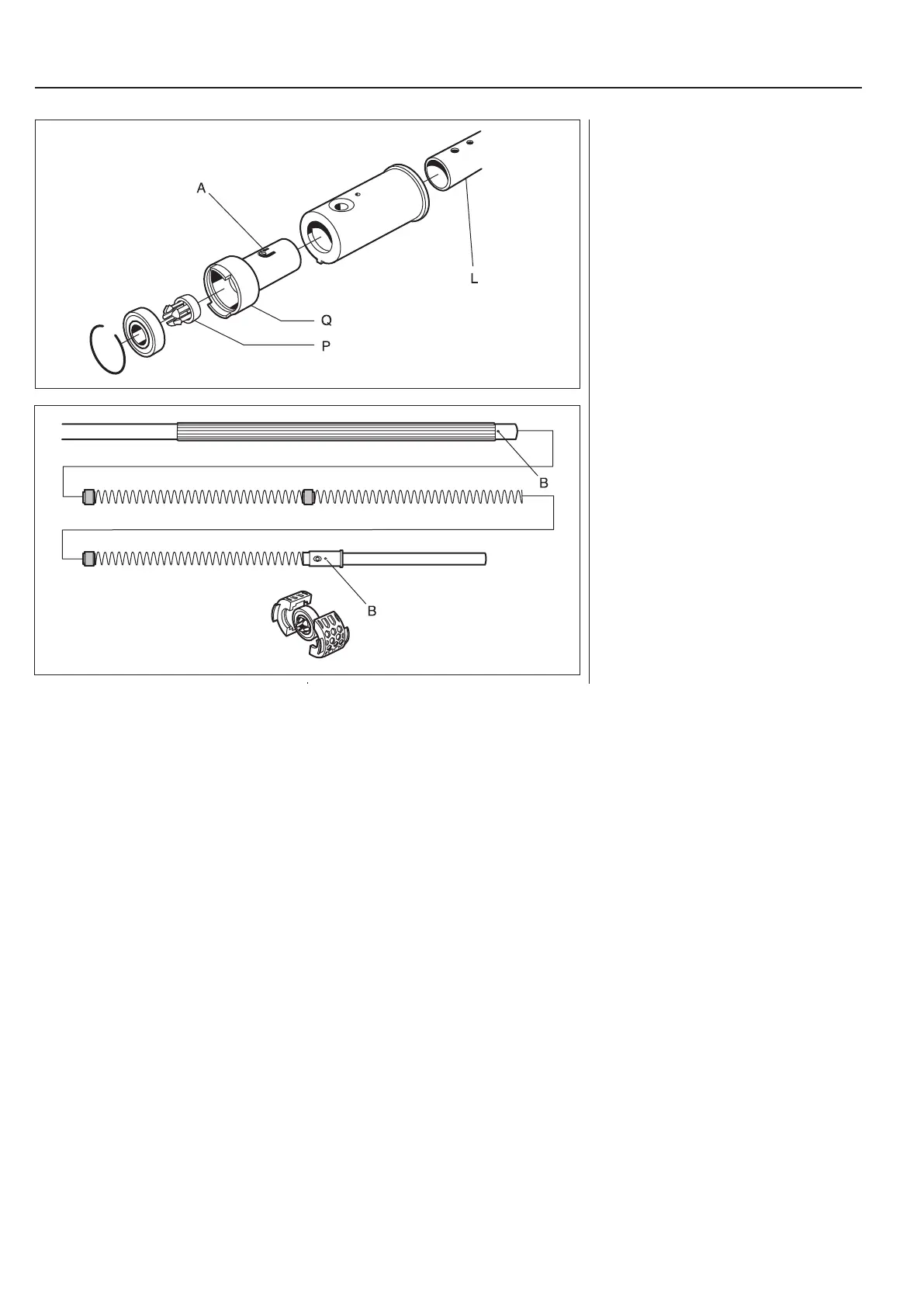

Assemble the different components in the
reverse order as set out for dismantling.
First t the axle control (P) in the ball
bearing (in the right direction) and then the
ball bearing in the bearing cage.
Then push the bearing cage into the
rubber sleeve.
Slide the pipe (L) over the bearing cage
and make sure the spring tongues (A) on
the bearing cage snap in place on the tube.
Lubricate all components with a thin layer
of grease and continue assembling.
Connect the 3 springs with the bearing
cages (A).
Make sure they are turned in the right
direction so that the axle control in the ball
bearing protrudes into the telescopic tube.
Do not forget then to tighten the screw that
ts in hole (B) and lock the pipes in relation
to each other.
Finish by tting the throttle control and saw
head.
