15 ELECTRICAL SYSTEM 84
15.4 Changing the main fuse
Warning
Fire hazard The electrical system can be overloaded if the wrong fuses are used.
– Use only fuses with the prescribed amperage. Never bypass or repair fuses.
Info
The main fuse protects all power consumers of the vehicle. It is located in the starter relay housing under the air filter box lid.
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the air filter box lid. ( p. 50)

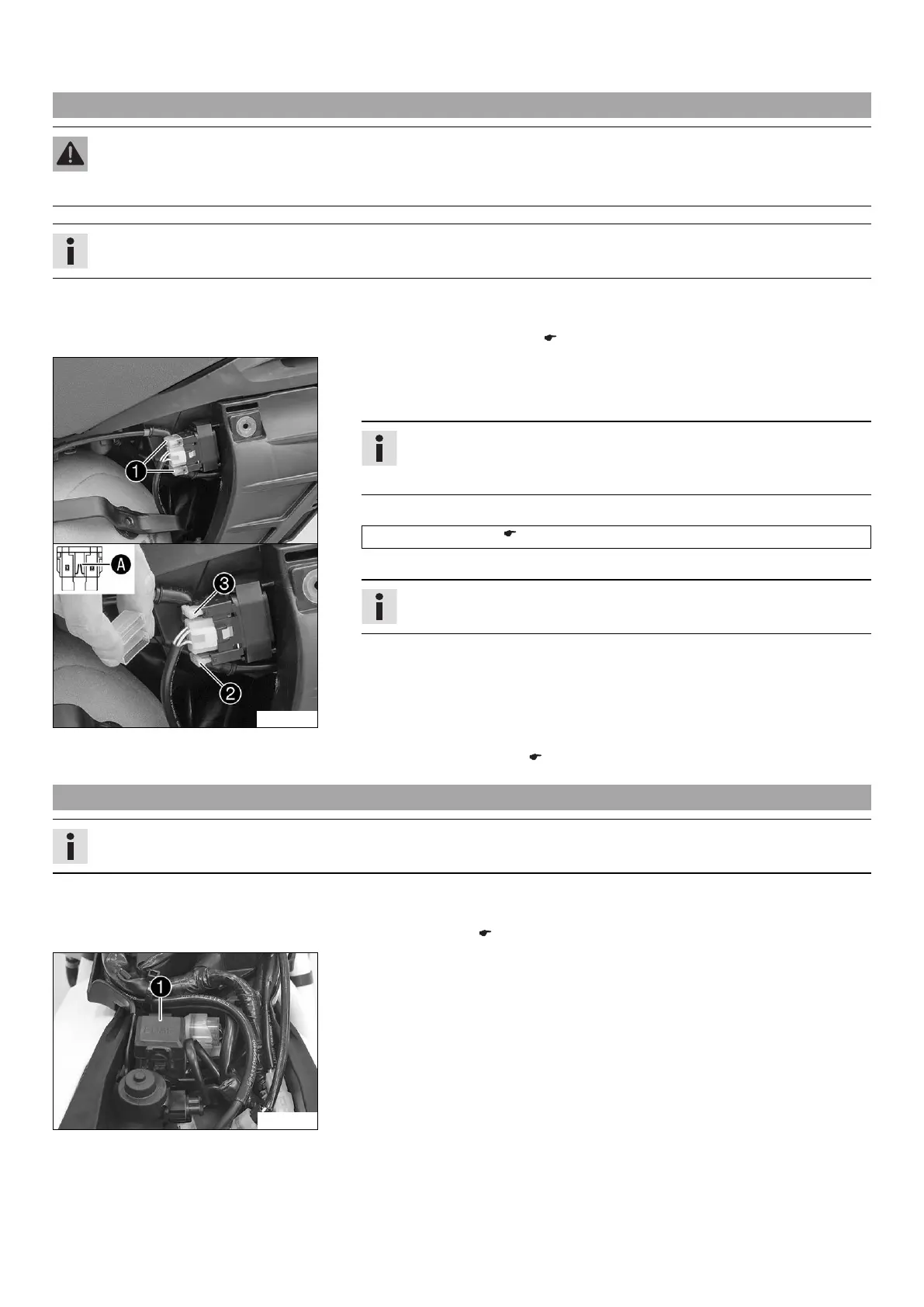

H00205-10
Main work
–
Remove protection caps
.
–
Remove the faulty main fuse
.
Info
A defective fuse can be identified by the burned-out fuse wire
.
A reserve fuse
is located in the starter relay.
– Install a new main fuse.
Fuse (58011109120) ( p. 110)
– Check that the electrical equipment is functioning properly.
Tip
Insert the spare fuse so that it is available if needed.
– Mount the protection caps.
Finishing work
– Install the air filter box lid. ( p. 50)
15.5 Changing the fuses of individual power consumers
Info
The fuse box containing the fuses of individual power consumers is located under the seat.
Preparatory work
– Switch off all power consumers and switch off the engine.
– Remove the seat. ( p. 49)
S00900-10
Main work
–
Open fuse box cover
.
