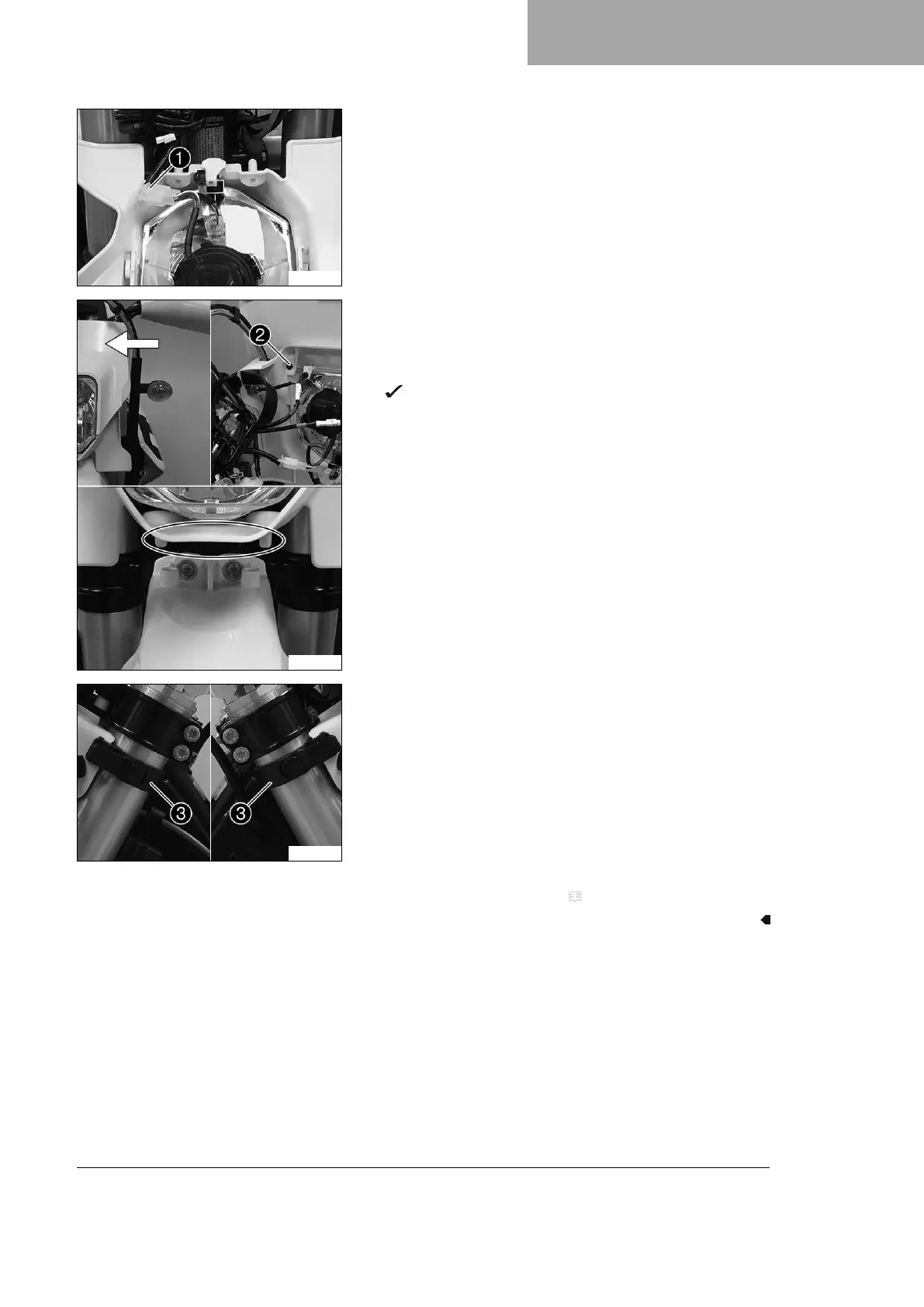

ELECTRICAL SYSTEM 15

117

H03751-11

(FE US)

–

Join plug-in connector

H03752-10

– Position the brake line and the wiring harness in the cable

guide.

–

Mount and tighten screw

– Position the headlight mask.

The holding lugs engage in the fender.

H03749-11

–

Secure the headlight mask with rubber straps

Finishing work

–

Check the headlight setting. ( p. 119)

Table of Contents4
Means of Representation8
Symbols Used8
Formats Used8
Safety Advice 29
Use Definition - Intended Use9
Misuse9
Degrees of Risk and Symbols10
Tampering Warning10
Safe Operation10
Protective Clothing11
Work Rules11
Environment12
Owner's Manual12
Important Notes 313
Manufacturer Warranty, Implied Warranty13
Fuel, Auxiliary Substances13
Spare Parts, Accessories13
Service13
Figures13
Customer Service14
View of Vehicle 415
View of Vehicle, Front Left (Example)15
View of Vehicle, Rear Right (Example)16
Serial Numbers 517
Vehicle Identification Number17
Type Label (All EU Models)17
Key Number (All EU Models)17
Engine Number17
Fork Part Number18
Shock Absorber Article Number18
Controls 619
Clutch Lever19
Hand Brake Lever19
Throttle Grip19
Switch-Off Button19
Horn Button (All EU Models)20
Light Switch (All EU Models)20
Light Switch (FE US)20
Turn Signal Switch (All EU Models)21
Emergency off Switch (All EU Models)21
Start Button21
Combination Switch22
Overview of Indicator Lamps (All EU Models)22
Overview of Indicator Lamps (FE US)23
Opening Fuel Tank Filler Cap23
Closing the Fuel Tank Filler Cap24
Cold Start Button24
Idle Speed Adjusting Screw25
Shift Lever25
Foot Brake Lever26
Side Stand26
Steering Lock (All EU Models)26
Locking the Steering (All EU Models)27
Unlocking the Steering (All EU Models)27
Combination Instrument28
Combination Instrument Overview28
Activation28
Message on the Combination Instrument28
Setting the Combination Instrument28
Adjusting the Kilometers or Miles29
Adjusting the Clock30
Setting the Service Display30
Speed, Time, and DST Distance 131
Speed, Time, and DST2 Distance 231
AVG Average Speed, ART Operating Hours, and ODO Total Distance Covered32
Preparing for Use 833
Advice on Preparing for First Use33
Running-In the Engine34
Starting Power of Lithium-Ion Batteries at Low Temperatures35
Preparing the Vehicle for Difficult Operating Conditions35
Preparing the Vehicle for Riding on Dry Sand35
Preparing the Vehicle for Riding on Wet Sand36
Preparing the Vehicle for Riding on Wet and Muddy Circuits37
Preparing Vehicle for High Temperatures or Slow Riding37
Preparing the Vehicle for Low Temperatures or Snow38
Riding Instructions 939
Checks and Maintenance Measures When Preparing for Use39
Starting the Vehicle39
Activating Traction Control40
Starting off41
Shifting, Riding41
Braking41
Stopping, Parking42
Transporting43
Refueling43
Service Schedule 1045
Additional Information45
Required Work45
Recommended Work46
11 Tuning the Chassis48
Checking the Basic Chassis Setting with Rider's Weight48
Compression Damping of the Shock Absorber48
Adjusting the Low-Speed Compression Damping of the Shock Absorber48
Adjusting the High-Speed Compression Damping of the Shock Absorber49
Adjusting the Rebound Damping of the Shock Absorber50
Measuring the Dimension of the Rear Wheel Unloaded50
Checking the Static Sag of the Shock Absorber51
Checking the Riding Sag of the Shock Absorber51
Adjusting the Spring Preload of the Shock Absorber52
Adjusting the Riding Sag53
Checking the Basic Setting of the Fork53
Adjusting the Compression Damping of the Fork54
Adjusting the Rebound Damping of the Fork54
Adjusting the Spring Preload of the Fork55
Handlebar Position55
Adjusting the Handlebar Position56
Service Work on the Chassis 1257
Raising the Motorcycle with a Lift Stand57
Removing the Motorcycle from the Lift Stand57
Bleeding the Fork Legs57
Cleaning the Dust Boots of the Fork Legs58
Removing the Fork Protector58
Installing the Fork Protector59
Removing the Fork Legs59
Installing the Fork Legs60
Removing the Lower Triple Clamp60
Installing the Lower Triple Clamp61
Checking Steering Head Bearing Play63
Adjusting the Steering Head Bearing Play64
Lubricating the Steering Head Bearing65
Removing Front Fender65
Installing Front Fender66
Removing the Shock Absorber66
Installing the Shock Absorber68
Removing the Seat69
Mounting the Seat70
Removing the Air Filter Box Cover71
Installing the Air Filter Box Cover71
Removing the Air Filter71
Installing the Air Filter72
Cleaning the Air Filter and Air Filter Box72
Removing the Right Side Cover73
Installing the Right Side Cover74
Removing the Main Silencer74
Installing the Main Silencer75
Cleaning the Spark Arrestor (FE US)75
Changing the Glass Fiber Yarn Filling in the Main Silencer77
Removing the Fuel Tank78
Installing the Fuel Tank80
Checking for Chain Dirt Accumulation81
Cleaning the Chain82
Checking the Chain Tension82
Adjusting the Chain Tension83
Checking the Chain, Rear Sprocket, Engine Sprocket, and Chain Guide84
Checking the Frame87
Checking the Link Fork87
Checking Throttle Cable Routing87
Checking the Rubber Grip88
Adjusting the Basic Position of the Clutch Lever89
Checking/Correcting the Fluid Level of Hydraulic Clutch89
Changing the Hydraulic Clutch Fluid90
Removing the Engine Guard91
Installing the Engine Guard92
Brake System 1393
Adjusting the Basic Position of the Hand Brake Lever93
Checking the Brake Discs93
Checking the Front Brake Fluid Level94
Adding the Front Brake Fluid94
Checking the Front Brake Linings95
Changing the Brake Linings of the Front Brake96
Checking the Free Travel of Foot Brake Lever98
Adjusting the Basic Position of the Foot Brake Lever99
Checking the Rear Brake Fluid Level99
Adding Rear Brake Fluid100
Checking the Rear Brake Linings101
Changing the Rear Brake Linings101
Wheels, Tires 14105
Removing the Front Wheel105
Installing the Front Wheel106
Removing the Rear Wheel106
Installing the Rear Wheel107
Checking the Tire Condition109
Checking Tire Pressure109
Checking Spoke Tension110
Electrical System 15111
Removing the 12-V Battery111
Installing the 12-V Battery112
Charging the 12-V Battery114
Changing Main Fuse115
Changing the Fuses of Individual Power Consumers116
Removing the Headlight Mask with the Headlight118
Installing the Headlight Mask with the Headlight118
Changing the Headlight Bulb120
Changing the Turn Signal Bulb (All EU Models)120
Checking the Headlight Setting121
Adjusting the Headlight Range122
Changing the Combination Instrument Battery122
Diagnostics Connector123
16 Cooling System124
Checking the Antifreeze and Coolant Level124
Checking the Coolant Level125
Draining the Coolant125
Refilling with Coolant126
Changing the Coolant127
17 Tuning the Engine128
Checking the Throttle Cable Play128
Adjusting the Throttle Cable Play128
Adjusting the Characteristic Map of the Throttle Response129
Changing the Mapping130
Adjusting the Idle Speed131
Teaching the Throttle Valve Position132
Checking the Basic Position of the Shift Lever132
Adjusting the Basic Position of the Shift Lever133
18 Service Work on the Engine134
Changing the Fuel Screen134
Checking the Engine Oil Level136
Changing the Engine Oil and Oil Filter, Cleaning the Oil Screens136
Adding Engine Oil139
19 Cleaning, Care140
Cleaning the Motorcycle140
Checks and Maintenance Steps for Winter Operation141
20 Storage142
Preparing for Use after Storage143
21 Troubleshooting144
Blink Code 22147
Technical Data 23149
Engine149
Engine Tightening Torques150
Capacities151
Engine Oil151
Coolant151
Fuel151
Chassis152
Electrical System153
Tires153
Fork153
Shock Absorber154
Chassis Tightening Torques154
Substances 24157
Auxiliary Substances 25159
Standards 26161
27 Index of Special Terms162
List of Abbreviations 28163
29 List of Symbols164
Yellow and Orange Symbols164
Green and Blue Symbols164
Index165
