CONTROLS
23

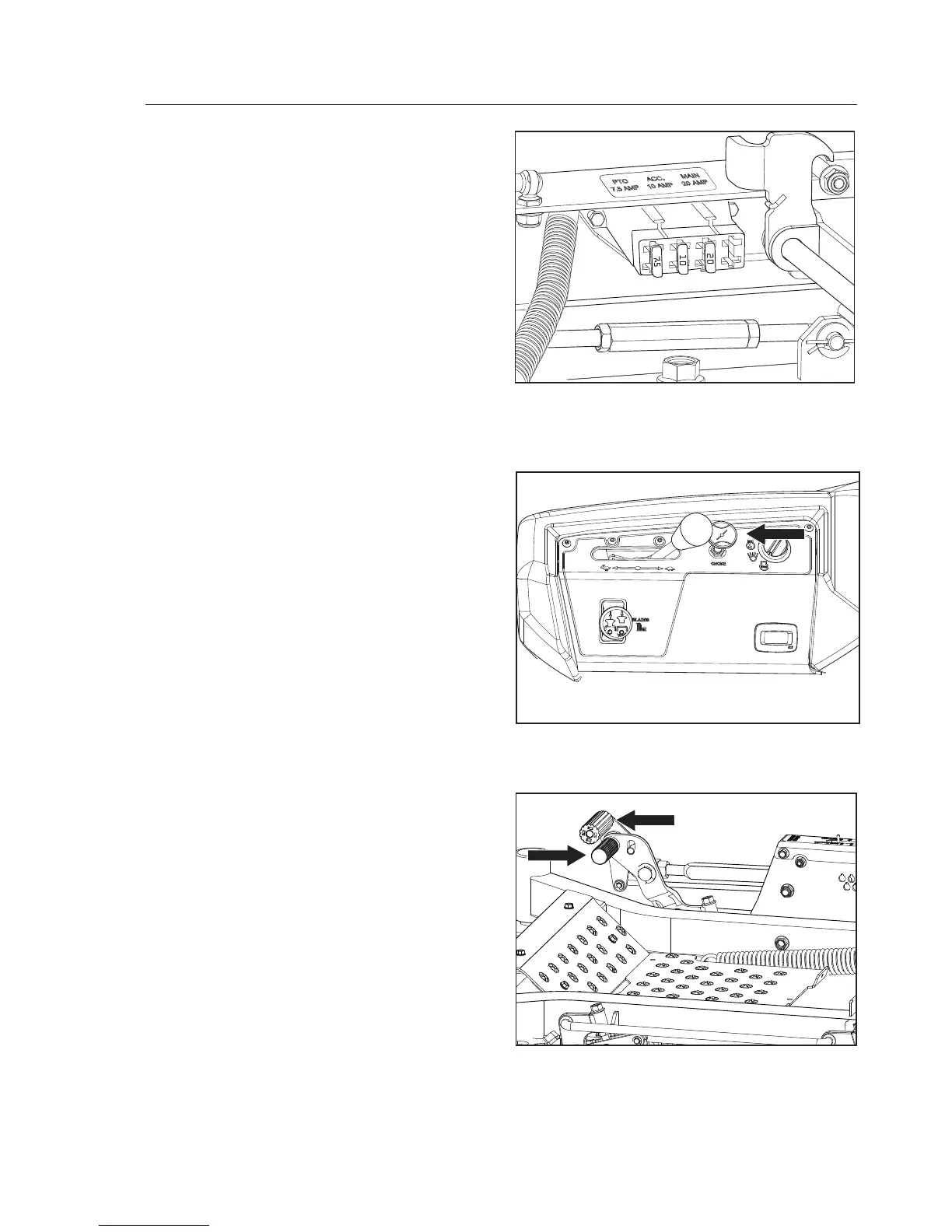

Cutting Height Pedals
The cutting height pedals release the deck lift
to allow setting the desired deck height. Apply
pressure to the lift pedal and rotate foot to also apply
pressure to the release pedal, unlocking the deck
lift.
For transport, push the lift pedal fully forward
until the deck lift latches in the transport (highest)
position.
8065-017
1. Lift pedal
2. Release pedal
Cut height selection pedals
8065-004
Choke control
Choke Control
The choke control is used for cold starts in order to
provide the engine with a richer fuel mixture.
For cold starts the control should be pulled out to its
extent.
Fuses
Fuses are located on the right hand side of the
machine. They are accessed by tilting the seat
forward. Fuses are flat pin fuses type as used in
automobiles.
There are three fuses with ratings and functions:
1. 20 A, Primary fuse.
2. 7.5 A, Mower deck coupling.
3. 10 A, Accessories
8011-420
Fuses
