Parking brake adjustment

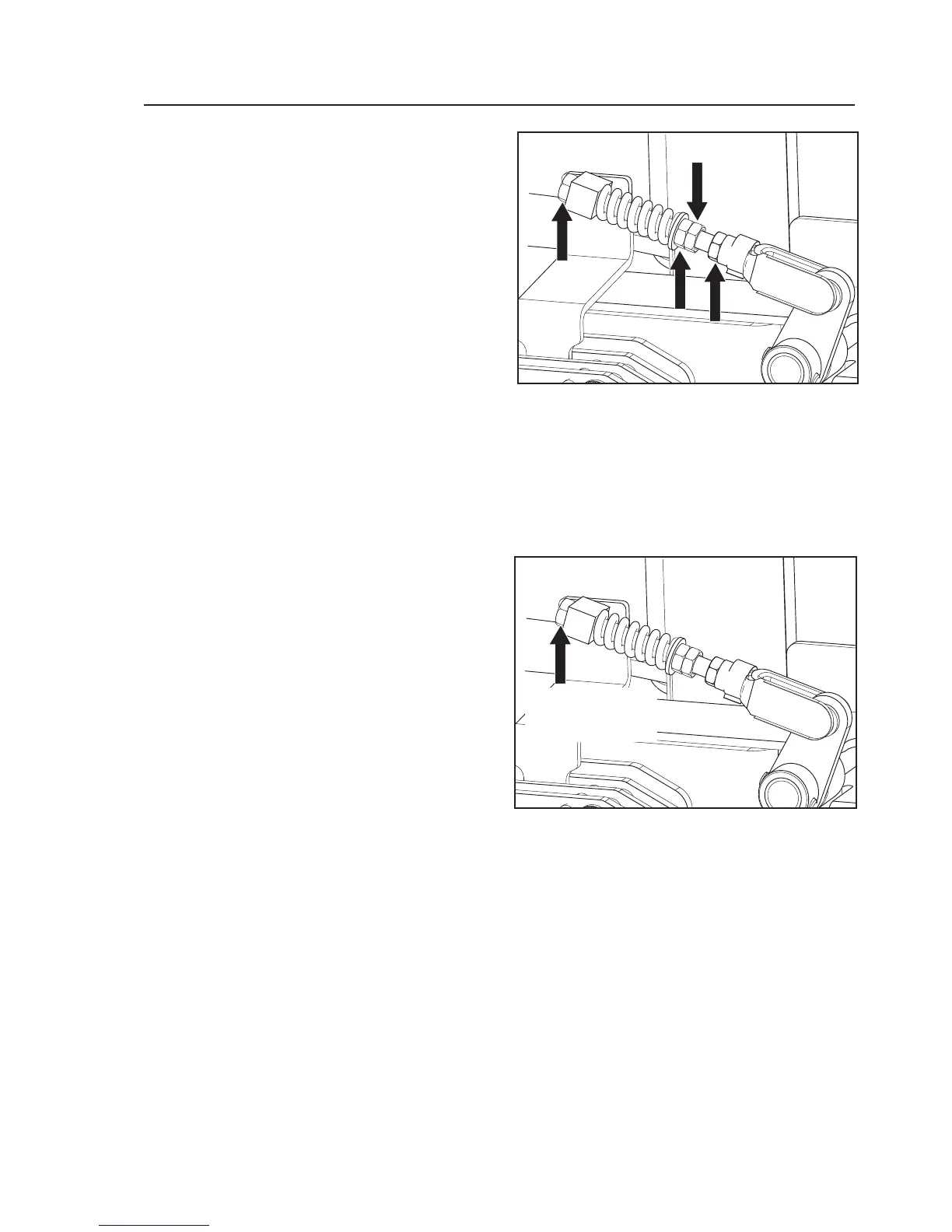

5. If adjustments are needed, loosen B jam nut
and turn A jam nut until the correct distance
is achieved. Retighten B jam nuts against A
jam nuts.
6. Engage the park brake. Measure the distance
between the D brake bolt and the brake
swivel. The distance should be
1
/8"-¼".
7. If adjustments are needed, loosen C jam
nut. Turn the brake bolt until the distance is
correct. Retighten C jam nuts.
8065-049
Measure gap
V-belts
Check every 100 hours of operation. Check for
severe cracking and large nicks.
NOTE: The belt will show some small cracks in
normal operation.
