English-44
REPAIR INSTRUCTIONS
Removing/Fitting the Cable Pulley
1. Remove the frame plate and skid guard
under the machine.
2. Loosen the steering cables’ rear mount (1).
3. Remove the screw (2) and remove the cable
pulley (5).
4. Remove the bearing’s circlip (3) and tap out
the bearing (4).
5. To fit the cable pulley, follow the instructions
in the reverse order.
The screw (2) is to be mounted in the rear hole
on the frame. The bushing (6) is to be placed
between the frame and the cable pulley.
Ensure that the cables are properly situated
under the steering cable rollers (7) in the
frame tunnel.
Hold the cables with, for example, an
adjustable wrench when mounting so that
they do not twist.
After mounting, the cable tension should be
checked, see ”Remove the frame plate by
loosening the screws (two on the power steering
housing).” on page 42.
Ensure that the steering wheel is in the centre
position when the rear wheels are centred. Re-
set the chain on the power steering sprocket or
adjust the rear fixture for the steering cables (1)
as needed.

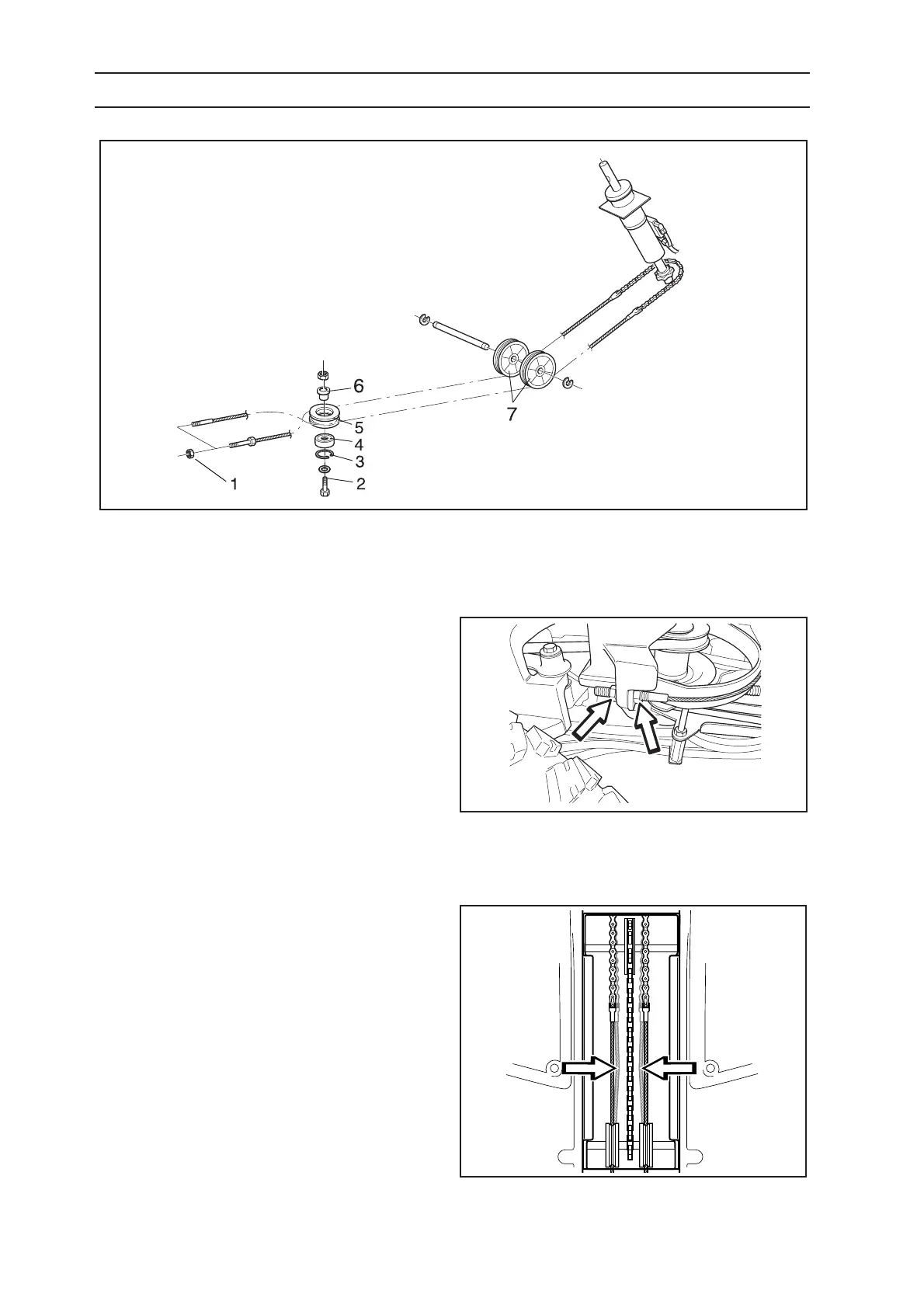

Steering cables and cable pulley
Steering cable’s rear mount, right-hand side
Steering cable tension
