34

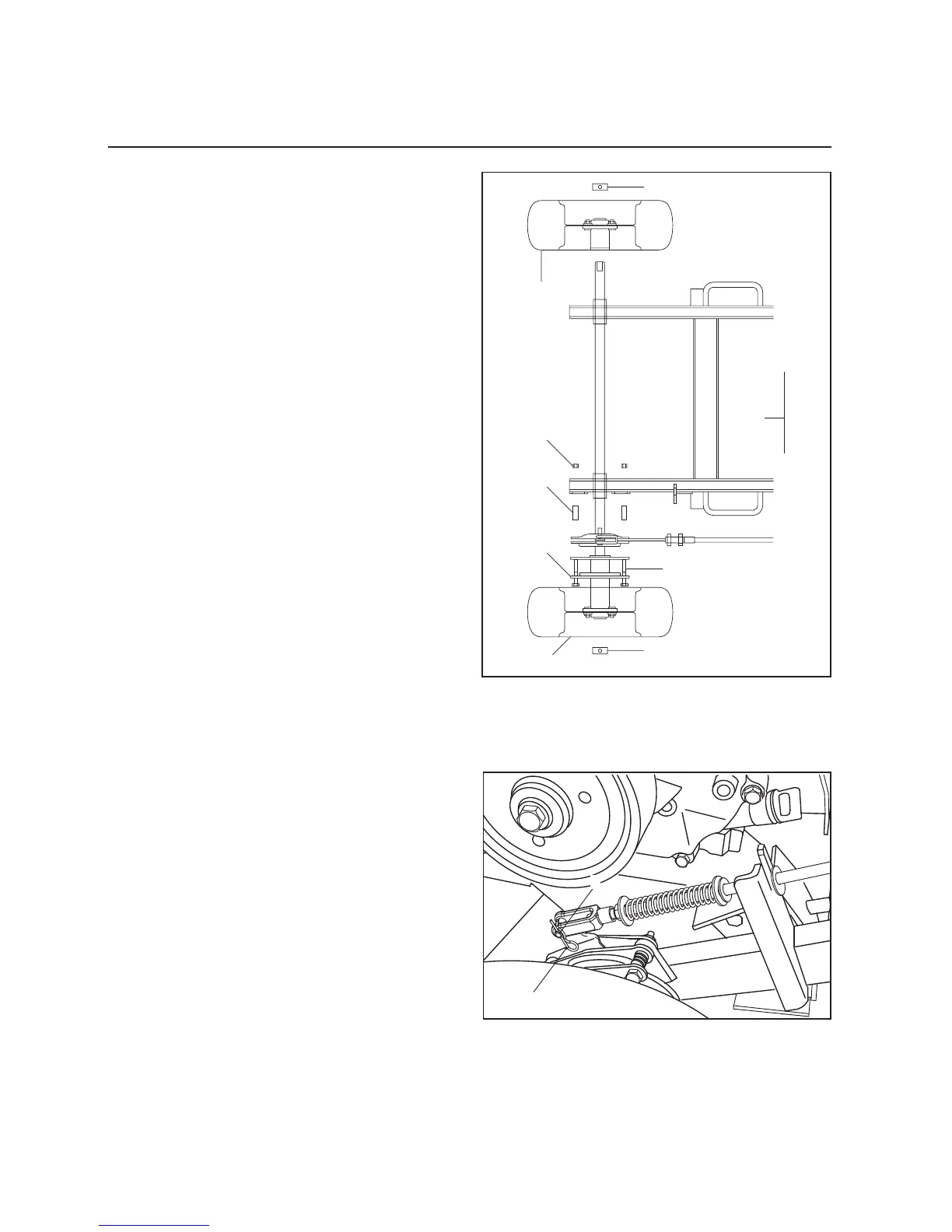

Removing/Refitting Wheels
Left Wheel
To remove the left wheel (1) from the stump grinder,
remove the locking collar (2), the ¼" screws (3), the
¼" hex nuts (3), the springs (4) and the brake pad (5).
The wheel can now be removed from the axle.
Right Wheel
To remove the right wheel (6), remove the locking
collar (7) and slide the wheel off the axle.
8011-217c
LEFT
RIGHT
FRONT
7
3
4
5
6
1
2
3
Brake Adjustment
The overcenter-type handle activates the brakes.
Undo clevis pin from brake and turn clockwise to
tighten brake or counter clockwise to loosen.
Tighten so handle snaps down when locked but
unlocks easily when handle is moved forward. Brake
is properly adjusted when wheel will not turn when
you try to push or pull unit.
1
2
8060-041
1. Clevis pin
2. Hair pin
