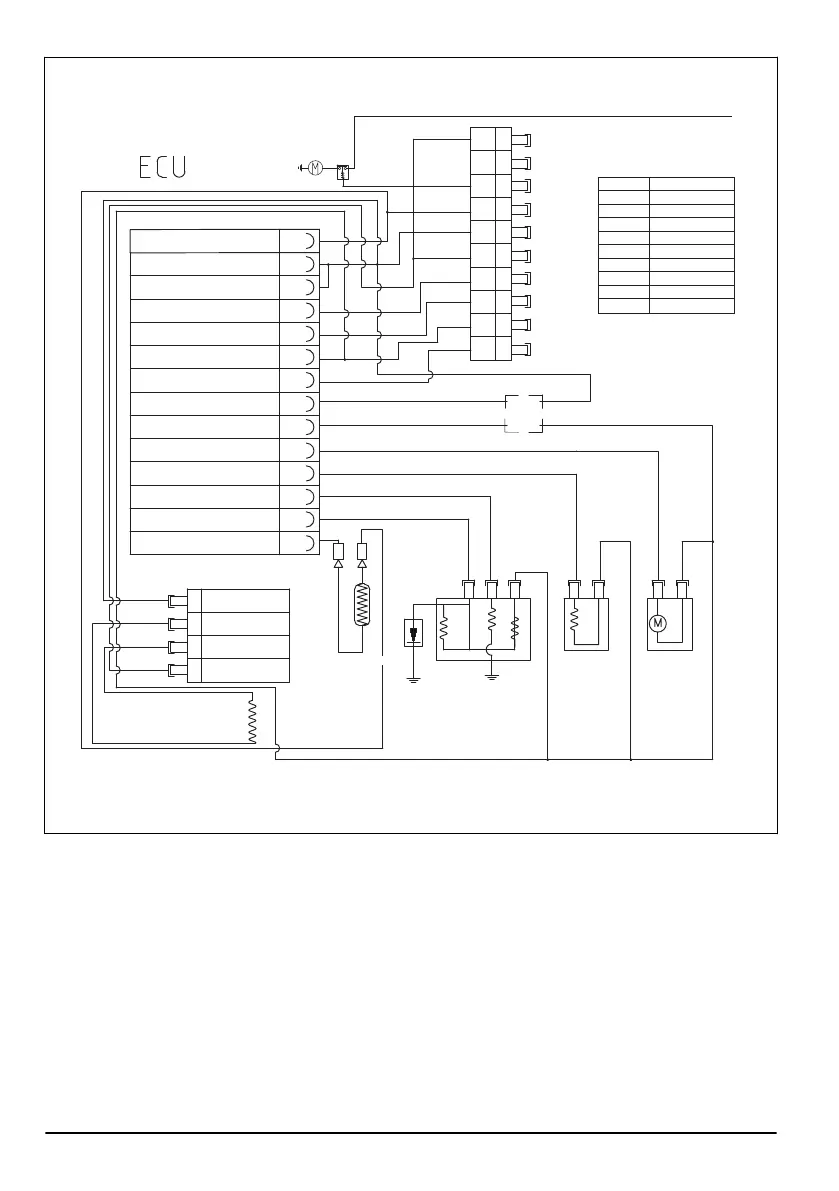

Husqvarna ST 430 - Engine Harness Diagram

TROTTLE SIGNAL GROUND
ECU GROUND
IGNITION GROUND
ENGING STOP SIGNAL- GROUNDED
ANALOG THROTTLE SIGNAL (0-5v)
ECU SWITCH
FAILURE LIGHT DRIVE
CAN PROTOCOL L
CAN PROTOCOL H
FUEL PUMP
INJECTOR
CRANKSHAFT POSITION SENSOR
IGNITION
CRANKCASE TEMP SENSOR
REGULATOR (POWER MODULE)
CHARGING COIL
SPARK PLUG
RPM IGNITION COIL
INJECTOR FUEL PUMP
RED/WHT
PNK
BLK/WHT
GRN
RED/WHT
RED/WHT
BRN
ORN
RED/BLK
WHT
GRN/BLK
GRN
GRN/WHT
DIAGNOSTIC CONNECTOR
START MOTOR
4
10
ENGINE HARNESS
20
14
3
5
7
1
12
22
9
11
18
2
2
3 GND
AC
AC
14.6V
12V/12A
1
4
4 1
3 2
PNK PINK
BROWN
BLACK & WHITE
RED & BLACK
ORANGE
GREEN & BLACK
WHITE
GREEN
BRN
BLK/WHT
ORN
RED/BLK
RED & WHITERED/WHT
GRN/BLK
WHT
GRN
GREEN & WHITEGRN/WHT
5
11
1
8
12
6
10
2
4
3
CRANKCASE TEMP SENSOR
