CONTROLS 6
15

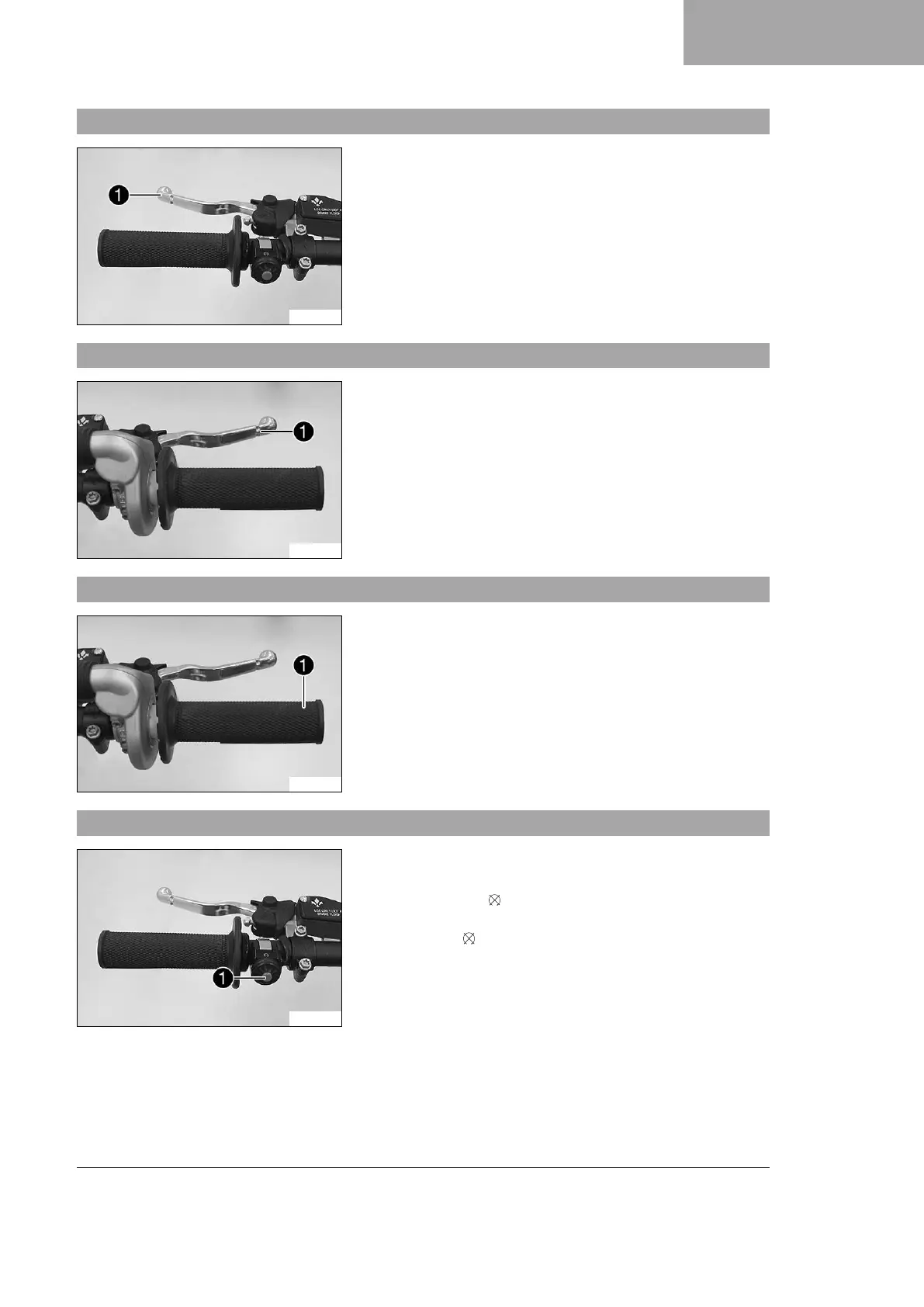

6.1 Clutch lever
S04274-10
Clutch lever
1
is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
6.2 Hand brake lever
S04275-10
The hand brake lever
1
is fitted on the right side of the handle-
bar.
The front brake is engaged using the hand brake lever.
6.3 Throttle grip
S04275-11
Throttle grip
1
is fitted on the right side of the handlebar.
6.4 Stop button
S04274-11
The stop button
1
is fitted on the left side of the handlebar.
Possible states
• The stop button is in the basic position – In this position,
the ignition circuit is closed and the engine can be started.
• Stop button pressed – In this position, the ignition circuit
is interrupted, a running engine stops, and a non-running
engine will not start.
