Husqvarna TE 250 Workshop Manual

F.9Part. N. 8000 B0148 (02-2008)
ENGINE DISASSEMBLY

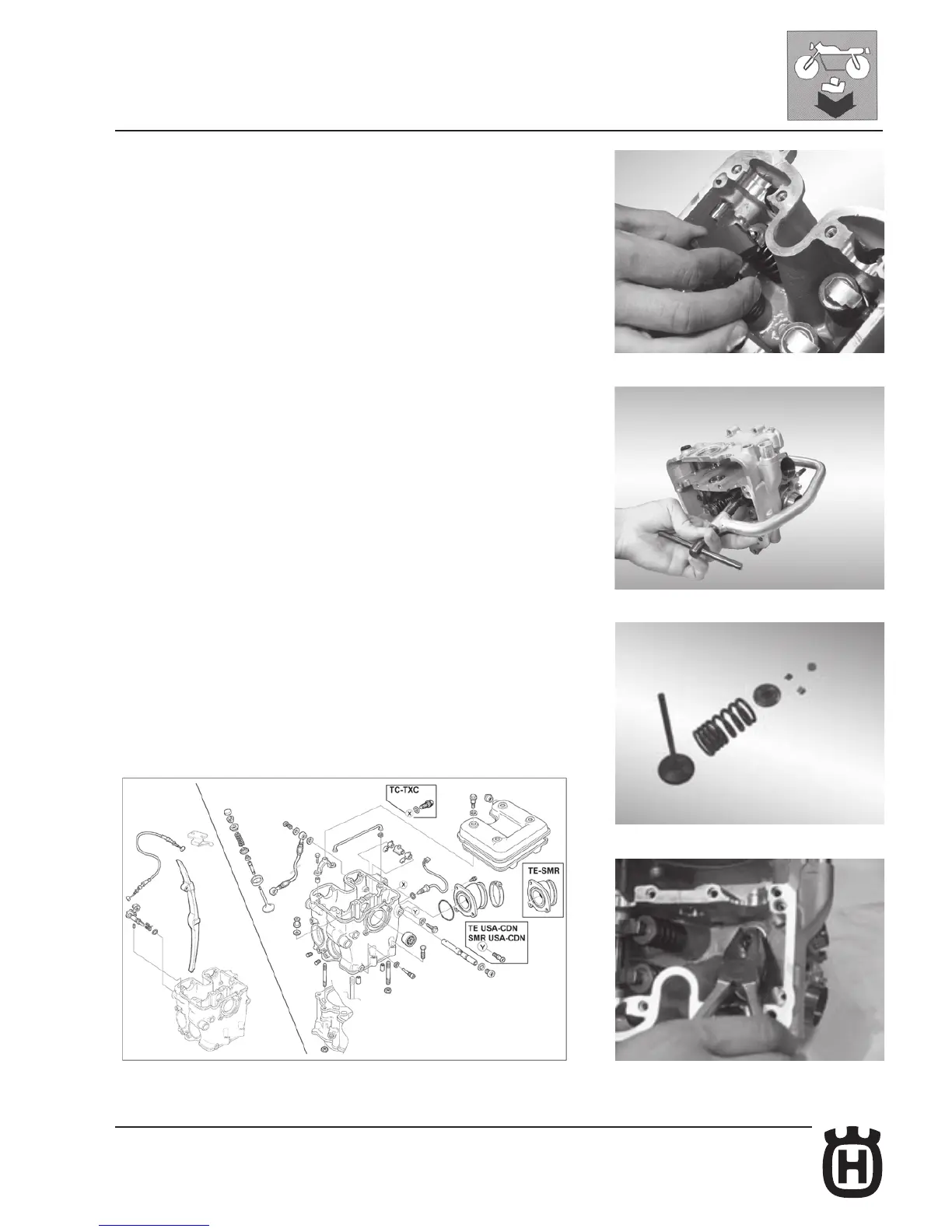

Using a tweezer, remove the valve adjusting pads.
Use a valve spring compressor tool to remove the valves. Be careful not to
damage the gasket surfaces or the combustion chamber.
Make sure that the valve spring compressor is always straight, otherwise the
valve stem can bend.
To prevent loss of tension, do not compress the valve springs more than
necessary. Mark all parts, so that they can be reassembled correctly.
If the valve cotters have made a burr on the valve stem, remove it before removing
the valve.
Remove the sealing gaskets from the valve guides.
Remember to replace the gaskets with new ones when reassembling.

Husqvarna TE 250 Specifications

General

Displacement	249 cc
Transmission	6-speed
Cooling System	Liquid
Starter	Electric
Front Suspension	WP XPLOR 48
Front Brake	Disc brake
Rear Brake	Disc brake
Bore x Stroke	66.4 mm x 72 mm
Engine Type	2-Stroke
