Husqvarna TE 250 Workshop Manual

L.2 Part. N. 8000 B0148 (02-2008)
BRAKES

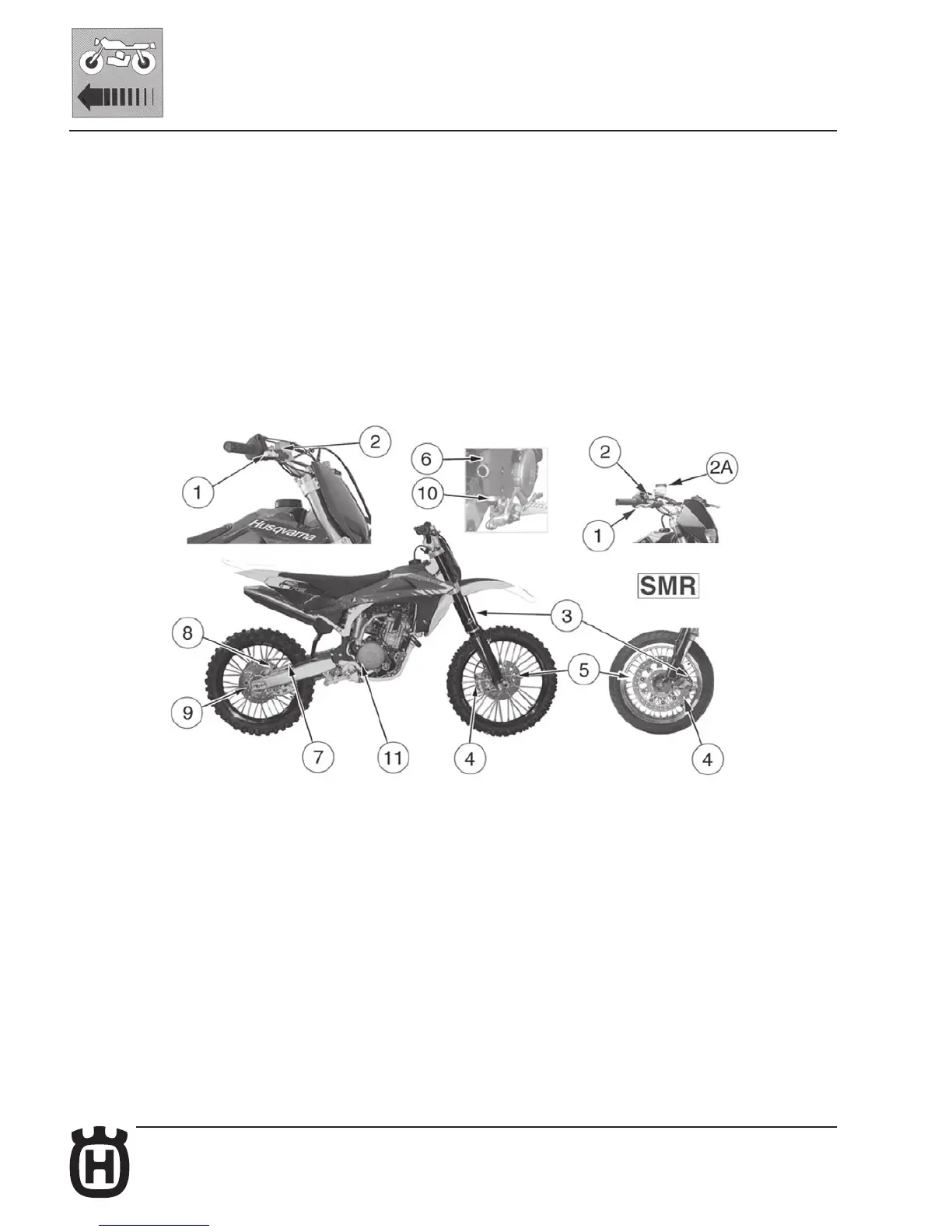

1. Front brake control lever
2. Front brake pump with oil reservoir (TE, TC)
2. Front brake pump (SMR)
2A. Oil reservoir (SMR)
3. Front brake hose
4. Front brake caliper
5. Front brake disc
6. Rear brake oil tank
7. Rear brake hose
8. Rear brake caliper
9. Rear brake disc
10. Rear brake pump
11. Rear brake control pedal
Braking system ......................................................... L.2
Brake disc ................................................................. L.4
Wear check and brake pads replacement ................. L.5
Front braking system bleeding (TE-TC-TXC) ............ L.6
Front braking system bleeding (SMR) ....................... L.7
Rear braking system bleeding ................................... L.8
Fluid replacement ..................................................... L.9
BRAKING SYSTEM
The braking systems is divided into two completely independent circuits.Each system is provided with a caliper connected to a hydraulic
control pump with tank for the fluid.
TE-TC-TXC-SMR

Husqvarna TE 250 Specifications

General

Displacement	249 cc
Transmission	6-speed
Cooling System	Liquid
Starter	Electric
Front Suspension	WP XPLOR 48
Front Brake	Disc brake
Rear Brake	Disc brake
Bore x Stroke	66.4 mm x 72 mm
Engine Type	2-Stroke
