1
4
4
3
5
5
6
1
2
A
45 mm
6
SPECIFICATIONS - OPERATION - MAINTENANCE
EN - 34

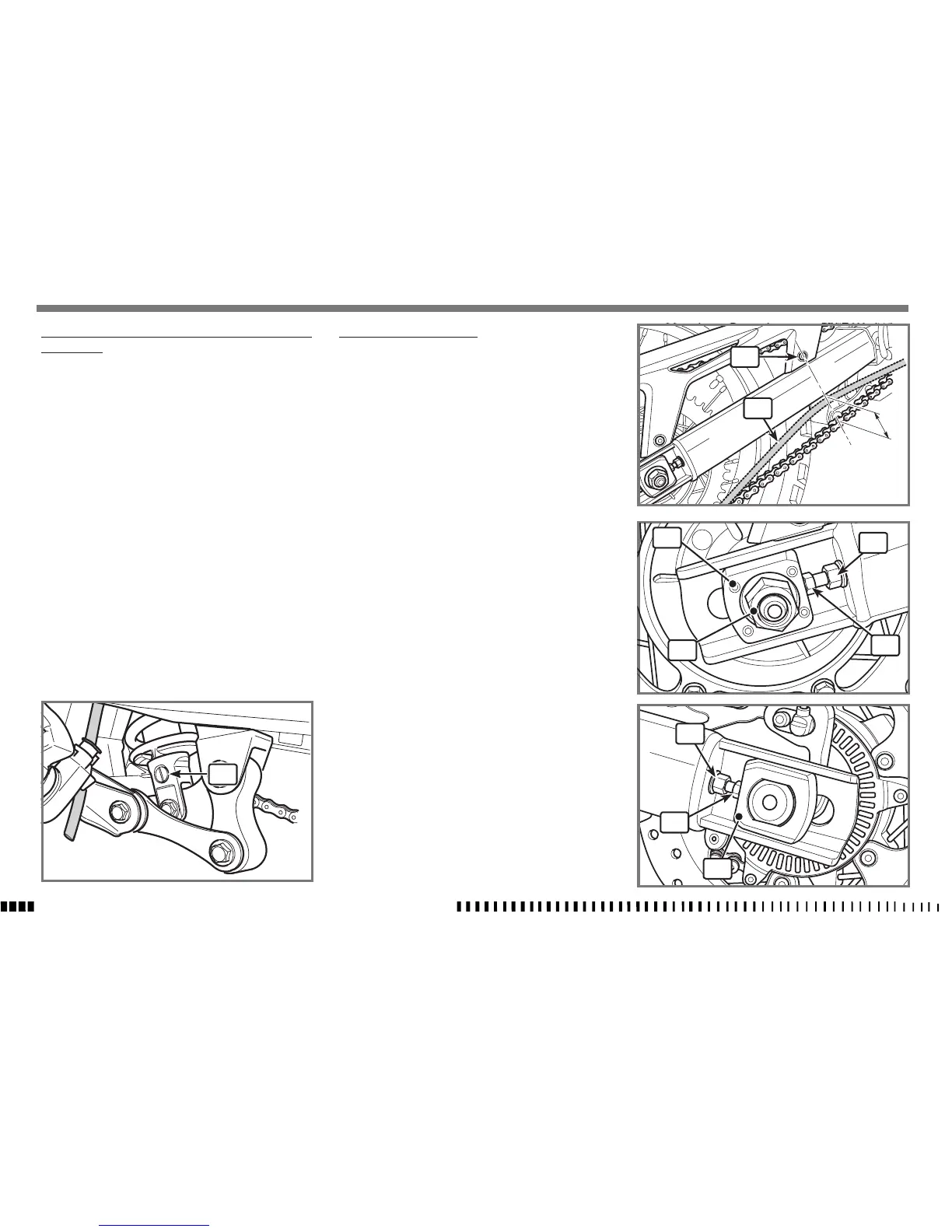

REBOUND SHOCK ABSORBER HYDRAULIC DAMPING
ADJUSTMENT
It is possible to adjust the rebound travel of the shock
absorber.
B) REBOUND - Standard setting:
- 11 clicks
(adjuster 1)
To reset the standard setting, turn lower adjuster (1)
clockwise until reaching fully closed position. Then turn it
back the number of clicks specified above.
In order to obtain a smooth braking action, turn the ad-
juster counter clockwise. Vice versa to obtain a harder
braking action.
CHAIN TENSION ADJUSTMENT
Chain should be checked, adjusted and lubricated as per
the Maintenance Chart to ensure safety and prevent ex-
cessive wear.
If the chain becomes badly worn or is adjusted incorrectly
(i.e., it is too loose or too tight), it could jump out of the
sprocket or break.
- Position the motorcycle on the side stand so the chain is
not stressed and loaded;
- where the screw (1) is located, lift the chain (2) up-
wards and measure the chain travel.
- the correct setting must be 45 mm (1.77 in).
If this is not the case, proceed as follows:
- make sure that the motorcycle is fully upright on the
special rear support stand (optional).
- on the right side, loosen the locking nut (3) of the
wheel axle;
- loosen the check nuts (4) on both chain tensioners;
- turn the adjuster screws (5) to obtain the correct ten-
sion and check on both sides that the wheel centring
sliders (6) are in the same position as the markings in
the chain tensioner slider seats on the swinging arms;
- once adjusted, tighten the check nuts (4) and the wheel
axle nut (3).
After adjusting, always check that distance "A" is 45
mm (1.77 in).
