1. Stop the product. Refer to
To stop the product on
page 14
.
2. Fold the seat forward.

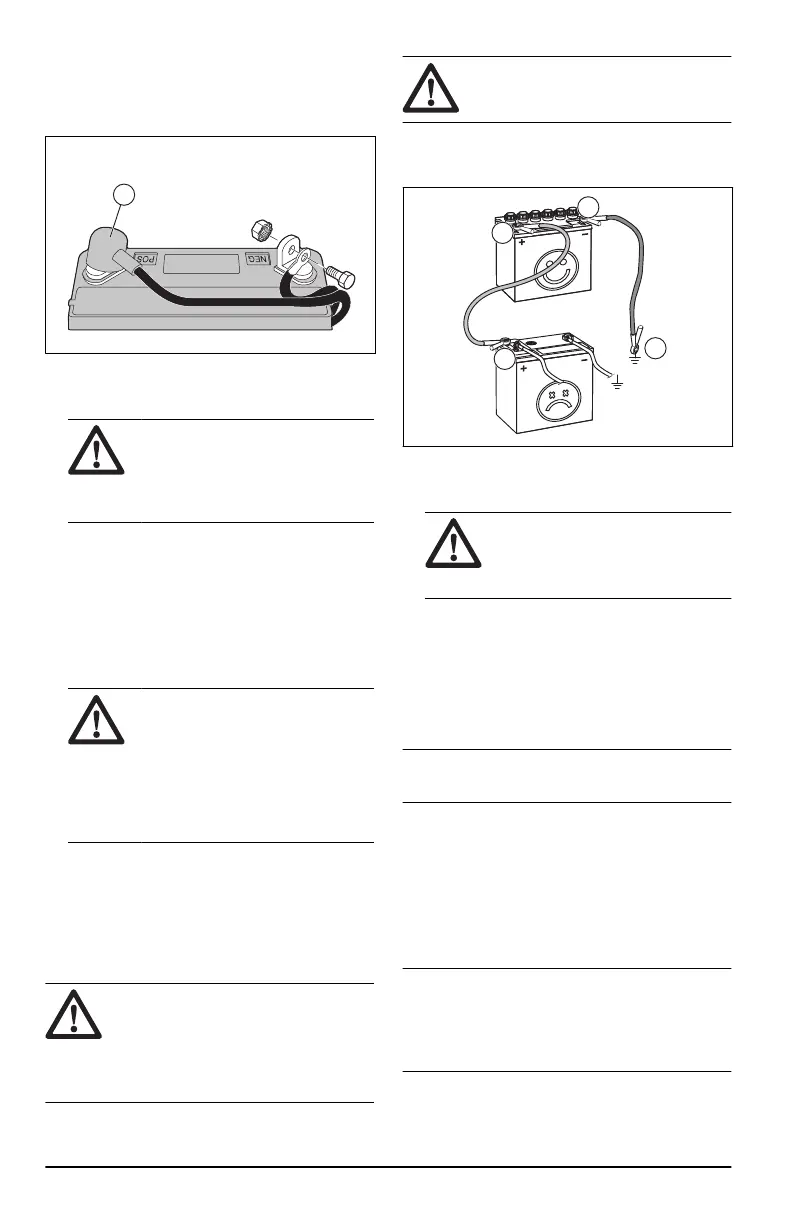

3. Remove the terminal covers (A).
4. Remove the bolt and the nut to disconnect the
black (negative) battery cable from the negative
(-) terminal.
WARNING: Risk of electrical
shock and burn injuries. The black
(negative) battery cable must be
disconnected before you disconnect
the red (positive) battery cable.
5. Remove the bolt and the nut to disconnect the
red (positive) battery cable from the positive (+)
terminal.
6. Carefully remove the battery from the product.
7. Install a new battery.
8. Connect the red (positive) battery cable to the
positive (+) terminal and tighten the bolt and the
nut.
WARNING:
Risk of electrical
shock and burn injuries. The red
(positive) battery cable must be
connected to the positive (+) terminal
before the black (negative) battery
cable is connected to the negative
(-) terminal to prevent injury and
accidental grounding.
9. Connect the black (negative) battery cable to the
negative (-) terminal and tighten the bolt and the
nut.
10. Install the terminal covers.
11. Fold the seat rearward.
To connect the jumper cables
WARNING:
Risk of explosion
because of explosive gas that comes
from the battery. Do not connect the
negative terminal of the charged battery
to or near the negative terminal of the
weak battery.
CAUTION: Do not use the battery of
your product to start other vehicles.
1. Connect one end of the red battery cable to the
POSITIVE (+) battery terminal (A) on the weak
battery.
2. Connect the other end of the red battery cable
to the POSITIVE (+) battery terminal (B) on the
charged battery.
WARNING: Do not let the ends
of the red battery cable touch the
chassis. This will cause a short
circuit.
3. Connect one end of the black battery cable to
the NEGATIVE (-) battery terminal (C) on the
charged battery.
4. Connect the other end of the black battery cable
to a CHASSIS GROUND (D), away from the fuel
tank and the battery.
To remove the jumper cables
Note:
Remove the jumper cables in the opposite
sequence to how you connect them.
1. Remove the BLACK cable from the chassis.
2. Remove the BLACK cable from the fully charged
battery.
3. Remove the RED cable from the 2 batteries.
Cutting deck
To remove and install the cutting deck
Note:
If an accessory other than the cutting deck
is to be used, the front link and the rear lift links must
be removed from the product. Also, the clutch cable
spring must be put into the cable guide on the front
edge of the lower dash.
1. Disengage the cutting deck. Refer to
To engage
and disengage the cutting deck on page 15
.
22
2007 - 004 - 10.04.2023
