REFRIGERATION DATA
Note: This data is based on store temperature
and humidity that does not exceed 75°F and
55% R.H.
FF IC
Discharge Air (°F) –5 –12
Evaporator (°F) –11 –19
Unit Sizing (°F) –14 –22
Btu/hr/Door* FF IC
Parallel
1300 1370
Conventional
1325 1400
*Optional LED lighting reduces refrigeration
load by 100 Btu/hr/Door.
DEFROST DATA
FF IC
Frequency (hr) 24 24
Defrost Water (lb/Dr/day) 1.2 1.2
(± 15% based on case configuration and
product loading.)
E
LECTRIC
FF IC
Temp Term (°F) 48° 48°
Failsafe (minutes) 45 45
G
AS
Duration (minutes) 20 20
O
FFTIME
Not Recommended
CONVENTIONAL CONTROLS
Low Pressure Backup Control
FF IC
CI/CO (Temp °F)** –18°/ –34° – 26°/ –45°
Indoor Unit Only, Pressure Defrost
Termination (Temp °F)**
Not Recommended
**Use a Temperature Pressure Chart to
determine PSIG conversions.
PHYSICAL DATA
Drip Pipe (in.) 1
1
/4
Liquid Line (in.)
3
/8
Suction Line (in.)
7
/8
Estimated Charge (lb)***
2Dr 1.8
3Dr 2.7
4Dr 3.6
5Dr 4.6
***This is an average for all refrigerant types.
Actual refrigerant charge may vary by
approximately half a pound.
Length Added to Lineup by each
Standard End (in.) 2
Optional End with Window (in.) 1
1
/2
Optional Partition (in.) 1
1
/2
3 of 6P/N 0435490_G
HUSSMANN CORPORATION • BRIDGETON, MO 63044-2483 U.S.A. • WWW.HUSSMANN.COM
Narrow Reach-in 2, 3, 4 and 5 Door Models
INNOVATOR Doors Standard
NSF Certification: These merchandisers are manufactured to meet
ANSI/National Sanitation Foundation (NSF
®
) Standard #7 requirements.

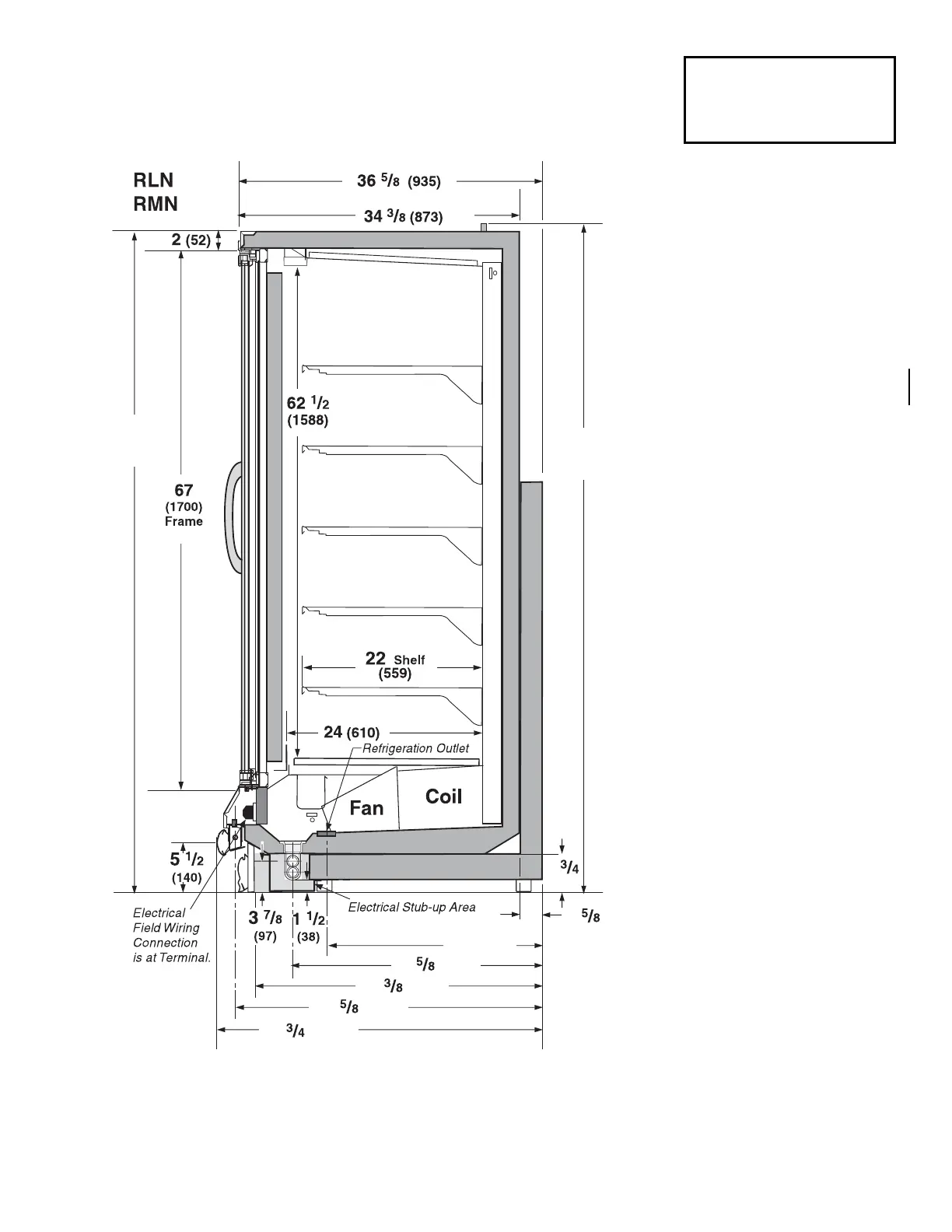

Dimensions shown as in. & (mm).
Impact RLN
With INNOVATOR Doors
Frozen Food & Ice Cream
