2-4 ELECTRICAL / REFRIGERATION
P/N 9FQ-6-P110-075-00_B U.S. & Canada 1-800-922-1919 • Mexico 01 800-890-2900 • www.hussmann.com

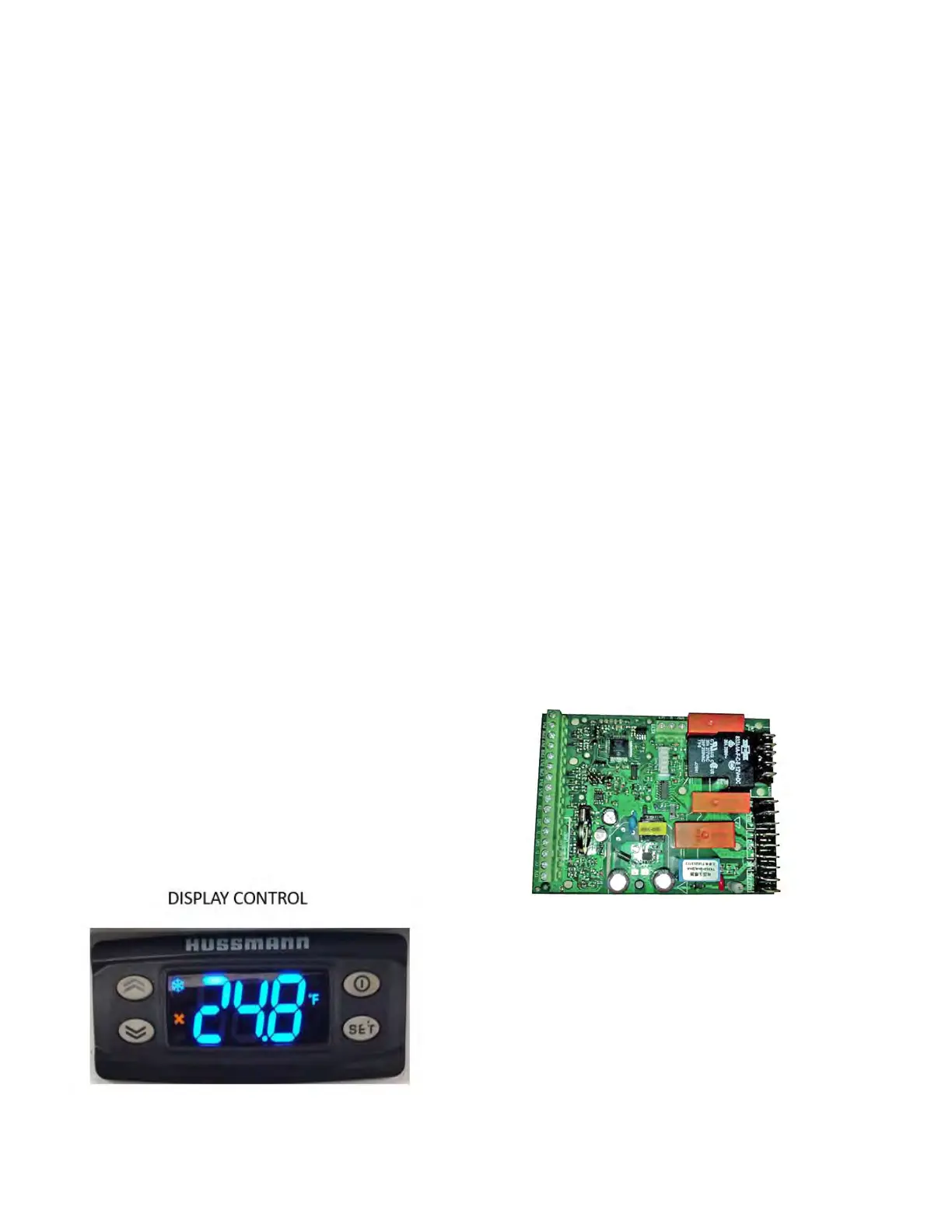

CONTROLLER OPERATION
The electronic controller is located in the cas-
sette compartment. The controller comes factory
set, and is ready for use. The front grille must
be removed in order to access this control.
When removing the grille for this operation or
for condenser cleaning, care must be taken not
to damage the display interface cable. It may
be unplugged during this task.
1. Plug the merchandiser plug into its receptacle.
a. The controller display will illuminate.
b. The interior light will illuminate.
2. After the control preprogrammed time delay
of up to 6 minutes, the compressor and evap-
orator fan(s) will start if the control is calling
for cooling.
3. The control will cycle the compressor but
may also cycle evaporator fan(s) on and off
determined by the Set-Point and Differential
temperatures.
a. The Set-Point is the adjustable
preprogrammed temperature.
b. The Differential is the non-adjustable pre
programmed temperature.
c. The Control is designed to read and
display a cabinet temperature not a product
temperature.
This cabinet temperature may reect the
refrigeration cycle of the Set-Point and its’
Differential. The most accurate temperature
on a cabinets operation is to verify the product
temperature.
Main Features:
• Panel-mounted
• Energy saving algorithms and optimised
defrost control
• 8 preloaded applications
• Defrost at single / double evaporator
• Frame Heater
• Local network auto-conguration
• Direct load connection (up to 2 HP)
• Supply voltage control LVD
• Presence of an open collector output
