Hussmann microSC MDN-BA - Page 38

84553495
130B / 1 / 01
MDN4775
Item Part Number Description Qty per case
1 3089734C LED-ES ULTRA CNPY 48IN 4000K
1
2 3074549 SWITCH-TGL SPST 15A 125V mfg.1NT91-2
1
3 9FQ0422034100 COIL-MDN47 438-4-6-36.5
1
4 3037649A CAPILLARY-TUBE.054INIDX130INLG
2
5 9FQ2136058302 PAINTED BLACK EXTER PANEL MDN 47
1
6 9FQ0413034200 CONDENSER 30IN X 8.5IN DOUBLE C
1
7 3119618A FILTER DRIER R-290 0.25 ODF
2
8 3082149A BLADE-FAN 8 IN CCW
3
9 3082147 MOTOR-13W 70-264V NSC
3
10 4FL2422022000 EVAPORATOR
1
11 4FL2422022500 EVAPORATOR
1
12 3117868A POWER SUPPLY - 4A 24V 96W
1
13 3023537B CONTROL-ELIWELL RTN400
1
14 3023554B SENSOR-NTC 4 METER GREEN
1
15 3031571A SENSOR-NTC 4 METER ORANGE
1
16 3023553D CONNECTOR-5 MTS CABLE CO000227
1
17 9FQ4F30002000 EMC FILTER RSEL2002A
1
18 9FQ4S20001900 RELAY DPDT 30ANO_10aNC 230VAC
2
19 3038707A SWITCH-TGL DPST 15A mfg.2NT91-2
1
20 9FQ0423036300A FAN PACK CONNECTOR AS
1
21 9FQ0039012102 SHELF BLACK KIT ASSY
5
22 9FQ2224009302 INNER GLASS BLACK
1
23 9FQ2224009402 INNER GLASS BLACK
1
24 9FQ2140062402 PAINTED BLACK PAINTED EXTER TOP
1
25 9FQ2129060202 PAINTED BLACK EXTER COVER MDN L
1
26 9FQ2129060302 PAINTED BLACK EXTER COVER MDN R
1
27 9FQ0022030802 PAINTED BLACK DECK PAN ASSY MDN 45
1
28 9FQ2136048202 PAINTED BLACK EXTER PANEL 4FT R290
1
29 3023552B CONTROL-DSPL KDE
1
30 9FQ2180004702 PAINTED BLACK TRIM
2
31 9FQ2460062100 COMPRESSOR NT2160U 208V R290 3/4HP
2
Material
Plant/Usage/Alt.
Description

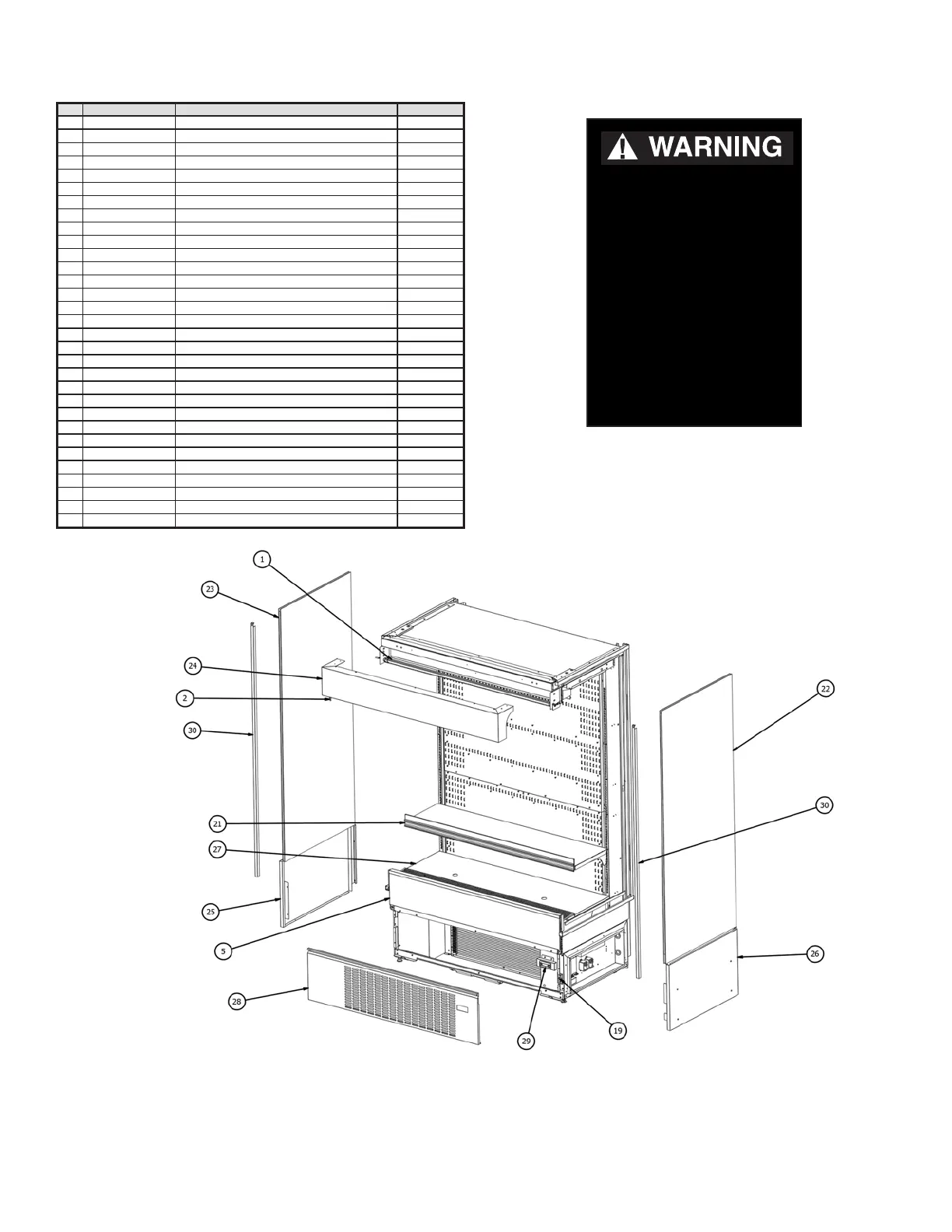

MDN 4775 Replacement Parts List
84553495
130B / 1 / 01
MDN4775
Item Part Number Description Qty per case
1 3089734C LED-ES ULTRA CNPY 48IN 4000K
1
2 3074549 SWITCH-TGL SPST 15A 125V mfg.1NT91-2
1
3 9FQ0422034100 COIL-MDN47 438-4-6-36.5
1
4 3037649A CAPILLARY-TUBE.054INIDX130INLG
2
5 9FQ2136058302 PAINTED BLACK EXTER PANEL MDN 47
1
6 9FQ0413034200 CONDENSER 30IN X 8.5IN DOUBLE C
1
7 3119618A FILTER DRIER R-290 0.25 ODF
2
8 3082149A BLADE-FAN 8 IN CCW
3
9 3082147 MOTOR-13W 70-264V NSC
3
10 4FL2422022000 EVAPORATOR
1
11 4FL2422022500 EVAPORATOR
1
12 3117868A POWER SUPPLY - 4A 24V 96W
1
13 3023537B CONTROL-ELIWELL RTN400
1
14 3023554B SENSOR-NTC 4 METER GREEN
1
15 3031571A SENSOR-NTC 4 METER ORANGE
1
16 3023553D CONNECTOR-5 MTS CABLE CO000227
1
17 9FQ4F30002000 EMC FILTER RSEL2002A
1
18 9FQ4S20001900 RELAY DPDT 30ANO_10aNC 230VAC
2
19 3038707A SWITCH-TGL DPST 15A mfg.2NT91-2
1
20 9FQ0423036300A FAN PACK CONNECTOR AS
1
21 9FQ0039012102 SHELF BLACK KIT ASSY
5
22 9FQ2224009302 INNER GLASS BLACK
1
23 9FQ2224009402 INNER GLASS BLACK
1
24 9FQ2140062402 PAINTED BLACK PAINTED EXTER TOP
1
25 9FQ2129060202 PAINTED BLACK EXTER COVER MDN L
1
26 9FQ2129060302 PAINTED BLACK EXTER COVER MDN R
1
27 9FQ0022030802 PAINTED BLACK DECK PAN ASSY MDN 45
1
28 9FQ2136048202 PAINTED BLACK EXTER PANEL 4FT R290
1
29 3023552B CONTROL-DSPL KDE
1
30 9FQ2180004702 PAINTED BLACK TRIM
2
31 9FQ2460062100 COMPRESSOR NT2160U 208V R290 3/4HP
2
Material
Plant/Usage/Alt.
Description
Component parts are
specifically chosen for
propane exposure and
therefore non-incendive and
non-sparkling. Component
parts shall be replaced with
identical components, and
servicing shall be done by
factory authorized service
personnel only, so as to
minimize the risk of possible
ignition due to incorrect parts
or improper service.
