Evaporation tray assy
Lower moisture wicking plates
(Not needed after modication)
Screws
Screws
⑦
Upper moisture wicking plates
(Not needed after modication)
Refrigeration
System Tray
Bracket

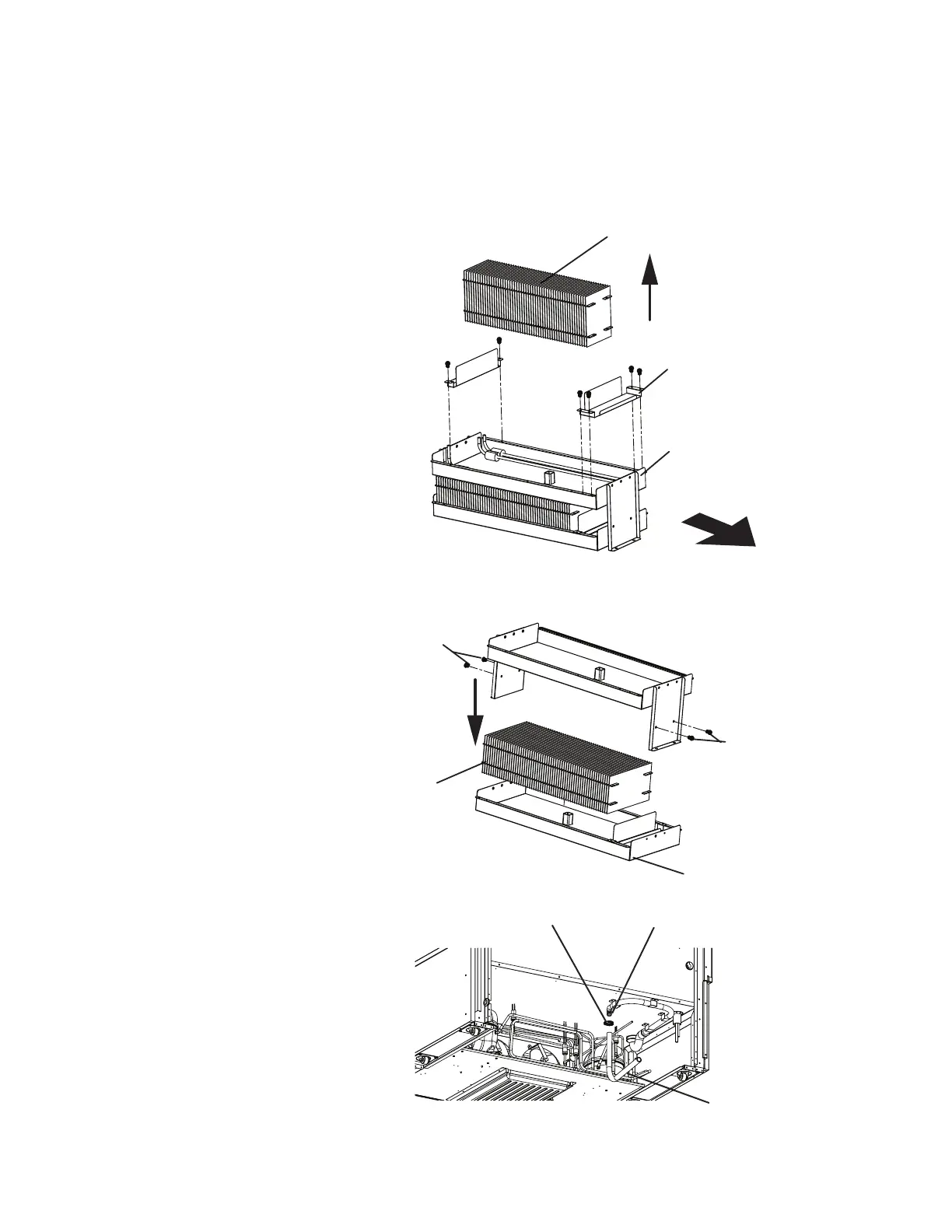

⑥ Remove upper moisture wicking plates.
⑦ Remove 6 screws from the 2 brackets that attach to
the evaporation pipe. Then remove evaporation
tray assembly. (Do not remove the evaporation pipe.)
⑧ Remove 4 screws that attach to the
lower evaporation tray and
lower moisture wicking plate. Then remove the tray assembly
and the moisture wicking plate.
⑨ Attach a drain hose to the socket
on the upper evaporation tray.
Then apply a hose band to x.
⑧
Hose Band
Socket
Hose Band
Socket
Drain hose
