REPLACING DISPLAY LAMP
1. Disconnect power to the merchandiser.
Remove the screws at the top of the unit
display.
2. Remove the top panel.
3. Remove the merchandiser’s plexiglass panel.
4. Remove the cover display in order to have
access to the LED fixture harness.
5. Replace the LED with like fixture, and
re-attach connection.
6. Replace the display panel cover.
7. Return power to the merchandiser.
REPLACING SHELF LAMPS
1. Disconnect power to the merchandiser. The
LED fixtures are located behind the top of the
door frame.
2. Remove the screws and disconnect the LED
fixture from the merchandiser.
3. Replace the LED with like fixture.
4. Return power to the merchandiser.
SERVICE

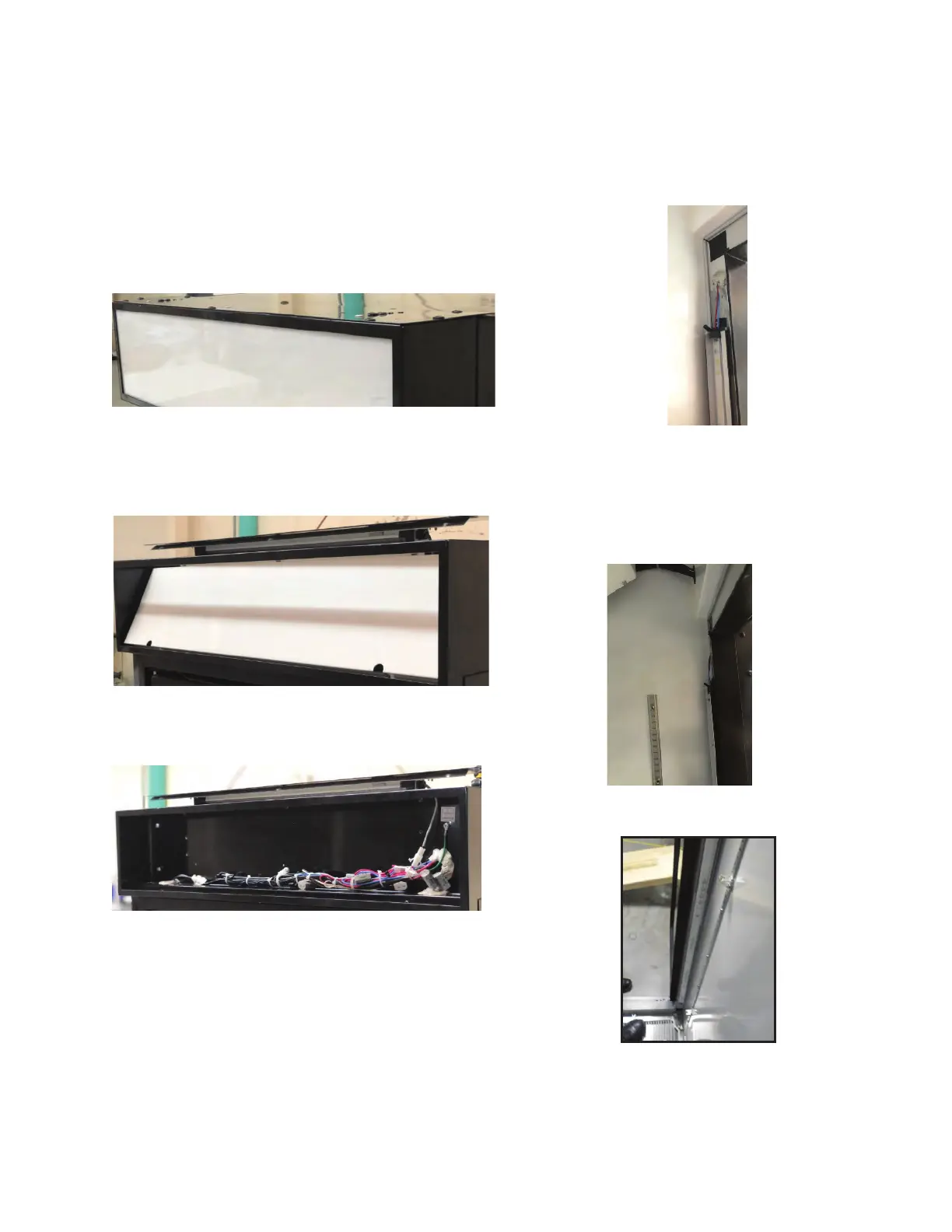

Display Slides out to access Wireway
LED Location
Note: This procedure applies to all VRL models
(1-door model is shown in the photos)
