Hussmann R3 - Page 17

Rev.0208
17
Schematics
Date:
Project Title:
Drawing No.:Drawn By:
Assembly: Drawing Title:
Date:
Hussmann Corporation, Int'l.
13770 Ramona Avenue, Chino, CA. 91710
(909)-590-4910 Lic.#: 644406
Revisions:
No. Description: Checked By:
By:
File Location:
Adrián E. Crisci
AEC
Sheet of
1
2
06/27/00
(Hard wired no #)
15 Amp
Receptacle
20 Amp. GFCI Outlet
(dedicated line)
125-04-0113
125-04-0113
125-04-0111
Thermostat
Light Switch
Suction Solenoid
125-04-0110
125-04-0108
Cap
Evaporator Fans
Plenum Extension
125-04-0109
Evaporator Fans
Plenum Extension
125-04-0109
Evaporator Fans
Primary harness
Single Case Pigtail
Case to Case Harness
125-04-0101
125-04-0106
ASCM-SP 125-04-0201
BALLAST FULHAM
WH3-120-L
BALLAST FULHAM
WH3-120-L
ASCM-MP 125-04-0200
BALLAST FULHAM
WH3-120-L
BALLAST FULHAM
WH3-120-L
(2) F21TL5/830
125-01-1023
125-01-1024
(1) F28TL5/830
(Hard wired no #)
(2) F28TL5/830
(Hard wired no #)
(2) F28TL5/830
Shelf
Top
Front
Canopy
Top
Front
Canopy
Top
Front
Canopy
125-01-1023
125-01-1024
(1) F21TL5/830
Shelf
BALLAST FULHAM
WH3-120-L
ASCM-SP 125-04-0201
125-01-1023
125-01-1024
(1) F28TL5/830
Shelf
125-04-0108
Cap
Evaporator Fans
Primary harness
Plenum Extension
125-04-0109
Plenum Extension
125-04-0109
Evaporator Fans
Evaporator Fans
Self-Service
Front Section
(TOP CASE)
µ
µ
NOTE: PLUG TOP CASE FANS INTO HUMIDITY SYSTEM FANS
Service
Deli/Meat
Top Section
125-01-0083
125-04-0128
125-01-0083
125-01-0083
125-04-0128
125-04-0128
125-04-0128
125-04-0128
Ledge Lights (Optional)
» See drawing W0100016 «
125-04-0115
125-04-0137
Top section Anti-Sweat heater
harness.
(See page 2 of 2)
W1800010
R3-2000 Model

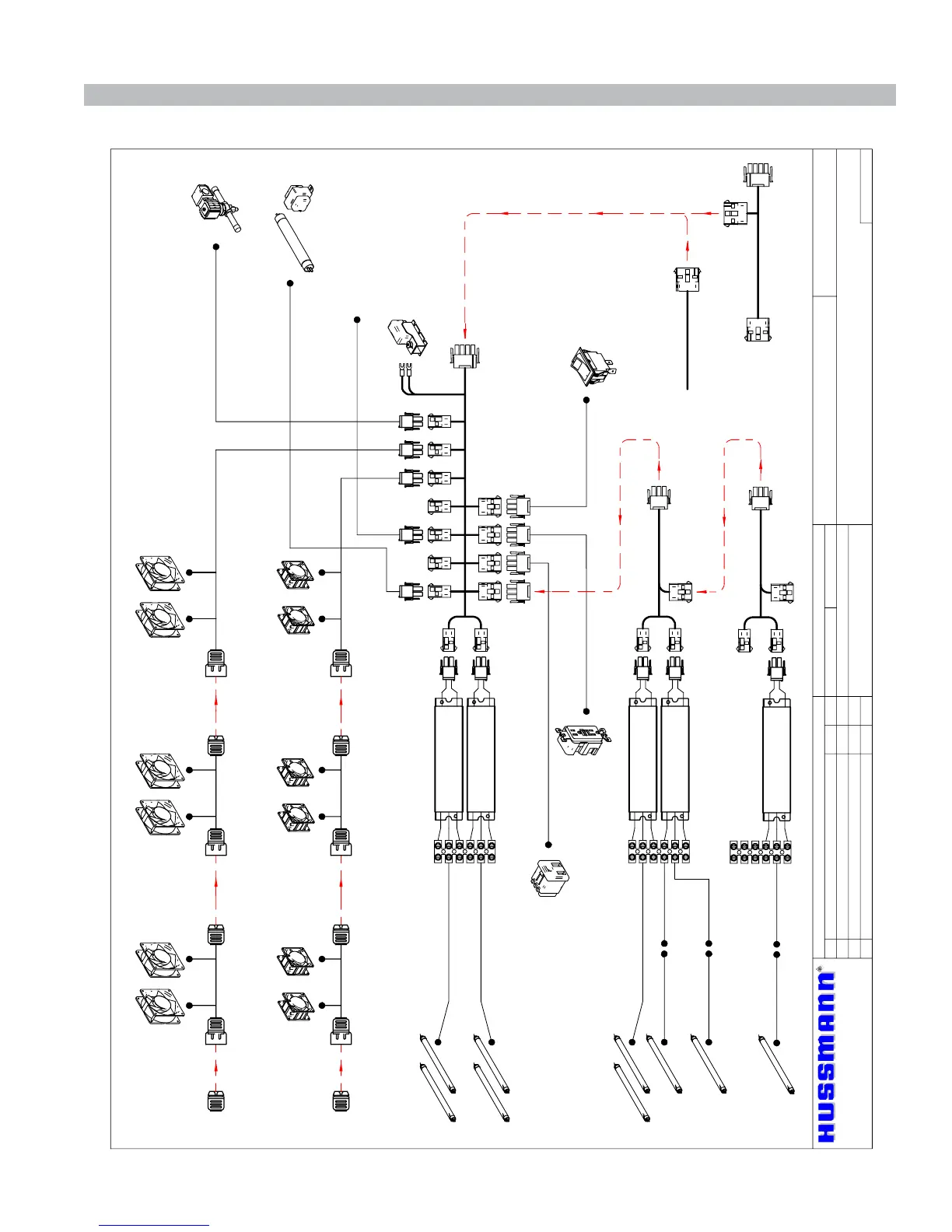

10' Case Wiring Diagram
H:\Wire..\New..
Single Row Front Shelves
1 Added Anti-sweat heater harness 11/22 AEC
