Rev.0208
25
Date:
Project Title:
Drawing No.:Drawn By:
Assembly: Drawing Title:
Date:
Hussmann Corporation, Int'l.
13770 Ramona Avenue, Chino, CA. 91710
(909)-590-4910 Lic.#: 644406
Revisions:
No. Description: Checked By:
By:
File Location:
Adrián E. Crisci
AEC
Sheet of
1
2
08/21/00
15 Amp
Receptacle
20 Amp. GFCI Outlet
(Dedicated line)
(Optional)
125-04-0113
125-04-0113
125-04-0111
Thermostat
Light Switch
Suction Solenoid
125-04-0110
125-04-0108
Cap
Evaporator Fans
Plenum Extension
125-04-0109
Evaporator Fans
Primary harness
Single Case Pigtail
Case to Case Harness
125-04-0101
125-04-0105
(Hard wired no #)
Top Lights (2) FP28T5/830
125-04-0108
Cap
Evaporator Fans
Primary harness
Plenum Extension
125-04-0109
Evaporator Fans
Self-Service
Front Section
(TOP CASE)
µ
µ
NOTE: PLUG TOP CASE FANS INTO HUMIDITY SYSTEM FANS
Service
Deli/Meat
Top Section
125-01-0083
ASCM-MP 125-04-0200
ASCM-SP 125-04-0201
Shelves (2) F28TL5/830
(2) 125-01-1023
(2) 125-01-1024
BALLAST WH5-120-L
125-04-0129
(Hard wired no #)
Front Canopy (2) FP28T5/830
125-01-0085
BALLAST WH5-120-L
125-04-0129
BALLAST WH5-120-L
125-04-0129
Shelves (2) F28TL5/830
(2) 125-01-1023
(2) 125-01-1024
Ledge Lights (Optional)
» See drawing W0100016 «
125-04-0115
125-04-0136
Top section Anti-Sweat heater
harness.
(See page 2 of 2)
W1800013

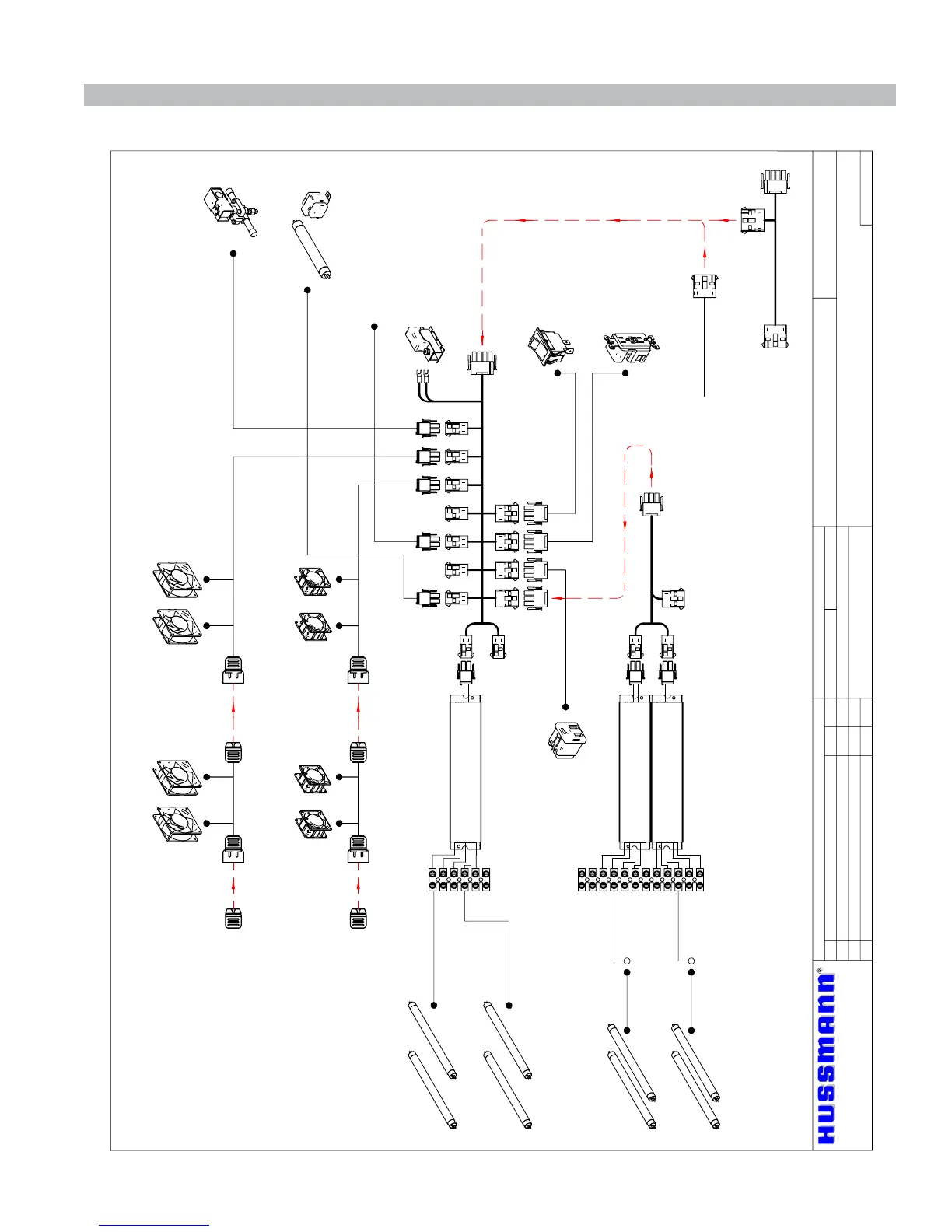

R3-2000 Model
8' Case Wiring Diagram
H:\Wire..\New..
Dual Row Front Shelves
1 Added Anti-sweat harness 11/27 AEC
Schematics
