44 tEchnIcal data
P/N 3034041_D U.S. & Canada 1-800-922-1919 • Mexico 1-800-890-2900 • www.hussmann.com

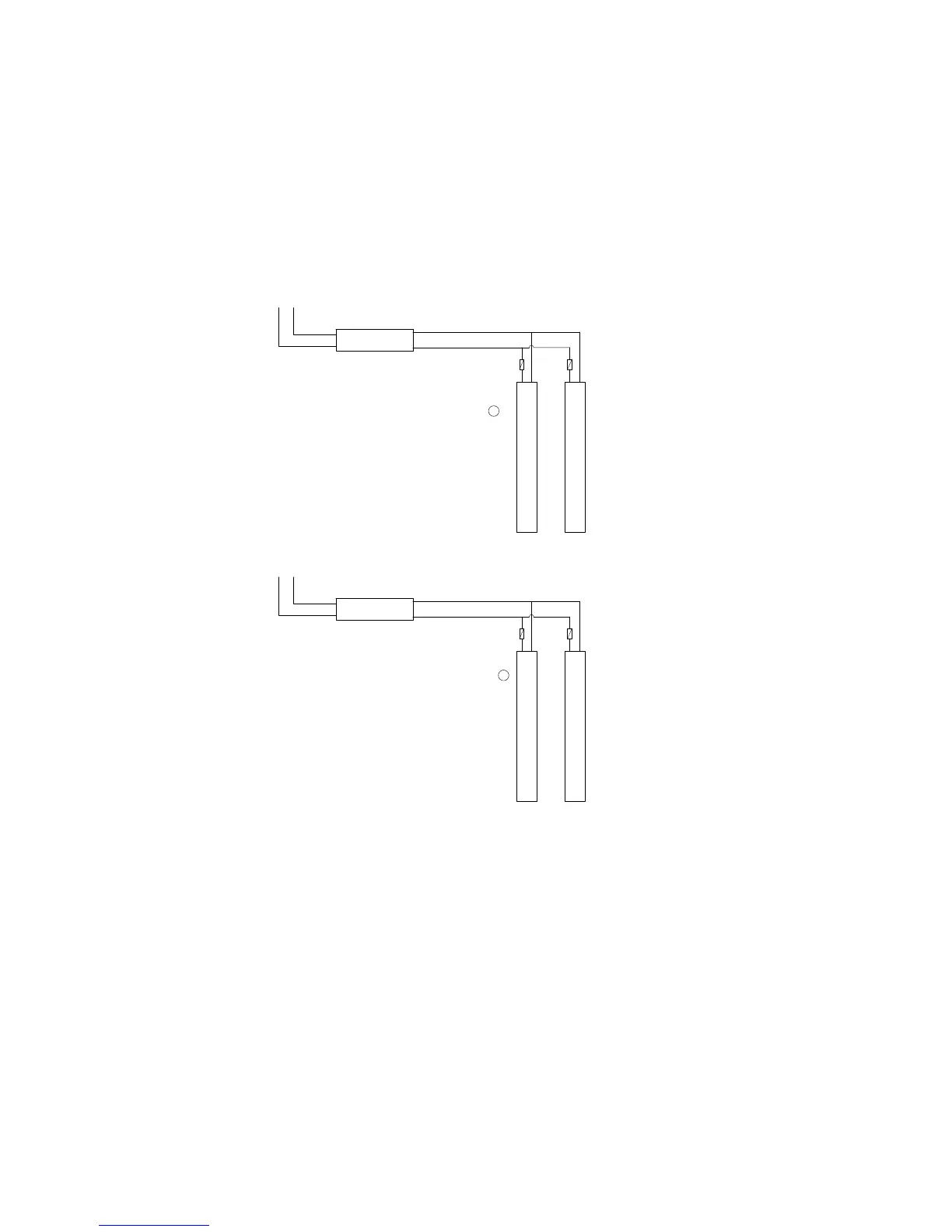

BL (-)
R (+)
POWER SUPPLY
LINE 1 NEUTRO (LINE2)
BK
W
CENTER LED
CENTER LED
FUSE
1.0 A
FUSE
1.0 A
BL (-)
R (+)
POWER SUPPLY
LINE 1 NEUTRO (LINE2)
BK
W
CENTER LED
END LED
FUSE
1.0 A
FUSE
0.6 A
VRM3B
VRM2B
H
H
