REV C 4-8 121878
4. Start the engine.
5. Position the steering control lever in the neutral
position. Figure 4-15
IMPORTANT: Make sure the deck clutch switch is in
the “OFF” (disengaged) position.
6. With the bypass valve open and the engine running,
slowly move the steering control lever in both forward
and reverse directions (5 or 6 times). Figure 4-16
7. With the bypass valve closed and the engine running,
slowly move the steering control lever in both forward
and reverse directions (5 or 6 times). Check the oil
level, and add oil as required after stopping the engine.
8. It may be necessary to repeat Steps 6 and 7 until all
the air is completely purged from the system. When
the transaxle operates at normal noise levels and
moves smoothly forward and reverse at normal
speeds, then the transaxle is considered purged.
9. Unbolt the seat platform from the mower frame.
• Disconnect the two female spade connectors
from each other (from step #3).
• Reconnect them to the seat switch. This must be
completed so that the safety circuit is
functioning properly. Figure 4-14
• Re-attach the seat platform to the mower frame.

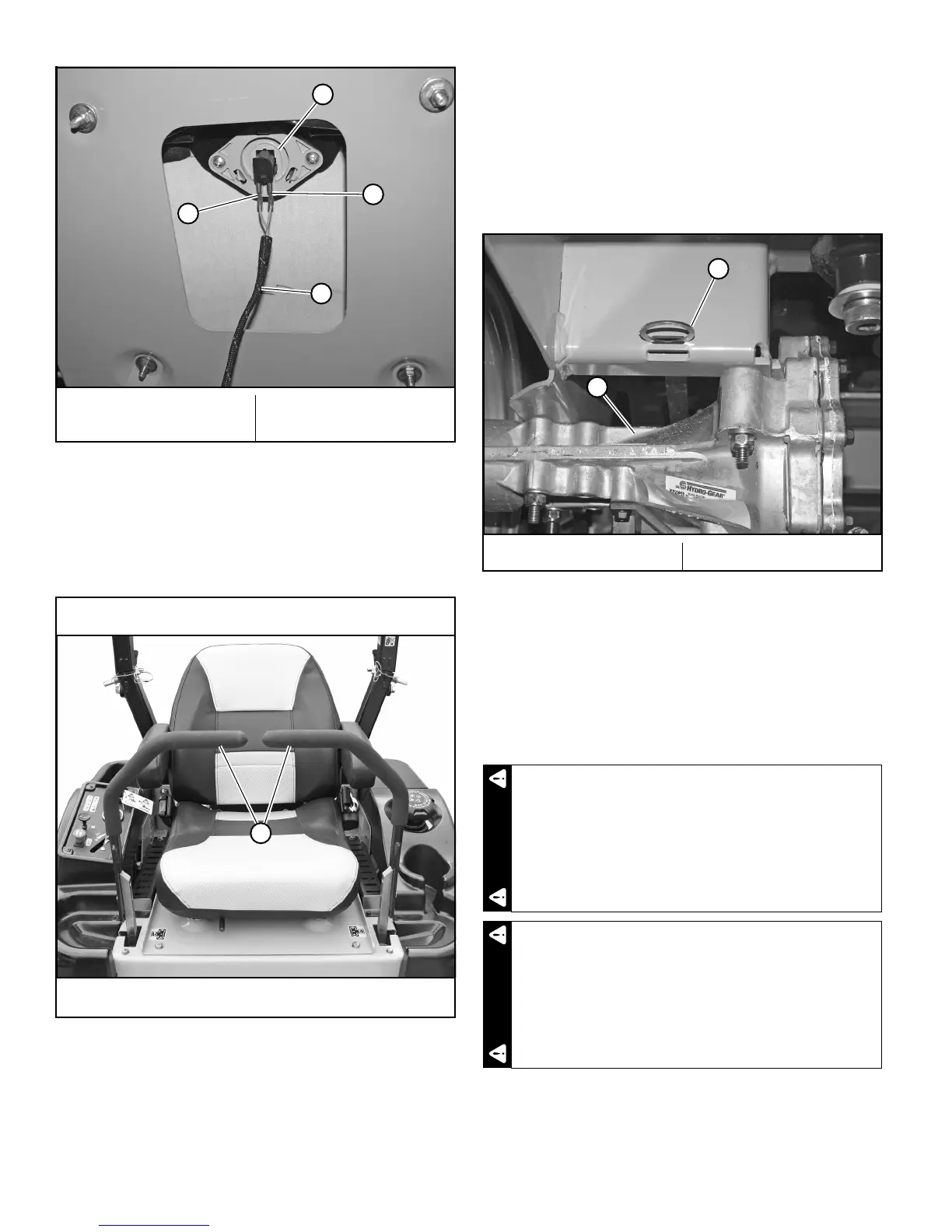

A. Seat switch
B. Female spade connector
C. Mower harness
Figure 4-14
Shown with steering control levers in the neutral position
A. Steering control lever
Figure 4-15
A
B
B
C
A
A. Bypass valve rod B. Transaxle
Figure 4-16
Do not operate the mower without plugging the
mower’s wiring harness into the seat switch. This
switch is an important part of the safety start
interlock system. Serious injury can result if the
seat switch is not plugged into the mower’s wiring
harness.
Never operate the mower with a non-functioning
seat switch. Always reconnect the seat switch to the
mower harness.
A
B
WARNINGWARNING
