121878 6-5 REV C
Belt Routing and Tensioning
The following notes are the same for the different decks that are available.
1. There is no tension adjustment of this belt.
2. Route belt as shown.

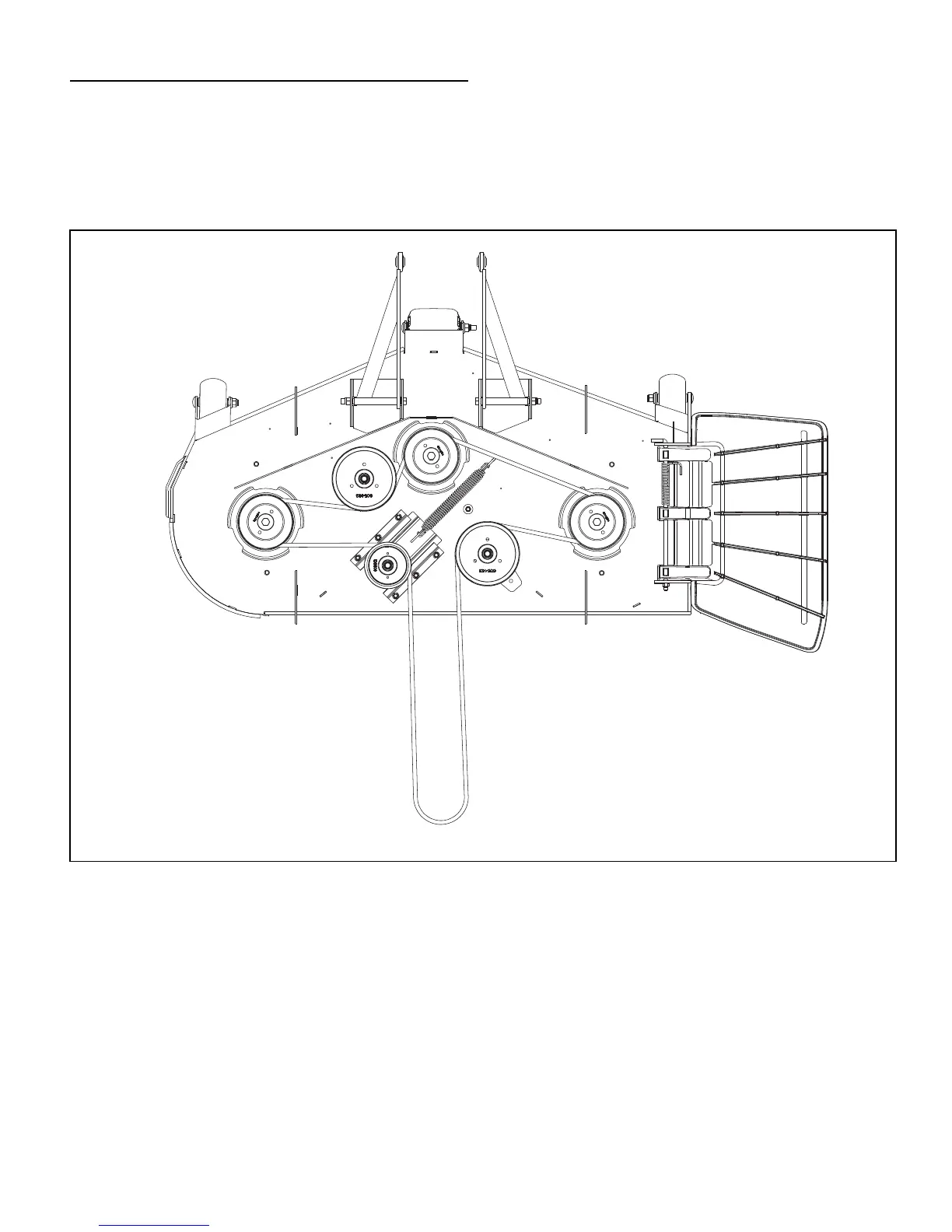

Side Discharge Deck Belt Routing
Figure 6-11
