REV B 4-2 125816
Repeat for the opposite side if necessary
9. When both wheels remain in neutral, tighten the jam
nuts to lock the turnbuckle in place.
10. Test again by moving the steering control levers
forward and backward before returning them to the
neutral position. If the tires are in neutral, the unit is
now ready for operation.
11. After adjusting for neutral it may be necessary to re-
adjust the control lever stop and/or damper.
12. IMPORTANT: With the engine off, disconnect the two
female spade connectors from each other (from step
#3) and reconnect them to the seat switch. This must
be completed so that the safety circuit is functioning
properly. Figure 4-1
13. Check to make sure all tools or obstructions are
removed from under the mower.
14. Raise the rear of the mower and remove the jack
stands. Lower the mower.
15. Lower and secure the seat platform.
Control Lever Stops
The internal steering control lever stops (see Figure4-4)
are designed to keep the pumps from bottoming out
internally. The external steering control lever stops (see
Figure 4-5) may be adjusted to help the mower drive straight
when the steering control levers are pushed forward against
the stops.
To keep the pumps from bottoming out internally use
the following procedure:
This adjustment is only required if the hydraulic pump(s)
have been replaced.
1. To make the first adjustment the mower engine must
not be running.
2. Check to make sure the steering control levers are
against the stops before the pumps are bottomed out
internally.
3. To do this, gently and slowly move the steering control
levers forward and feel if there is some resistance on
the pump lever before the control levers hit the stops.
Check one side at a time. If you sense that the pump

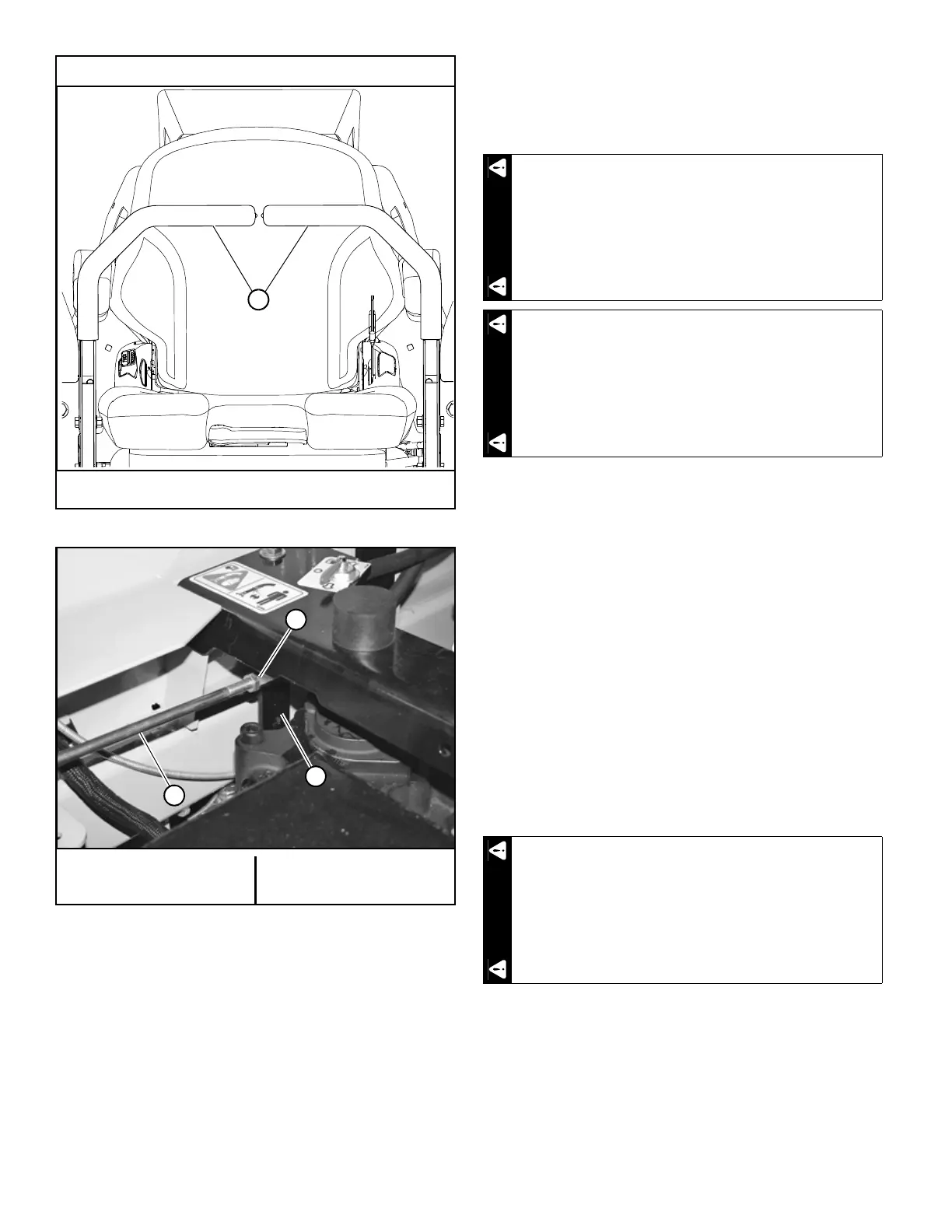

Steering control levers in neutral position
A. Steering control levers
Figure 4-2
A. Jam nut
B. Pump linkage rod
C. Pump arm
Figure 4-3
Do not operate the mower without plugging the
mower’s wiring harness into the seat switch. This
switch is an important part of the safety start
interlock system. Serious injury can result if the
seat switch is not plugged into the mower’s wiring
harness.
Never operate the mower with a non-functioning
seat switch. Check the mower’s safety start interlock
system daily, prior to operation, to make sure the
seat switch is functioning properly.
Pump damage will occur if these stops are set
incorrectly.
