REV B 6-4 125816
above and below the front wheel pivot tube.
Figure 6-10
Once Steps 11 & 12 have been satisfied proceed to
Step 13.
13. Adjust the rear gauge wheel height. Tighten the
adjustment bolt on the bottom of the rear gauge wheel
fork assembly until the deck just begins to lift away
from the 3” (76.2 mm) block. Figure 6-9
14. Tighten the jam nut. Figure 6-9
15. Tighten the two 1/2” rear wheel arm bolts. Figure 6-9
16. Repeat for the other side deck.
17. When done, lift the side decks and remove the 3” (76.2
mm) blocks.
Blades
Mower Blade Maintenance
IMPORTANT: Refer to the Safety section of this manual for
blade handling safety information.
Refer to the Mower Blade Replacement section for blade
removal and installation.
Check the mower blades daily, they are the key to power
efficiency and well groomed turf. Keep the blades sharp. A
dull blade will tear rather than cut the grass, leaving a brown
ragged top on the grass within a few hours. A dull blade also
requires more power from the engine.
Replace any blade which is bent, cracked or broken.
Sharpen the blades following the pattern shown. Touch-up
sharpening can be done with a file. Figure 6-11
After grinding the blades, check for balance. Blade
balancing can be done by placing the blade on an inverted
line punch or 5/8" bolt. A commercial balancing tool is also
available through most hardware supply stores.
The blade should not lean or tilt. When spinning the blade
slowly it should not wobble. Balance the blade before
reinstalling.

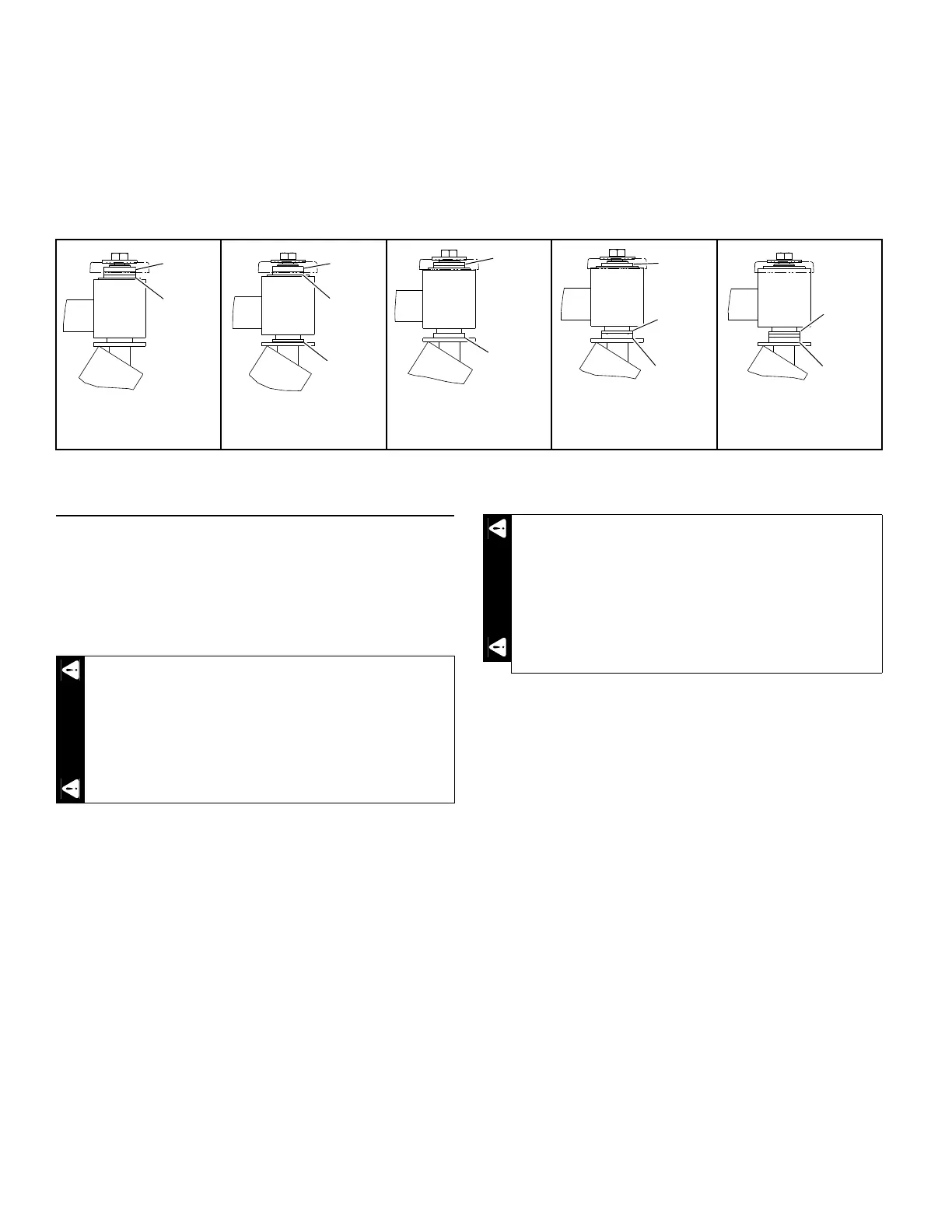

Front wheel
at lowest setting
Front wheel
at highest setting
Figure 6-10
(2) .125”
Washers
(1) .250”
Washer
(1) .125”
Washer
(1) .250”
Washer
(1) .125”
Washer
(2) .125”
Washers
(1) .250”
Washer
(1) .125”
Washers
(1) .125”
Washer
(1) .250”
Washer
(2) .125”
Washers
(1) .250”
Washer
Mower blades are sharp and can cut. Wrap the
blade(s) or wear gloves and use extra caution
when servicing them.
Always check for blade damage:
• if mower strikes a rock, branch or other
foreign object during mowing!
• or if an abnormal vibration occurs while
operating.
Make all necessary repairs before resuming
operation.
