HUSTLER Super 104 General Service Manual

REV B 8-4 125816
1. Engine Oil Fill and Dipstick (Kawasaki)
2. Fuel Filter
3. Engine Air Cleaner
4. Engine Oil Drain Plug
5. Battery
6. Fuel Tanks
7. Hydraulic Oil Reservoir
8. Hydraulic Oil Filter
9. Front Wheel Bearing Zerks (2)
10. Engine Oil Filter
11. Deck Height Pivot Zerks (4)
12. Park Brake Switch
13. Drive Tires
14. Pump Idler Zerk (1)
15. Pump Belt
16. Deck Pusher Arm Zerks (2)
17. Deck Belt - Deck Drive
18. Spindle Housing Zerk (5)
19. Blades
20. Fuel Evaporation System Filter
21. Hydraulic Oil Heat Exchanger
22. Deck Belt - Side Deck
23. Side Deck Pivot Zerks (4)
24. Deck Belt - Center Deck
25. Gauge Wheel Zerk (4)
26. Rubber Discharge Guards
27. Engine Oil Fill (Vanguard)
28. Engine Oil Dipstick (Vanguard)
29. Caster Fork Tapered Bearings

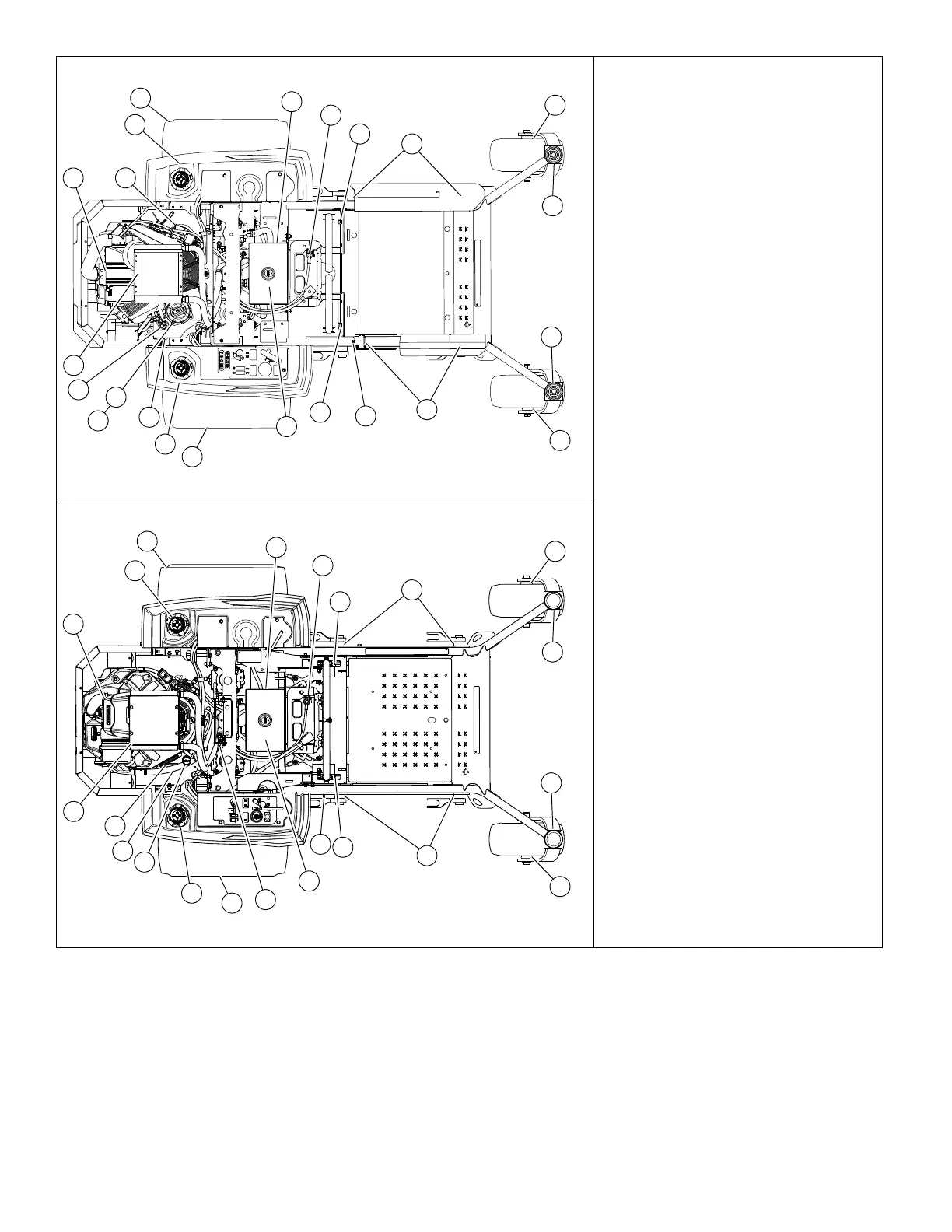

Figure 8-3
Figure 8-4
607688
28
4
10
6
6
13
8
12
23
11
9
9
11
12
5
7
13
2
3
21
Mowers with Vanguard EFI engines
29
29
27
1
4
10
6
6
13
8
12
23
11
9
9
11
12
5
7
13
2
3
21
Mowers with Kawasaki EFI engines
29
29
