HUSTLER Super 104 - Anti-scalp Wheels

606835 3-11 REV B
Anti-scalp Wheels

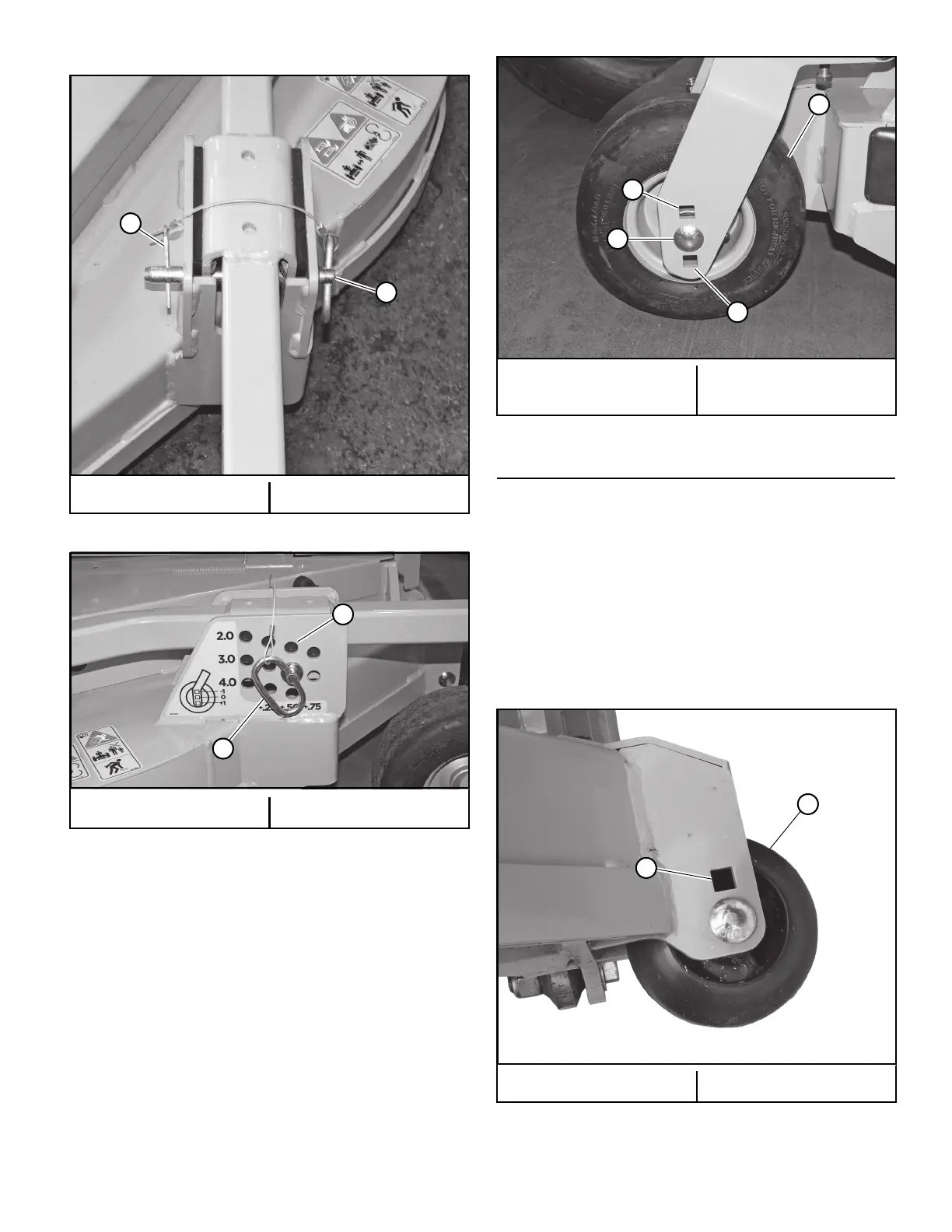

Anti-scalp wheels are standard on this mower. These anti-
scalp wheels are designed to minimize scalping when
mowing on rough uneven terrain. Figure 3-18
Anti-scalp wheels can be installed in two positions. With
the wheel installed in the bottom hole, the wheel is located 2"
(50.8mm) below the mower blades. This setting is preferred
when mowing at cutting heights of 2-1/2" (63.5mm) or
higher. When the wheel is mounted in the top hole, it is
located 1" (25.4mm) below the mower blades. This is the
acceptable setting for mowing at cutting heights of 1"
(25.4mm) or higher.
A. Hair pin B. Clevis pin
Figure 3-15
A. Clevis pin B. Adjusting holes
Figure 3-16
A
B
A
B
A. Top hole
B. Middle hole
C. Bottom hole
D. Side deck wheel
Figure 3-17
A. Adjusting holes B. Anti-scalp wheel
Figure 3-18
A
B
C
D
A
B
