REV B 3-2 606835
the left gauge indicates the fuel level in the left fuel
tank.
J. Side deck lift switch (Figure 3-1 & Figure 3-2) — this
switch raises and lowers the side decks. Push down
on the top of the switch to raise the side decks. Push
down on the bottom of the switch to lower the side
decks.
K. Center deck lift switch (Figure 3-1 & Figure 3-2) — This
switch raises and lowers the center deck. Push down
on the top of the switch to raise the center deck. The
center deck will lower automatically when the switch
is released.
L. Engine malfunction light (Figure 3-1)
— this light
comes on when there has been an engine malfunction
on mowers with electronic fuel injection engines.
Refer to the engine owner’s manual for more details.
Controls
Steering control levers (Figure 3-4 & Figure 3-5) — these
levers control the mower’s speed, direction, stopping, and
park brake.
Safety Start Interlock System
The mower’s safety start interlock system consists of the
park brake switches, seat switch, and deck clutch switch.
IMPORTANT: Repair this important safety feature immedi-
ately if it malfunctions.
This safety feature prevents mower runaway or accidental
entanglement during operation.
Check the mower’s safety start interlock system daily,
prior to operation.
To inspect the system:
1. Sit on the seat when testing the seat switch.

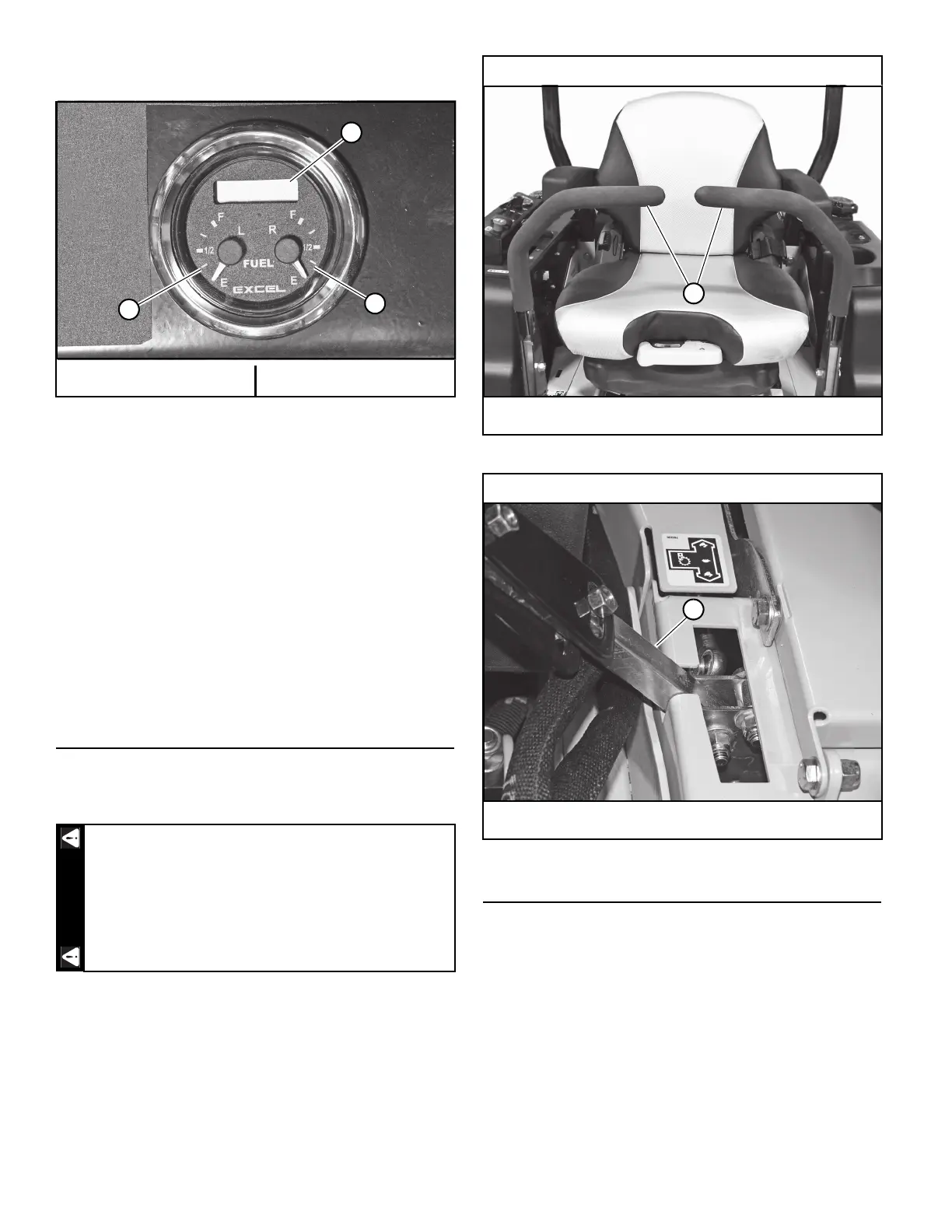

A. Electronic hour meter B. Fuel tank gauge
Figure 3-3
The parking brake may not hold the mower if
parked on a slope. Block or chock the machine
when parked on a slope.
Shown with steering control levers in neutral position
A. Steering control levers
Figure 3-4
Shown with steering control levers in park brake position
A. Steering control lever
Figure 3-5
