Customer Service Department
HUVITZ Co.,Ltd
2013. 08. 16
6 / 72
⑮

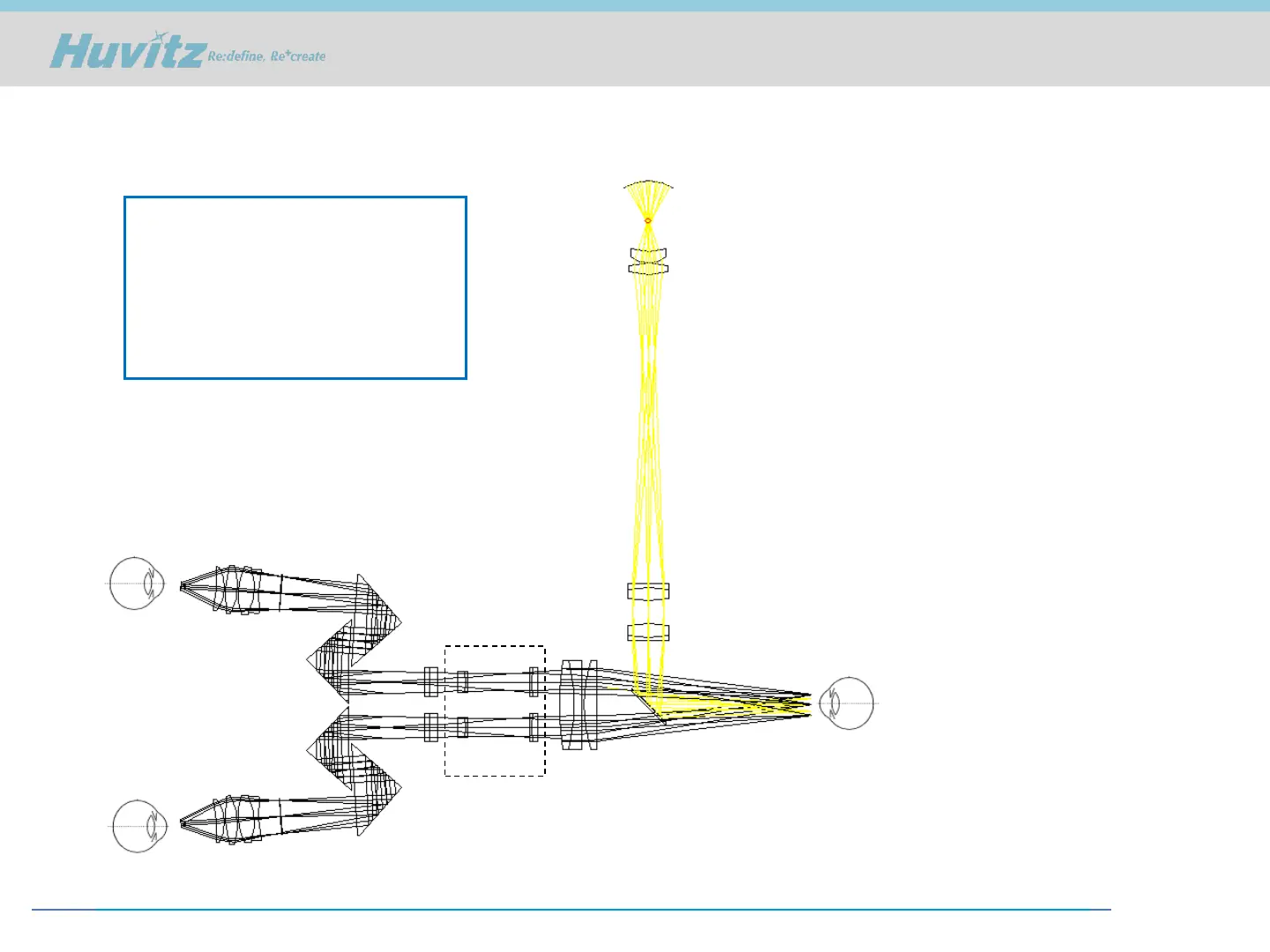

① : Eyepiece
② : Prism (Ver Prism)
③ : Prism (Hor Prism)
④ : 16x lens
⑤ : Magnification lens
⑥ : Objective lens
⑦ : Mirror
⑧ : Lamp lens
⑨ : C lens
⑩ : Halogen lamp
⑪ : C mirror
⑫ : OD’S Eyes
⑮ : Patient’s Eye
①
⑤
②
③
④
⑦
⑧
⑨
⑩
⑪
⑫
①
③
②
⑥
⑫
⑩ → ⑪ → ⑨ → ⑧ → ⑦
→ ⑮ → ⑥ → ⑤ → ④
→ ③ → ② → ① → ⑫
⑮
