SLIT LAMP HS
-
7
5
00
-------------------
--
--------------------------------------------------------------
l
l
l

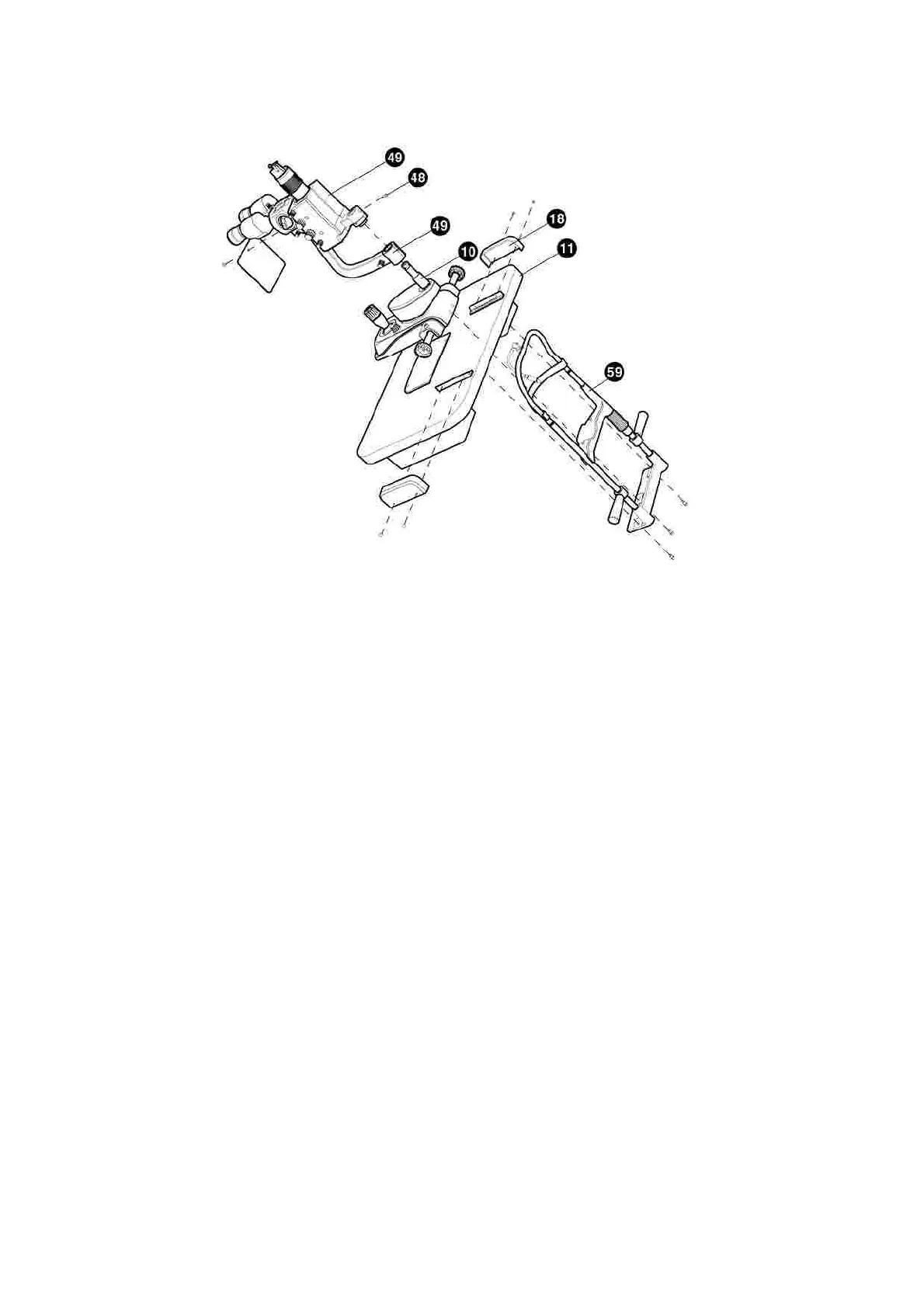

Place the base with orthogonal movements on the guides situated on the upper
part of the table top, checking that the wheels are in line. Then Place the
crankcase(
18
)
and make sure that its holes fit to
gether with those of the
t
oothed
guides
(17)
. Tighten the screw with the
screw driver(+)
Assemble the microscope arm(45) on the
Base with orthogonal move ments
(10).
Assemble
An optical group of the slit projector
(49) on the
Base with orthogonal
movement
s
(10). Then tighten the Guide screw with the screw driver(
-
)
