5. INSTALLATION
MOUNTING 5.1.
Sensor should be mounted 1/3 the diameter of the vessel from the vessel wall
Unit should never be closer than 250mm (10") to the liquid surface
Do not mount over or near objects which can interfere with the unit measurement
Do not mount in the centre of a curved roof to avoid the potential of parabolic echoes
Avoid mounting in direct sunlight

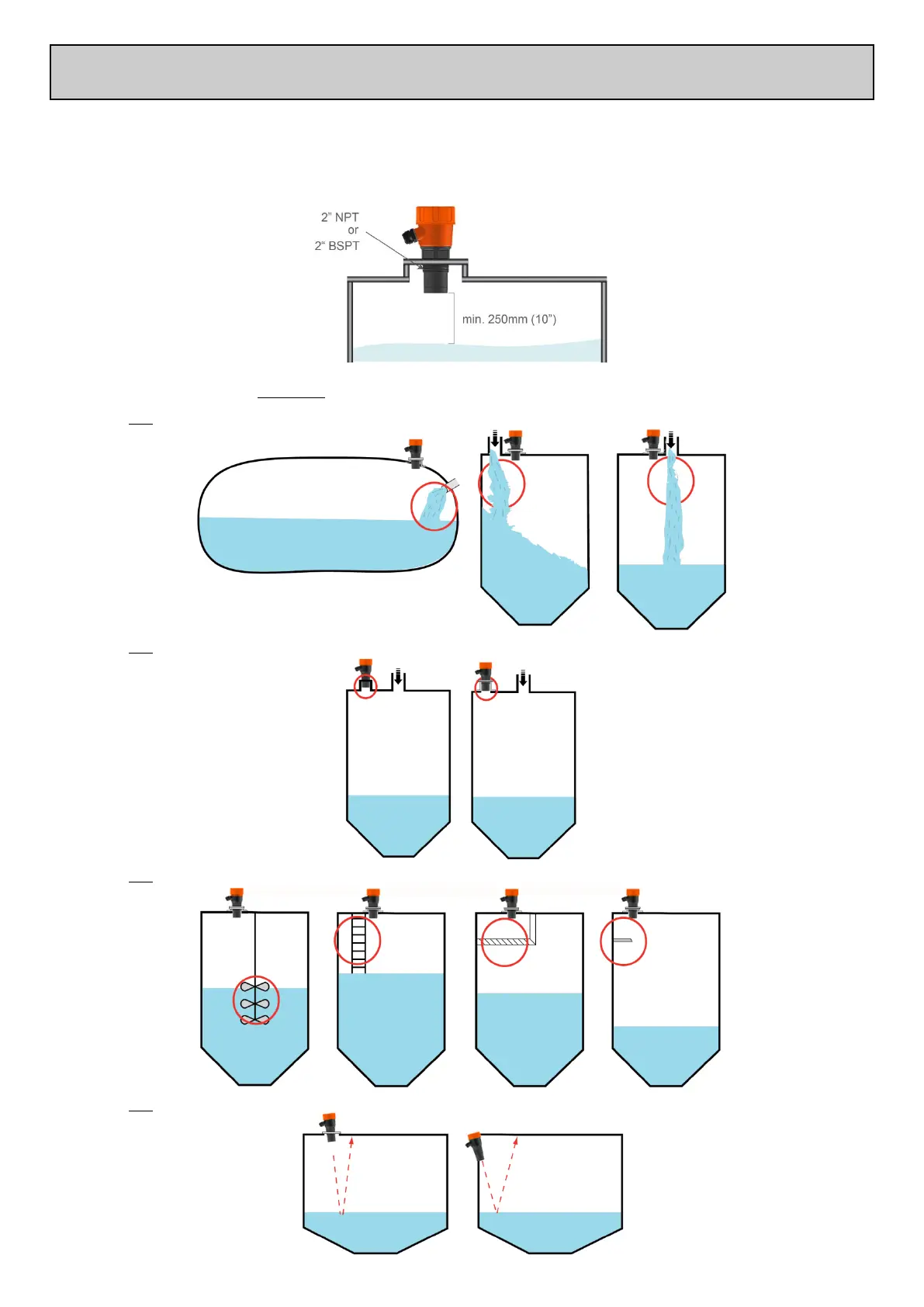

The following are examples of common INCORRECT mountings which can prevent the unit from operating correctly:
Do NOT mount near infeed
Do NOT mount cone or transducer face above roofline
Do NOT mount over or adjacent to any obstacles
Do NOT mount at an angle in liquid applications
