14.

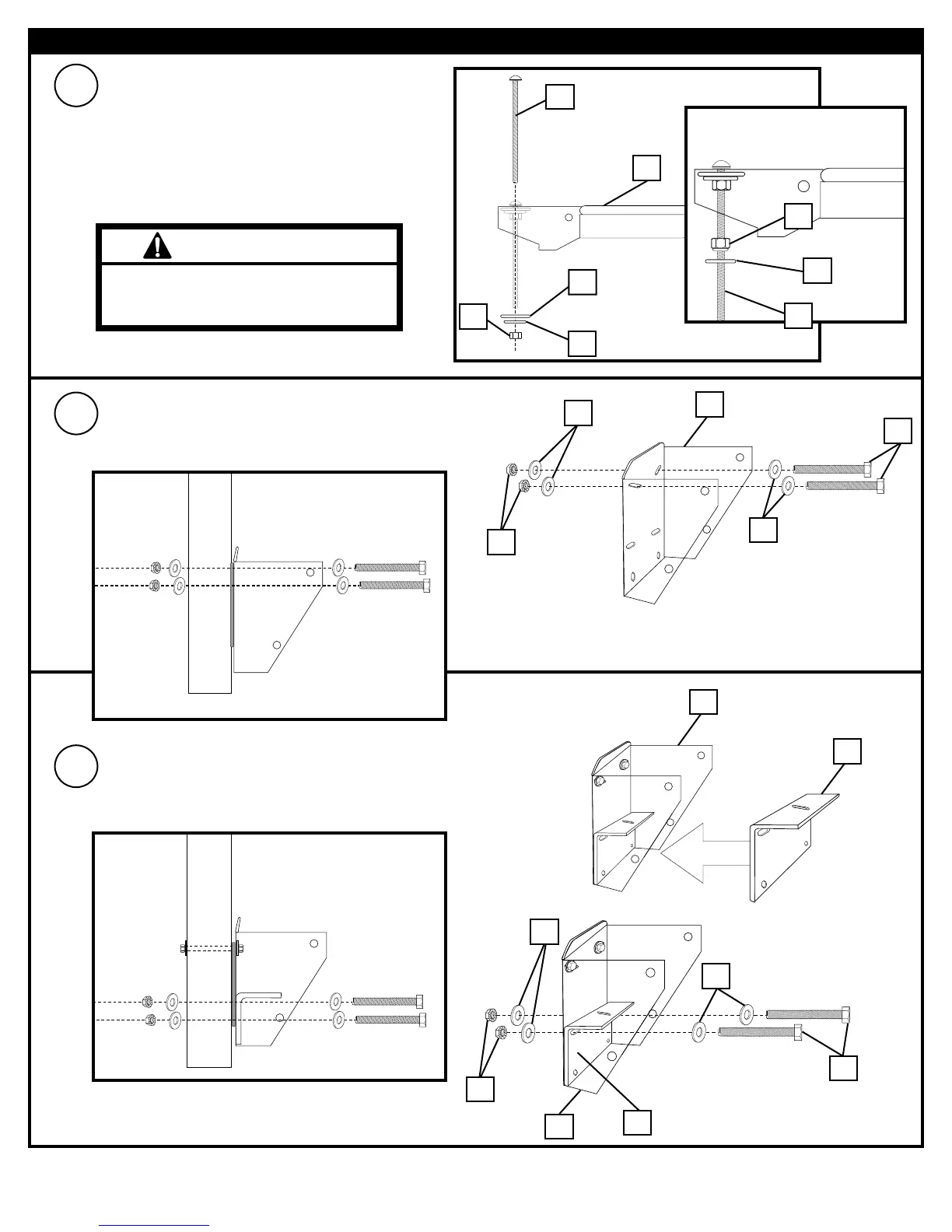

Install carriage bolt (41) through rim (25),
washers (4) and (27) as shown. Tighten
nut (43) completely. Place nut (42) about
half-way up carriage bolt (41) as shown.
25
4
41
27
43
TWO PERSON MINIMUM REQUIRED FOR THIS
PROCEDURE. NOT FOLLOWING RECOMMENDATION
MAY RESULT IN SERIOUS BODILY INJURY AND/OR
PROPERTY DAMAGE.
Attach bracket (39) to backboard and support
structure by inserting bolts (26) and washers (24)
through top holes in bracket (39), Tighten nuts (23)
completely.
26
39
24
23
24
15.
23
24
24
40
26
Insert inner bracket (40) into bracket (39) as shown.
Insert bolts (26) and washers (24) through top holes of
inner bracket (40) as shown, *FROM STEP 13-
Now tighten backboard/frame nuts (23) completely.
16.
39
40
39
42
41
27
To Next Page
