HYDRA-RIB 211348D - Page 9

9
01/03 P/N 211348D
13.
23
22
13
TWO PERSON MINIMUM REQUIRED
FOR THIS PROCEDURE. NOT
FOLLOWING RECOMMENDATION
MAY RESULT IN SERIOUS BODILY
INJURY AND/OR PROPERTY
DAMAGE.
WARNING

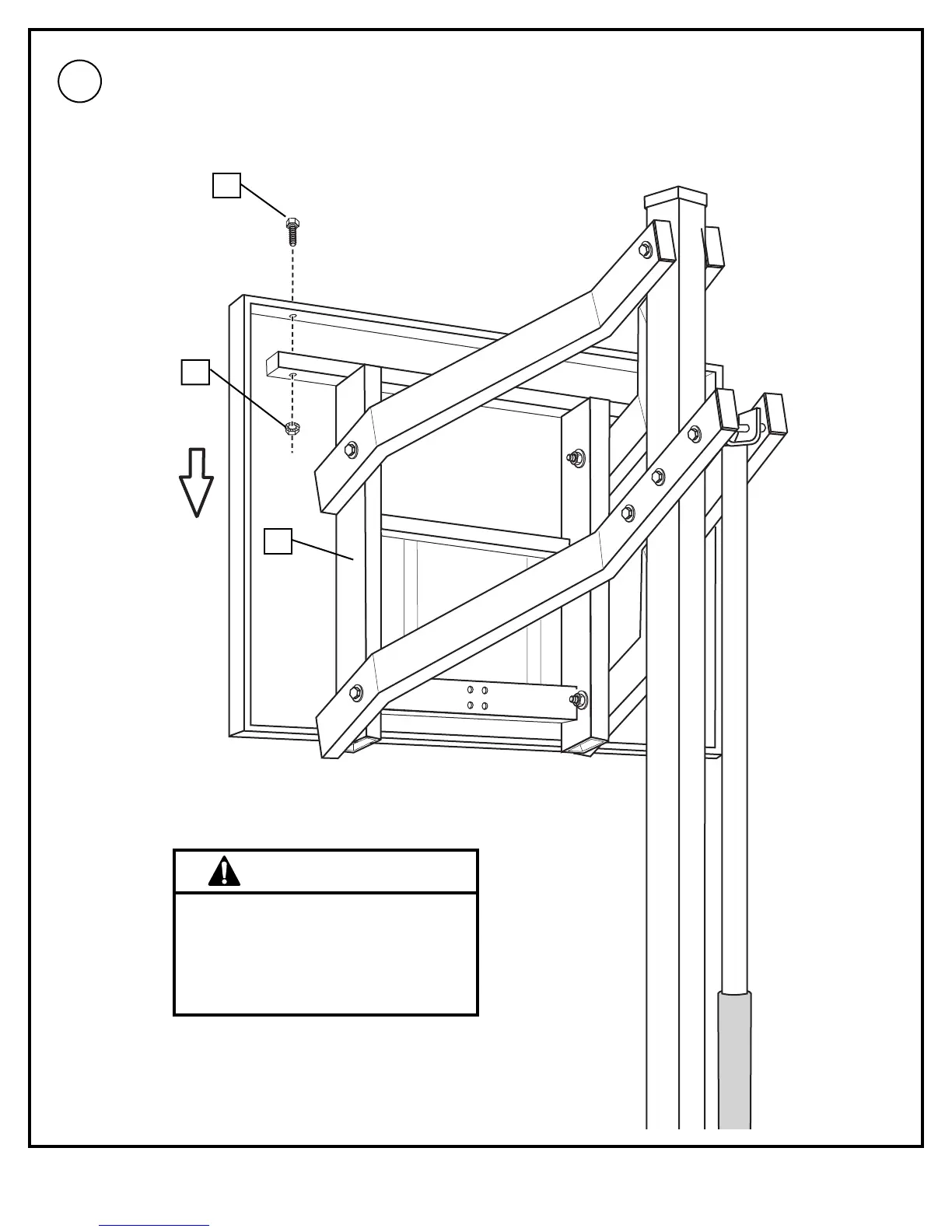

After Installation of elevator mechanism, position H-frame assembly to lowest point.
Hang backboard onto H-frame (13). NOTE: Backboard frame will rest on top of
H-frame. Secure backboard with hardware as shown-*ONLY Fingertighten bolts (21)
with nuts (22). Repeat procedure for opposite side.
