Page 1-38 Boxxer 427
Diverter Valve Actuator Assembly Parts List
Item Part Number Description Qty

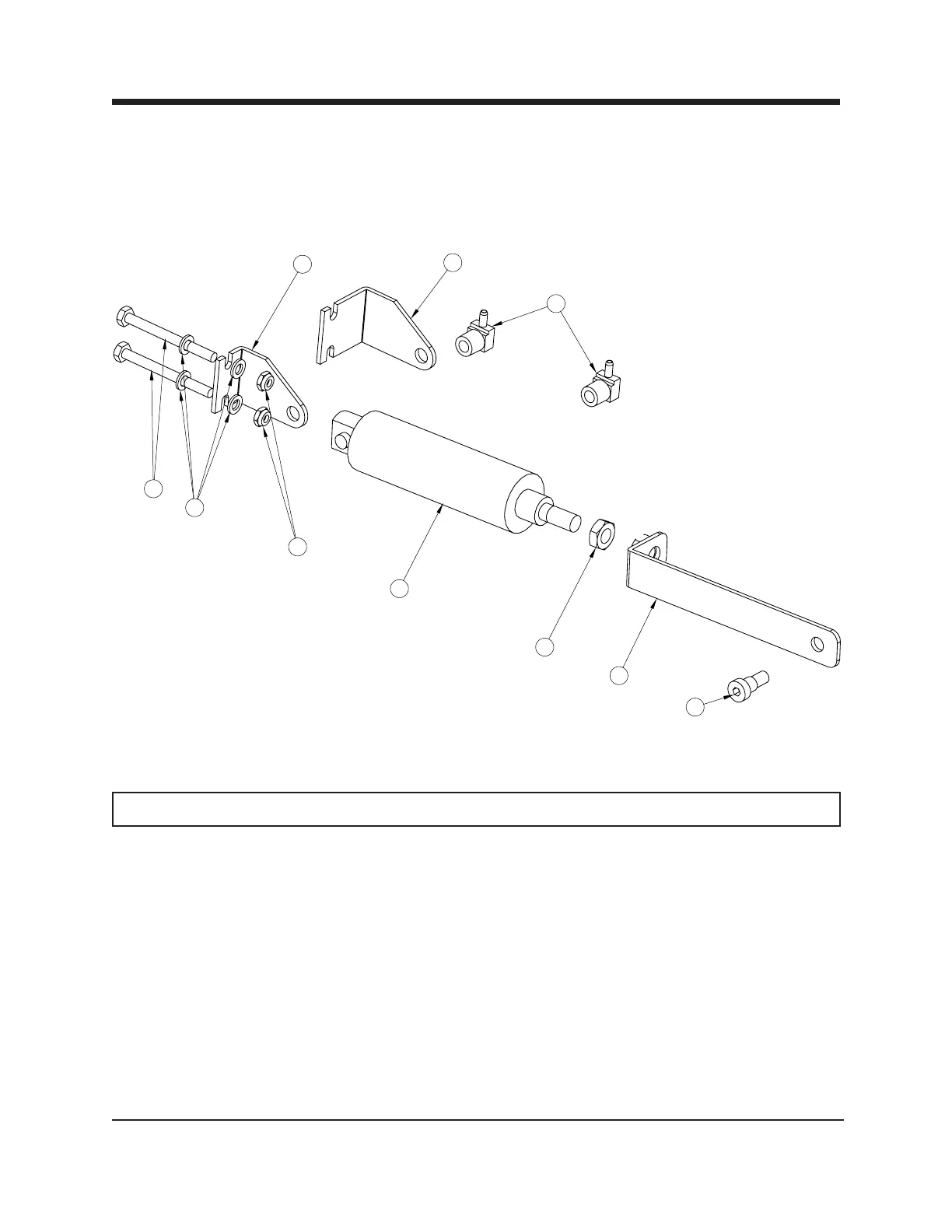

Figure 1-15 Diverter Valve Actuator Assembly
C-5584 Rev B
6
1
3
4
2
7
9
8
10
5
1 000-169-169 Valve, Air Cylinder 1
2 000-015-926 Bracket, Air Cylinder Extension - Welded - Boxxer 427 1
3 000-094-092 Nut, 7/16"-20UNF Hex Jam 1
4 000-052-550 Elbow, 1/8" NPT x 3/16" Barb 2
5 000-015-750 Bracket, Air Cylinder Mount - Inner 1
6 000-015-748 Bracket, Air Cylinder Mount - Outer 1
7 000-143-573 Screw, 5/16-18 Shoulder, 3/8" Dia x 1/2" 1
8 000-174-003 Washer, 1/4" Flat 4
9 000-143-180 Screw, 1/4"20UNC x 2.75" Lg. Hex Head 2
10 000-094-071 Nut, 1/4"-20UNC Hex Nylock Half 2
