70 Gallon Universal Recovery Tank Cover Assembly Parts List
Item Part Number Description Qty

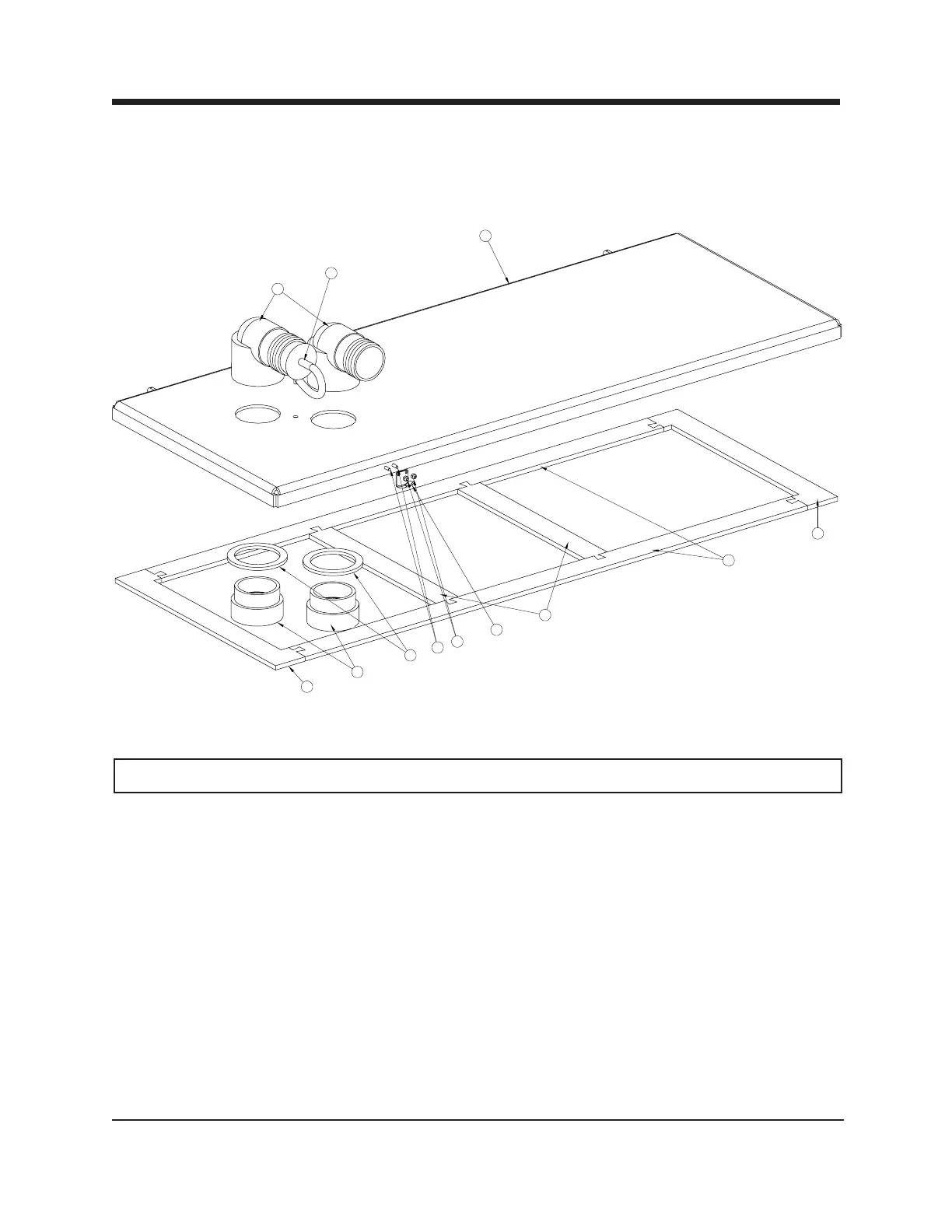

Figure 1-35 70 Gallon Universal Recovery Tank Cover Assembly
D-6890 Rev -
2
1
10
9
8
6
7
3
4
5
3
11
1 000-041-444 Cover, Dual Vac. 70 Gallon Universal Recovery Tank - 1
2 000-052-222 Elbow, 2" Barb x 2" FPT 2
3 000-057-202 Gasket, End - Recovery Tank 2
4 000-057-203 Gasket, Middle - Recovery Tank 2
5 000-057-204 Gasket, Side - Recovery Tank - 70 Gallon 2
6 000-057-015 Gasket, 1-1/2" Bulkhead Fitting 2
7 000-052-219 Adapter, 2" NPT x 2" F Slip 2
8 000-086-008 Latch, Bungie - Strike 1
9 000-143-539 Screw, #6-32UNC x 0.50" Lg. Button Head Allen 2
10 000-094-063 Nut, #6-32UNC Nylock 2
11 000-078-039 Vacuum Inlet Stopper Assembly - Recovery Tank 1
