- 10 -

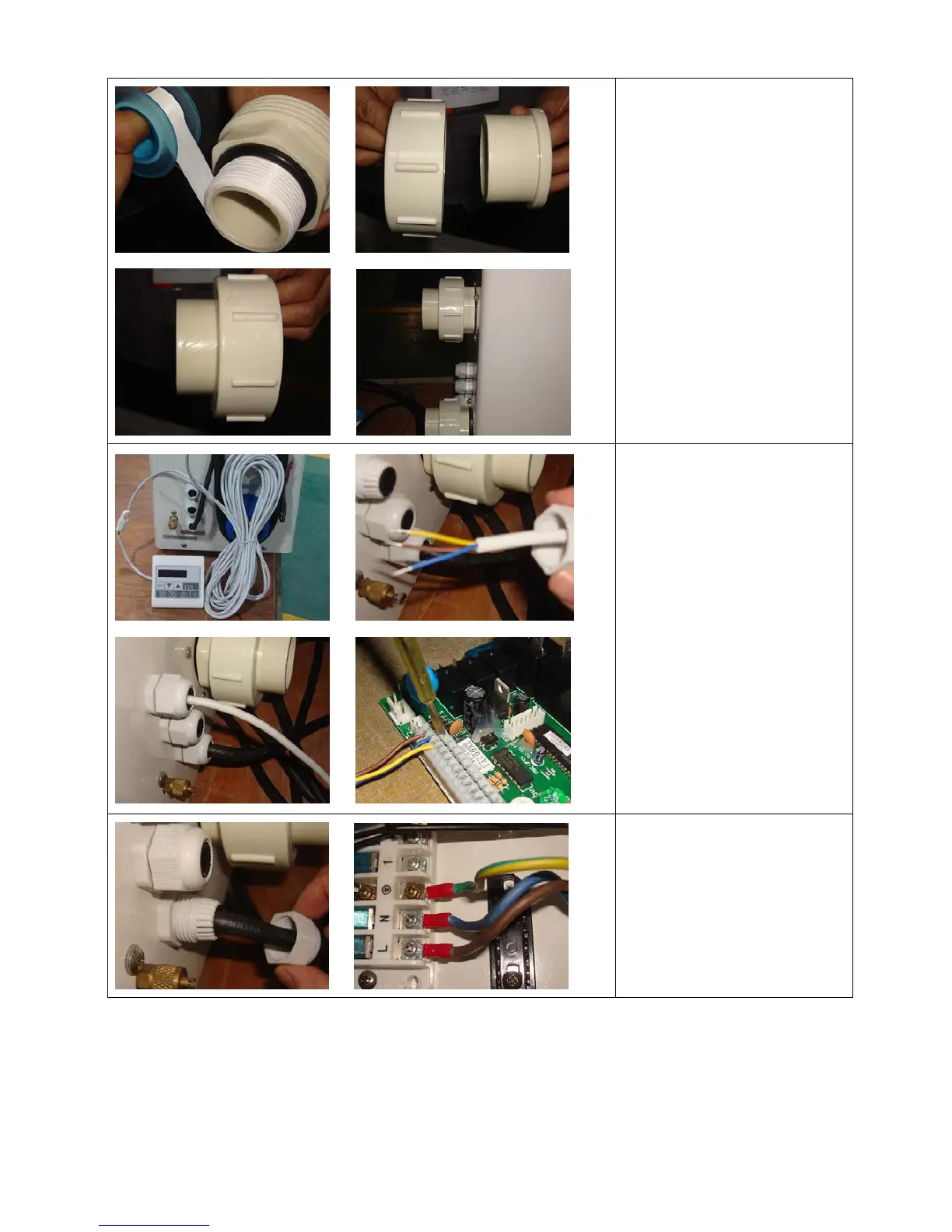

Water Inlet & outlet junction
1. Use the pipe tape to connect
the water Inlet & outlet junction
onto the heat pump
2. Install the two joints like the
picture shows
3. Screw them onto the water
Inlet & outlet junction
10M Signal wiring
1. Take one side of the 10M
Signal wire, to connect with the
controller.
2. The other side needs to be
pulled through the hole, like the
third picture shows.
3. Then connect to the PC board
inside the machine : the brown
one --- first joint; the blue one ---
second joint; the yellow one ---
third joint.
Cable wiring
1. Connect the power supply
wire through the white hole like
the picture shows.
2. Fix the other side on joints
inside the electric box.
To Next Page
