hydro-s 7024510 - DIMENSIONS

-6-

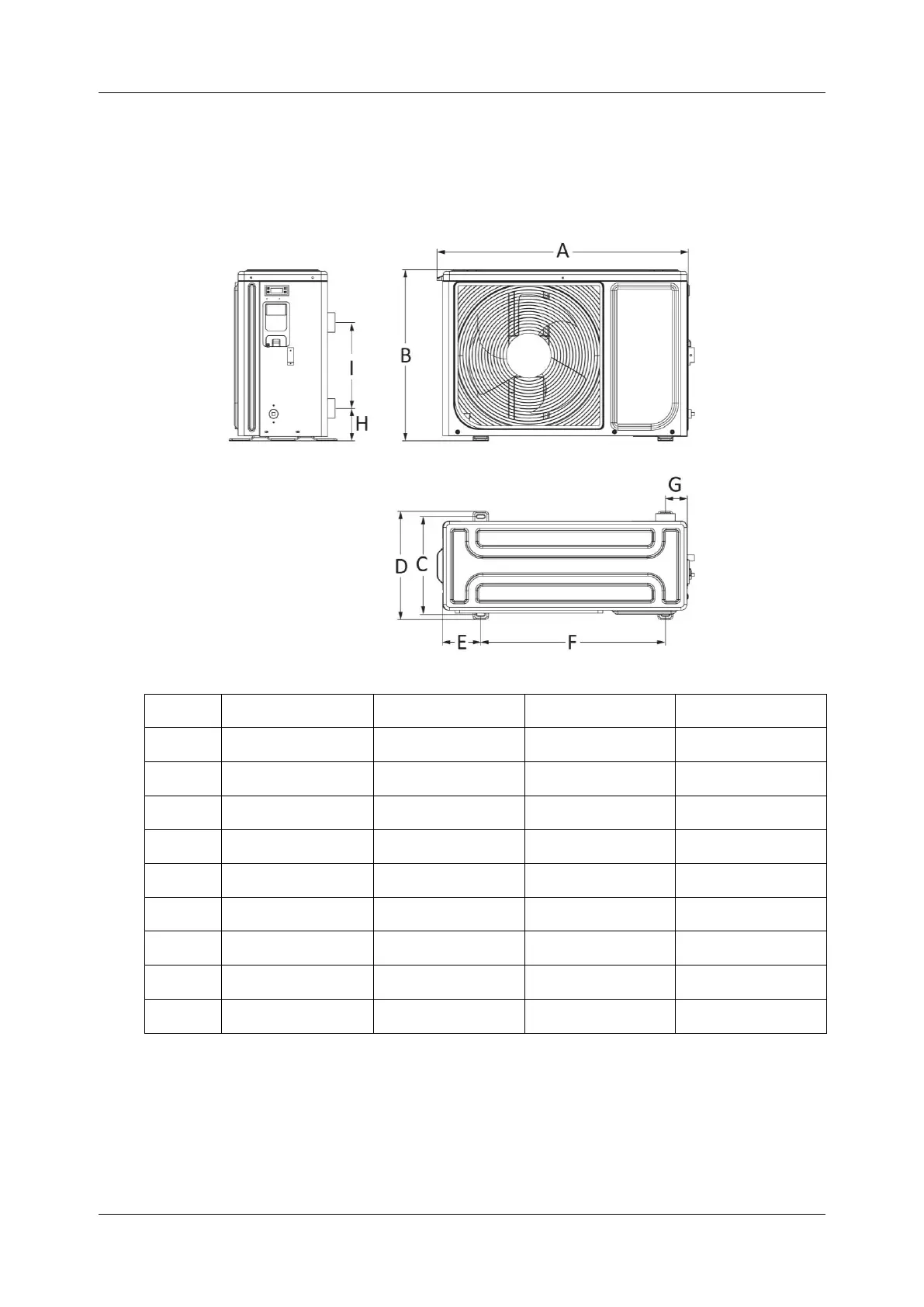

DIMENSIONS
(Unit: mm)
A5/32
A7/32
A10/32
A13/32
A
816
816
912
912
B
556
556
718
718
C
315
315
375
375
D
352
352
425.5
425.5
E
124
124
135
135
F
600
600
624
624
G
71
71
96
96
H
105
105
121
121
I
280
280
370
370
