Page 2
Selection Summary
Model No. & Option___________________________
Quantity____________________________________
Approved for Manufacturing
Company__________________Title______________
Signature_________________ Date______________
Important: Installation instructions and current rough-in are furnished with each fixture. Do not rough in without certified dimensions.
Dimensions are subject to manufacturer’s tolerance of plus or minus 1/4" and change without notice. Acorn assumes no responsibility for use of void or superseded data. © Copyright 2007 Acorn Engineering Company
PRODUCT OPTIONS
o -CFR Continuous Flushing Rim
o -EG Enviro-Glaze Color, Specify: ______________
o -FVT Flush Valve Thru Wall Connection
q -TF Transformer, 120VAC to 24VAC (-MVCFV Option)
o -WA1 Waste Adapter to 2" NCT Female
o -WA2 Waste Adapter to 2" NPT Male
o -WA3 Waste Adapter to 2" NPT Female
o -WA4 Waste Adapter to 2" No-Hub
FLUSH VALVE OPTIONS (Must Specify)
Refer to Acorn Dura-Ware Supplementary for Box Cover(s)
and Access Panel(s)
o -FV Flush Valve, Mechanical
o -FVBO Flush Valve by Others
o -FVH Flush Valve, Hydraulic (N/A for Top Supply)
o -FVL Flush Valve, ADA Lever Handle (Concealed F.V.)
o -MVCFV Time-Trol Flush Valve (N/A for Top Supply)
D.2162
®
Dura-Ware 2162: Washout Urinal
WALL THICKNESS AND TYPE (Must Specify)
Thickness: ________ Type: o Concrete o Block o Steel
BASE MODEL NUMBER
o 2162 Washout Urinal
MODEL NUMBER AND OPTIONS SELECTION
SUPPLY (Must Specify)
o -T Top (Exposed)
o -W Wall (Concealed)
FIXTURE MOUNTING AND WASTE
o -1 Off-Floor, Wall Outlet
FLUSH VALVE GPF’s (Must Specify)
o -1.0 GPF
o -1.5 GPF
Please visit www.acorneng.com
for most current specifications.
Acorn Engineering Company • 15125 Proctor Avenue • P.O. Box 3527 • City of Industry, CA 91744-0527 U.S.A.
Tel: (800) 488-8999 • (626) 336-4561 • Fax: (626) 961-2200 • www.acorneng.com • E-mail: info@acorneng.com

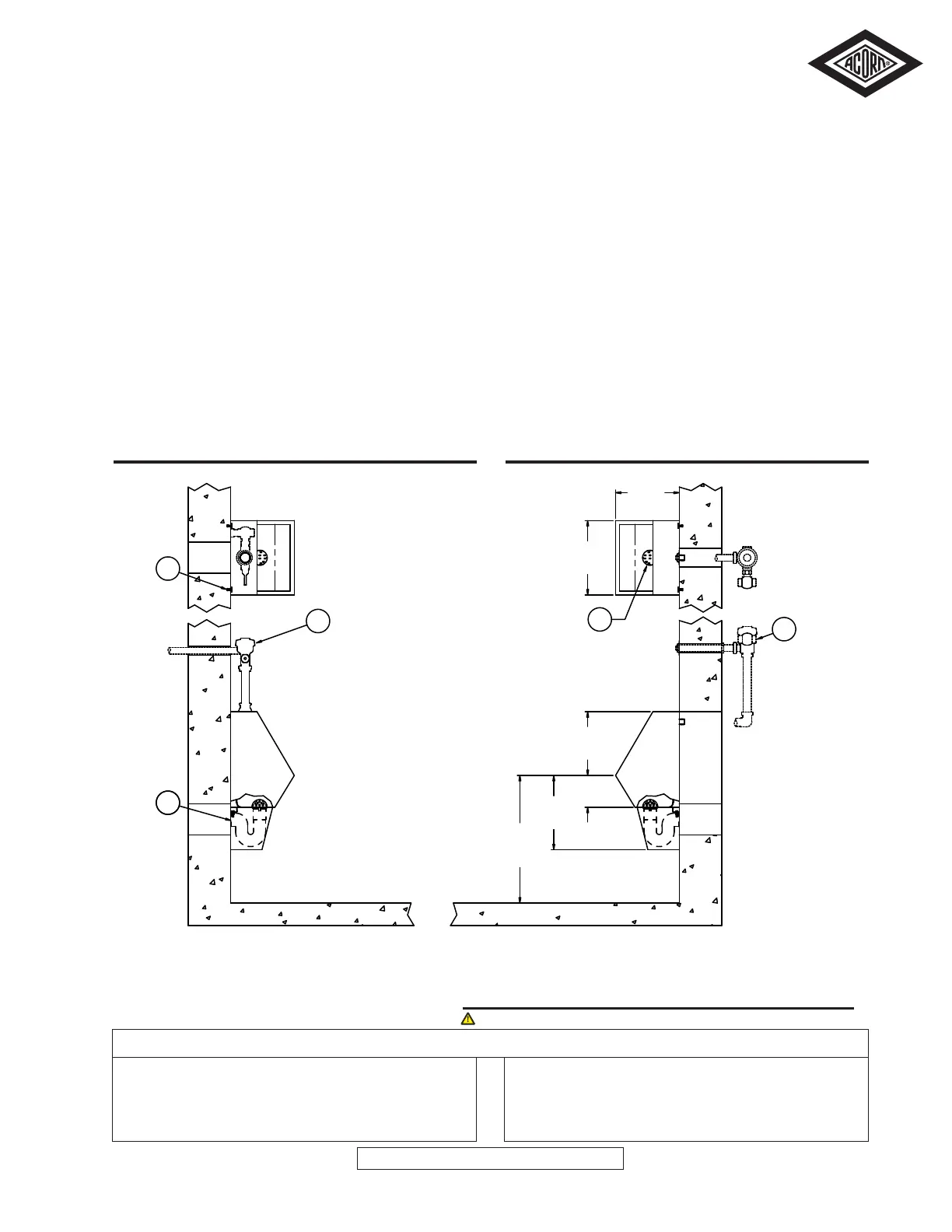

3. Urinal Waste Outlet.
5. Wall Mounting Anchors (By Others).
4. Beehive Strainer.
2. Optional -FV Flush Valve - Top Supply.
1. Optional -FV Flush Valve - Wall Supply.
NOTES:
2162-W-1
2162-T-1
5
3
2
4
1
24"
(610)
RECOMMENDED
6"
(152)
14"
(356)
12"
(305)
14"
(356)
12"
(305)
3
3
Revised: 08/21/18
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
