CHC-400 to CNC (X1-CNC), input/output both use optical isolation, UP/DOWN/AUTO is
external signal input to THC, Collision output from THC. All those signals share same COM.

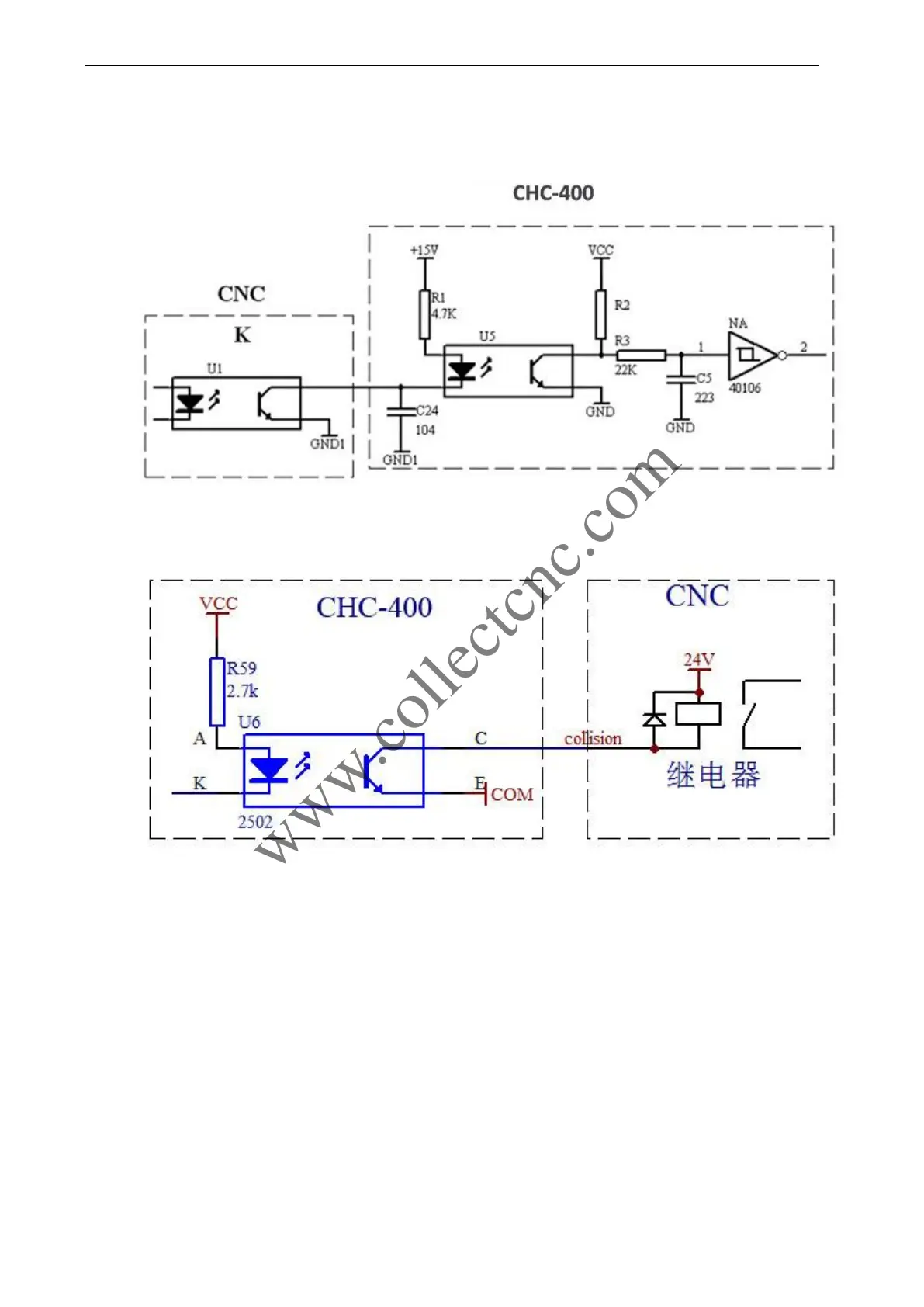

The input/output shows as Figure 3-4,
Input circuit
Output circuit
Figure 3-4 Input/Output circuit
To Next Page
