Hydthc CHC-400 - X1-CNC Connector Pin Definition

- 7 -
3.2.1、X1- CNC ( TO CNC)
It is a 7-pin socket, pin definition as follow，
Pin signal Specs
1 , 2 POWER
AC24V, 50/60Hz
Power supply > motor’s+20W
3 Collision
Collision output to CNC，OC door open
output
Max drive current :200mA
4 COM I/O COM
5 UP Up control, low-level effective
6 DOWN Down control, low-level effective
7 AUTO/MAN Auto control, low-level effective

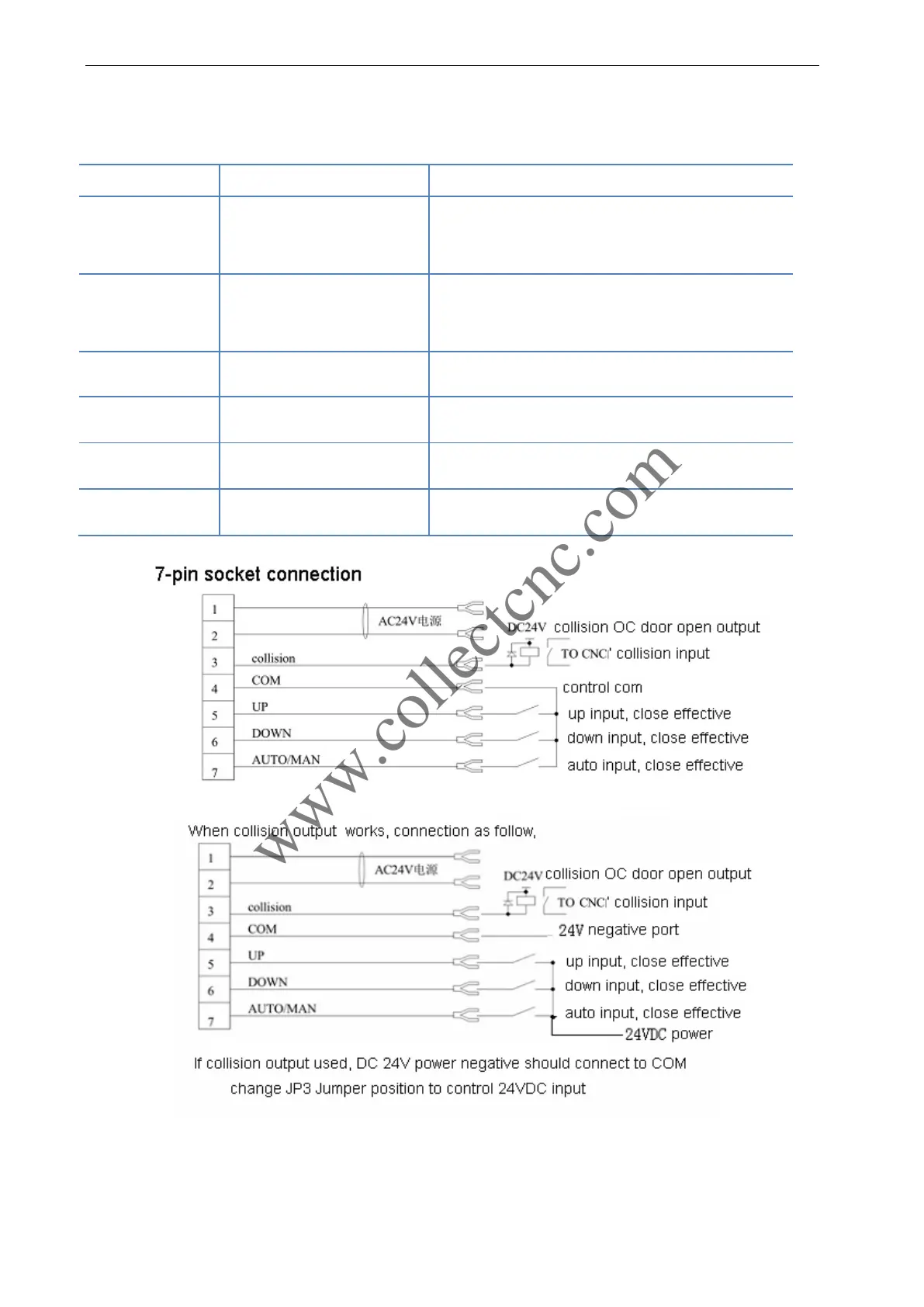

Figure 3-3 X1-CNC port definition
