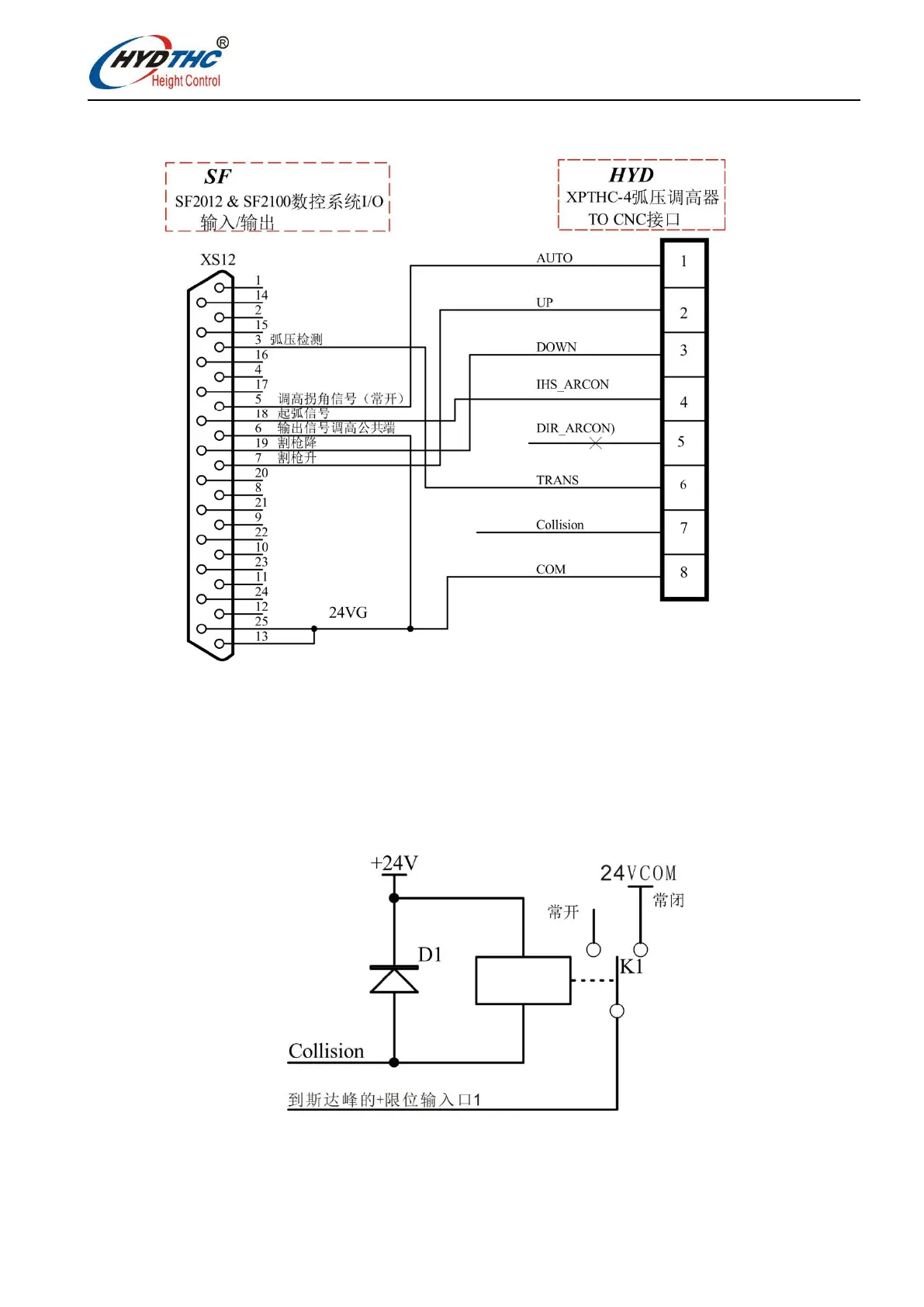

4.2、The connection between XPTHC-4 and SF2012/SF2100 wiring
See Fig 4-2 shows :
Fig 4-2：XPTHC-4 to CNC Connection
Note：
1、 This is the direct connection to SF2012/SF2100；
2、 This CNC controller is without collision
input, if you need the stop function when
collision, please according to SF instruction Fig 4-3 shows:
3、 If use the PIN5 corner signal, please set the “P7” to “0” on THC
4、 If for other SF CNC controller, please refer to its instruction’s I/O definition.
Fig 4-3: connection on the SF for the stop when collision
