ALWAYS FOLLOW this connection sequence, and reverse sequence to disconnect:
1) Connect OUTPUT harness 4mm plugs to the sockets located on the right side of the charger.
Take care that the Output Harness RED wire bullet connector goes to the (+) socket, and BLACK wire to (-) .
2a) Connect Charger INPUT alligator clips to an appropriate DC power source:
a) A 12V automobile battery
b) A quality, low-noise DC power supply of 12~15V with 5A+ rating (large batteries may require 10A supply)
OR
2b) Connect to AC wall power 100~240V using the supplied AC cable
DO NOT CONNECT BOTH AC AND DC INPUT AT THE SAME TIME!!
The Charger will display INPUT VOLTAGE error message if input voltage is out of range. If this happens, please recheck the input
power supply to make sure correct voltage is present.

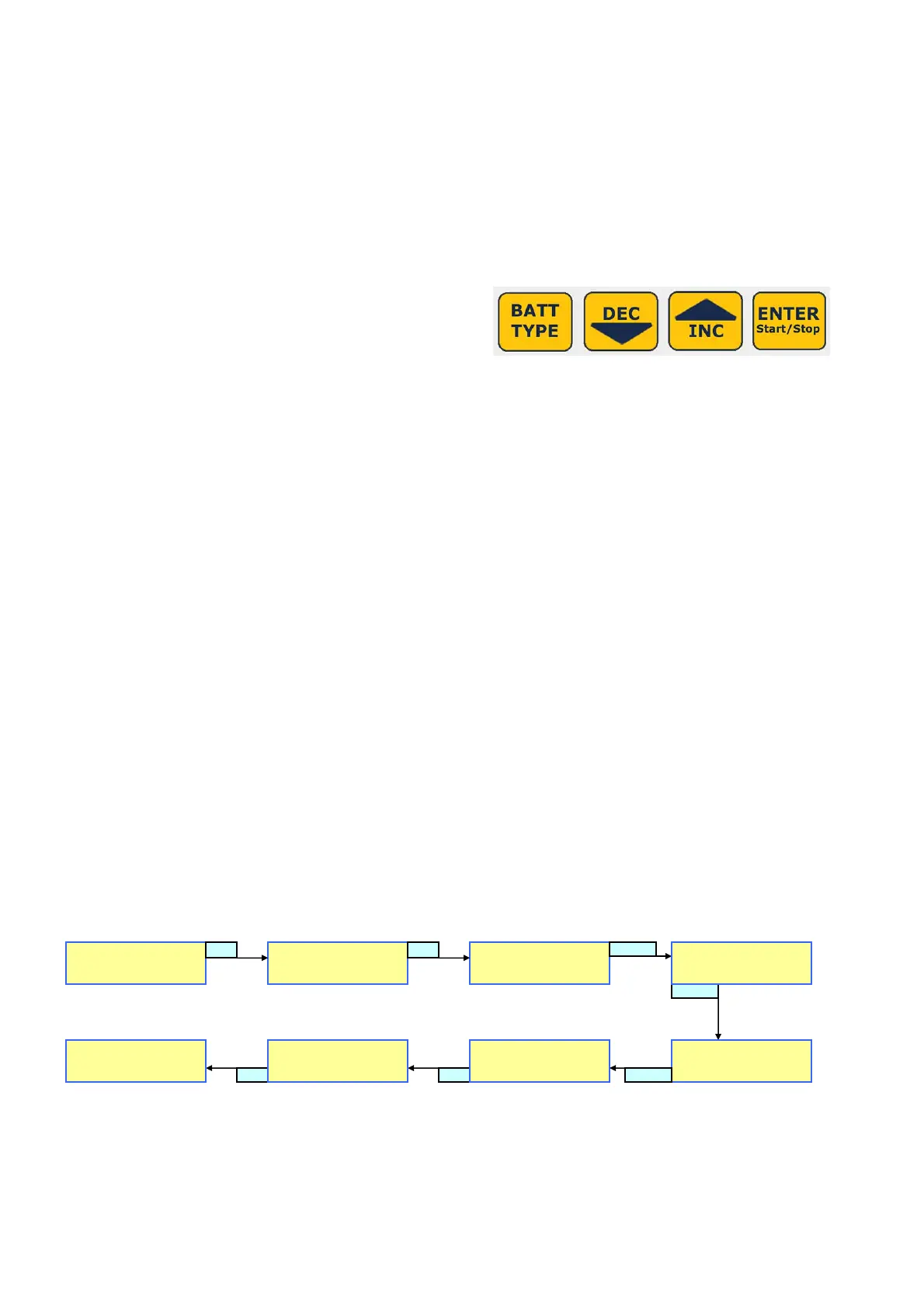

3) Set the battery type using the charger configuration buttons.
*The INC and DEC buttons are used to Increase or Decrease
values, such as Charge Current or Cell Count
*The INC and DEC buttons are also used to select MODE, such as Charge, Discharge, or Cycle, and to reach Lithium Type sub menu.
*The BATT TYPE and ENTER buttons both have two modes: SHORT press or LONG (~1 second) press
• Short press BATT TYPE: Scroll battery types
• Long press BATT TYPE: View input/output Data
• Short press ENTER: Scroll settings for a battery type. Values will blink when selected. Blinking will stop after a few
seconds if you do not make a change.
Short press Enter to re-select a setting to change. Short press BATT TYPE to re-select Battery Type, then INC/DEC to change
values.
• Long press ENTER: START charging (or discharging, or cycling)
Let’s start by using a NiMh battery as an example.
When the charger is first connected to input power, it will display the previously used battery configuration. This is especially
convenient if you often charge the same type of battery.
1) If NiMh is not shown, short push the BATT TYPE button to scroll through all battery types. Stop when you reach NiMh.
2) Short press the ENTER button to select “C”, charge rate in Ampere
3) Press INC or DEC buttons to choose the proper rate for your battery pack.
Charging NiCd and NiMH is mostly automatic, and the setup routines are the same for both. You only need to consult the
documentation for your battery pack (or ask your dealer) to determine the proper charge current in Ampere (A). If the rate is given
in mA, note that 100mA equals 0.1A: so 900mA would be 0.9A, for example.
4) Attach your NiMH battery to the EOS 0606i Output side harness, checking that +/- polarity is correct.
5) Long press ENTER button (hold down for about 1~2 seconds) to begin charging
NO BATTERY error – if battery not connected
OPEN CIRCUIT error – if the battery becomes disconnected from the charger after START
REVERSE POLARITY error – if the battery is connected in reverse
In
setting. However, if you want to enter DISCHARGE or CYCLE modes, you can press the BATT TYPE button to start NiMH
blinking, then press INC/DEC buttons to scroll through the various modes. Once the mode is settled (like CYCLE), short
press ENTER to start values blinking for editing.
our NiMH charging example above, we pressed the ENTER button when “NiMH” was blinking, to go directly to charge rate
hanging Between Lithium Types (LiPo vs LiFe)
sub menu. Start by pressing BATT TYPE once,
henever Lithium battery charging is started with Balancer properly connected, the display will show:
. NOT CONNECTED, stop and check your connections carefully, and repair as needed. We
ote: The EOS0606i-AD does not support charging of legacy 3.6v Lithium Ion cell types.
C
Switching between LITHIUM battery types is done in a
then INC button twice. At the Lithium TYPE screen, press ENTER, then INC/DEC to select type.
Finally, press DEC to return to Discharge or Charge Screens
W
BALANCER CONN. CONNECTED.
If you see instead BALANCER CONN
strongly recommend lithium balance charging at all times.
N
Never attempt to charge these cells, under any circumstances, using this charger.
LiPo CHARGE
C=6000mAh 6S
LiPo DISCHARGE
D=1.00 A 6S
INC
DEC
INC
Lithium Type
LiPo
INC ENTER
Lithium Type
LiPo
DEC
Lithium Type
LiFe
ENTER
Lithium Type
LiFe
LiFe CHARGE
6S
LiFe DISCHARGE
C=6000mAh D=1.00 A 6S
