Hyperion EOS 5i DP AC/DC User Manual

NiMH Mode
Setting charge current
Adjust and find the desired charge current which ranges from 0.1A to 5.0A with INC
& DEC buttons. Press the ENTER button to confirm setting.
Setting discharge current
Adjust and find the desired discharge current which ranges from 0.1A to 1A with INC
& DEC buttons. Press the ENTER button to confirm setting.
Setting discharge cutoff voltage
This is the voltage that the charger should stop discharging the battery.
Adjust and find total discharge cutoff voltages to be discharged from 0.1V to 16.8V
with INC & DEC buttons. Press the ENTER button to confirm setting.
Setting cycle
This is to set cycling with two options ( Charge to Discharge / Discharge to Charge).
Set cycling with INC & DEC buttons, and press the ENTER button to confirm setting.

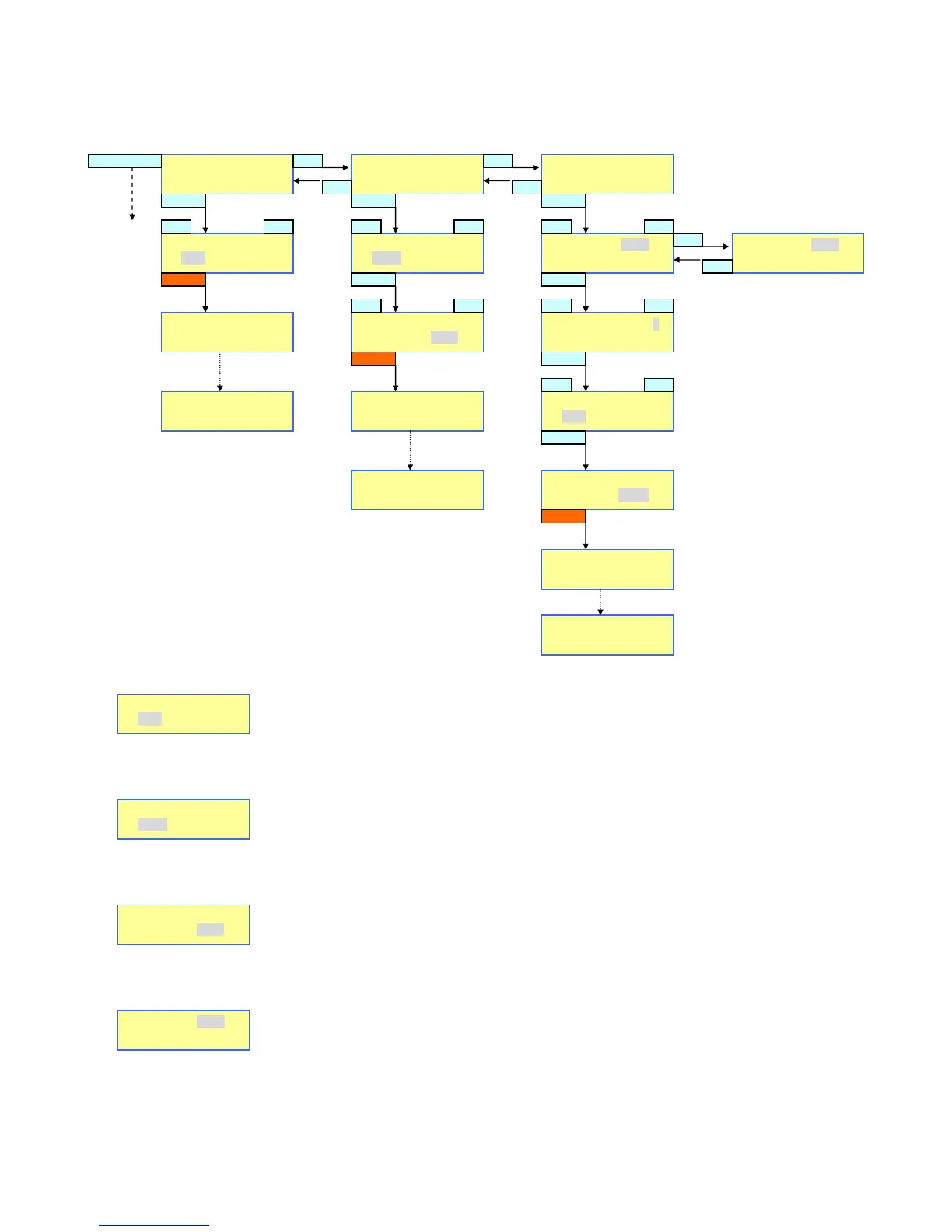

NiMH CHARGE
C=3.0A
NiMH DISCHARGE
D=0.50A 4.8 V
NiMH CYCLE D->C 5
C=3.0A D=0.50A
NiMH CHARGE
C=3.0A
BATTERY CHECK
WAIT PLEASE. . . .
CHG 0:00 00000
NH + 3.0 1.200
NiMH DISCHARGE
D=0.50A 4.8 V
ENTER
NiMH DISCHARGE
D=0.50A 4.8 V
BATTERY CHECK
WAIT PLEASE. . . .
DCH 0:00 00000
NH - 3.0 1.200
ENTER
DEC
ENTER
INC INC
INC DEC INC DEC
INC DEC
BATT TYPE
START
START
NiMH CYCLE D->C 5
C=3.0A D=0.50A
NiMH CYCLE D->C 5
C=3.0A D=0.50A
NiMH CYCLE D->C 5
C=3.0A D=0.50A
NiMH CYCLE D->C 5
C=3.0A D=0.50A
INC
INC DEC
INC DEC
SETUP
SETUP
SETUP
DEC
SETUP
INC
DEC
DEC
NiMH CYCLE C->D 5
C=3.0A D=0.50A
BATTERY CHECK
WAIT PLEASE. . . .
DCH 0:00 00000
NH + 3.0 1.200
NiMH DISCHARGE
D=0.50A 4.8 V
NiMH DISCHARGE
D=0.50A 4.8 V
NiMH CHARGE
C=3.0A
START
NiMH CYCLE C->D 5
C=3.0A D=0.50A
