Hypertherm HyPro2000 Field Service Bulletin

Field Service Bulletin 15
HyPro2000 — HT2000 TORCH UPGRADE
Arc voltage
The arc voltage settings (v) shown in the cut charts may need to be adjusted to produce the correct cutting height.
Physically measuring the height after stopping the torch is preferred, but visual inspection during a cut is acceptable.
Over the life of a consumable set it will also be necessary to periodically adjust the arc voltage (v) up 1 to 2 volts at a
time to maintain the proper torch height and to achieve the maximum life from the consumables.
Cut charts
The following Cut charts show the consumable parts, cutting speeds, gas pressures, and the current settings required
for each process.
The numbers shown in the Cut charts are recommended to provide high-quality cuts with minimal dross. Because of
differences between installations and material composition, adjustments may be required to obtain desired results.

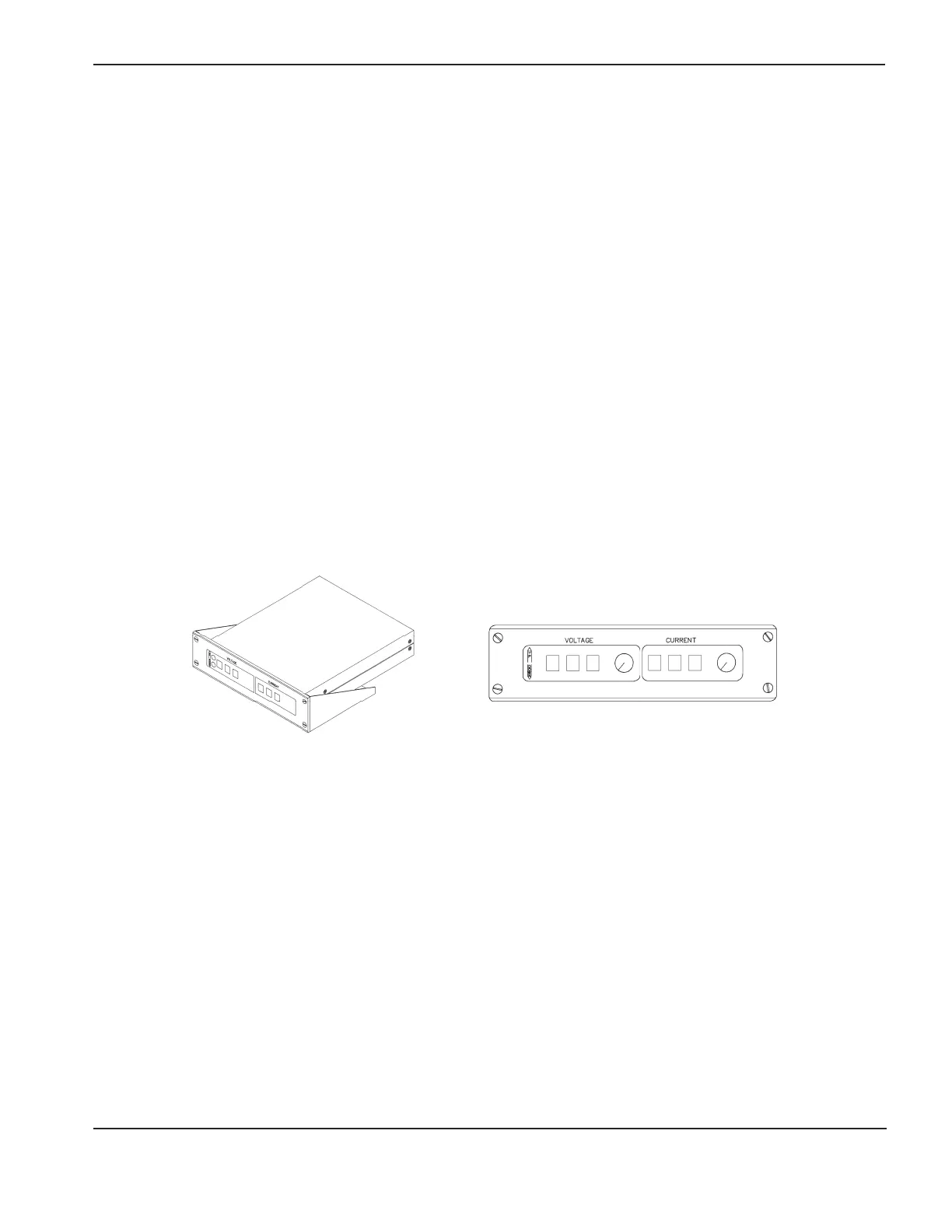

Digital remote
Hypertherm has produced a few versions of the digital remote. Some versions increase and decrease in 10 amp
increments, and some increase and decrease in 20 amp increments. If you have a digital remote that increases/
decreases by 20 amps, set the digital remote to 120 amps or 140 amps for a 130 amp process. The system will
automatically choose the 130 amp process.
