Hypertherm HyPro2000 Field Service Bulletin

Field Service Bulletin 3
HyPro2000 — HT2000 TORCH UPGRADE
Pre-installation
Before starting this upgrade you must determine if the system is a Local High Frequency (LHF) or a Remote High
Frequency system (RHF). You need to know this information to choose the correct firmware chip.

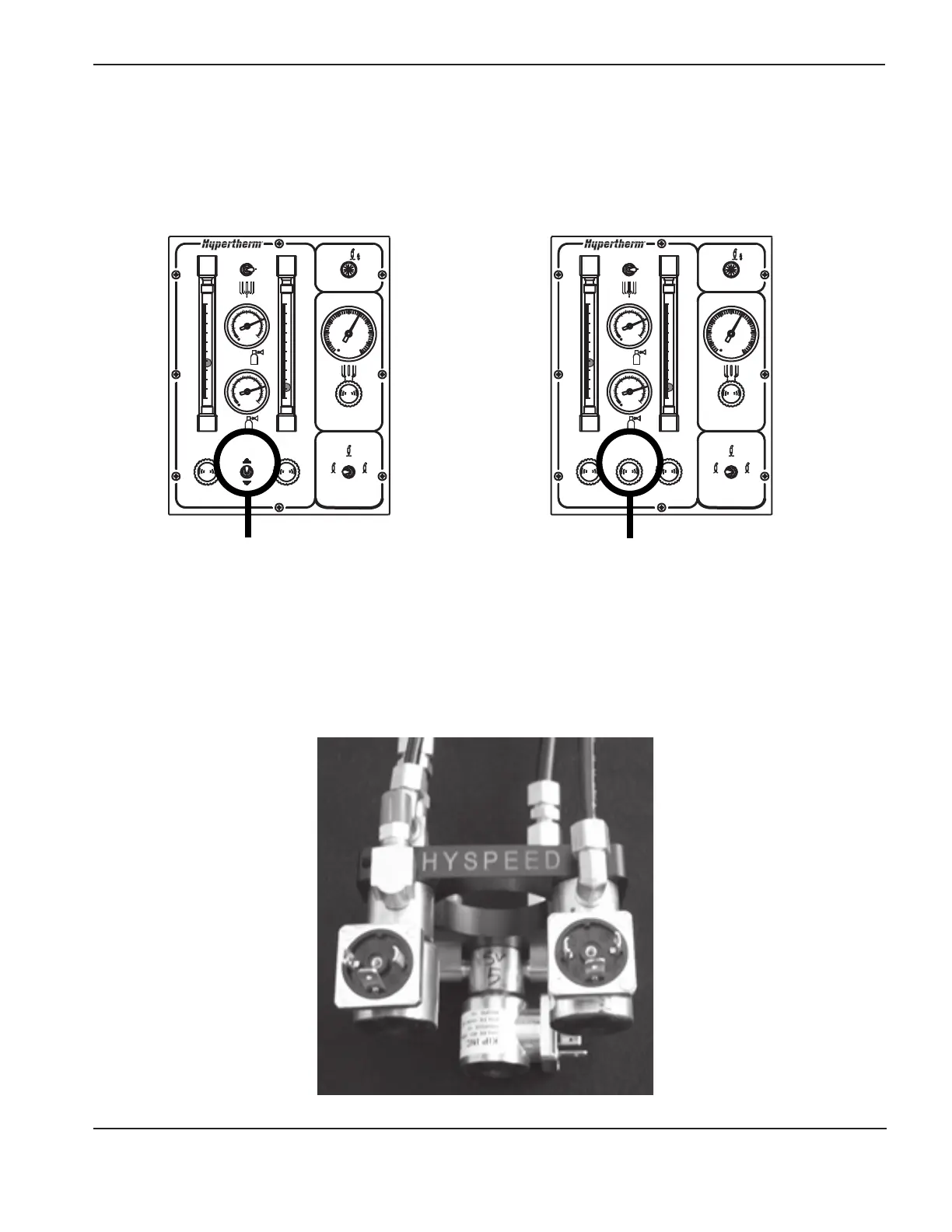

Inspect the gas console as described below:
If it has a knob to adjust the
plasma cutflow gas it is an LHF
system
If there is a toggle switch for the
plasma cutflow gas it is an RHF
system
3/$60$
1

$LU
2

6+,(/'
1

$LU
SVL
SVL
SVL
'&
1

$LU
2

2

3/$60$
&XW)ORZ
3UH)ORZ3UH)ORZ
5XQ






















7HV W
3UHIORZ
7HVW
&XWIORZ
3/$60$
1

$LU
2

6+,(/'
1

$LU
SVL
SVL
SVL
'&
1

$LU
2

2

3/$60$
&XW)ORZ
3UH)ORZ3UH)ORZ
5XQ






















7HVW
3UHIORZ
7HV W
&XWIORZ
The HySpeed off-valve assembly (129840) MUST be installed in an LHF system to continue with this upgrade. The off-
valve assembly is marked HYSPEED, as shown below.
