HyperX QuadCast S Installation Guide

Document No. 480HX-HMIQ1S.A01
HyperX QuadCast
TM
S
Page 12 of 17

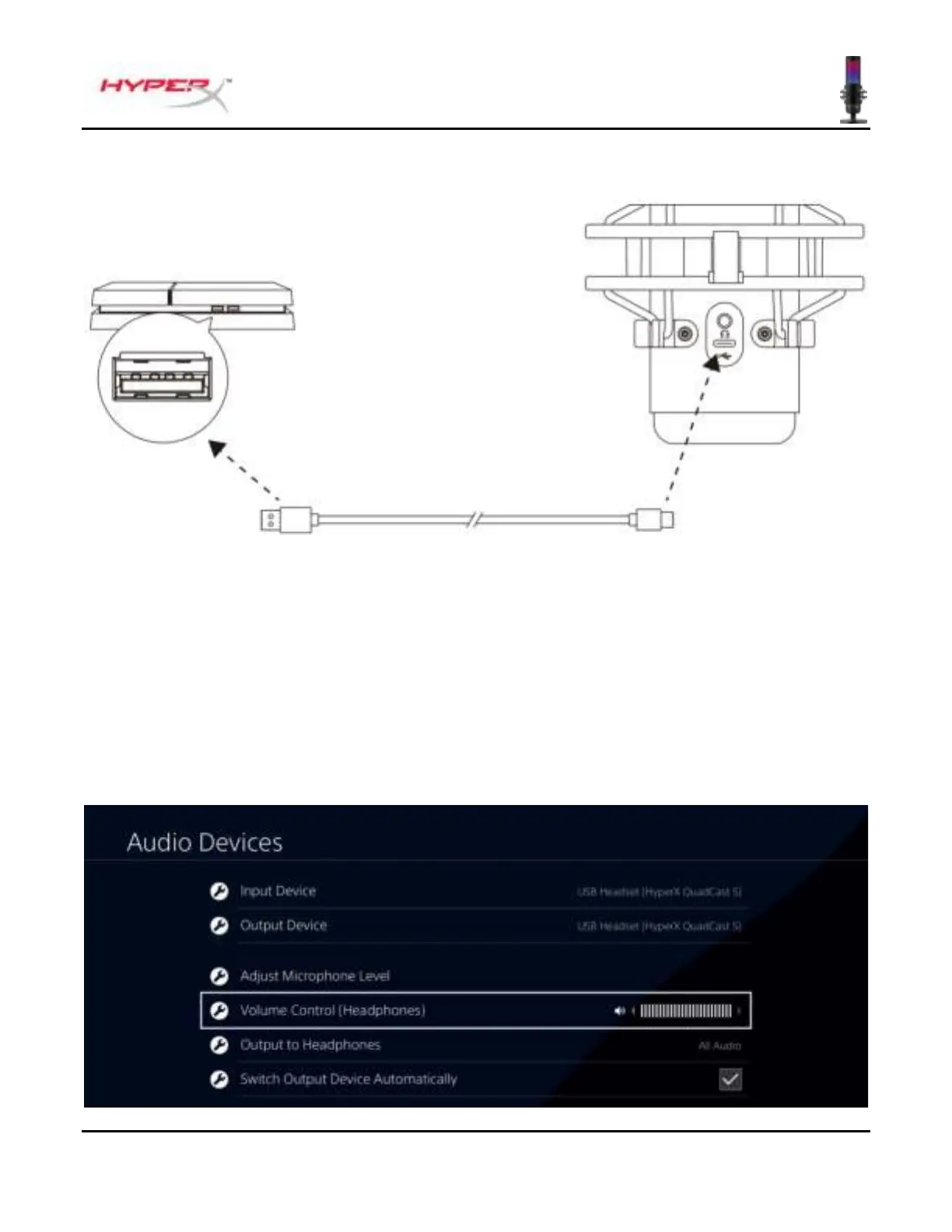

Using with PS4™
Connect the microphone to a USB port on the PS4 with the included USB cable.
To ensure the microphone is configured with the most optimal settings on the PS4, follow the steps
below:
1. From the PS4 main menu, go to Settings > Devices > Audio Devices
2. Set Input Device to USB Headset (HyperX QuadCast S)
3. Set Output Device to USB Headset (HyperX QuadCast S)
4. Set Output to Headphones to All Audio
5. Set Volume Control (Headphones) to desired volume.

HyperX QuadCast S Specifications

General

Type	Table microphone
Bit rate	16 bit
Sample rate	48 kHz
Microphone mute	Yes
Voice coil type	Condenser
Microphone frequency	20 - 20000 Hz
Microphone sensitivity	-36 dB
Microphone direction type	Omnidirectional/Bidirectional microphone
Cables included	USB Type-A to USB Type-C
Device interface	USB
USB connector type	USB Type-C
Connectivity technology	Wired
Cable length	3 m
Mounting type	Table
Product color	Black
Output impedance	32 Ω
Total Harmonic Distortion (THD)	0.05 %
Line-out Signal-to-Noise Ratio (SNR)	90 dB
Operating voltage	5 V
Power consumption	229 mA

Weight and Dimensions

Microphone weight	254 g
