1. KEY SWITCH
2. BATTERY DISCHARGE INDICATOR (BDI)
3. PARKING BRAKE SWITCH
4. PARKING BRAKE
5. TRACTION MOTOR
6. HORN
7. LIFT PUMP MOTOR
8. DIAGNOSTIC CONNECTOR
9. CONTACTOR
10. CONTROLLER
11. FUSE
12. BATTERY CONNECTOR

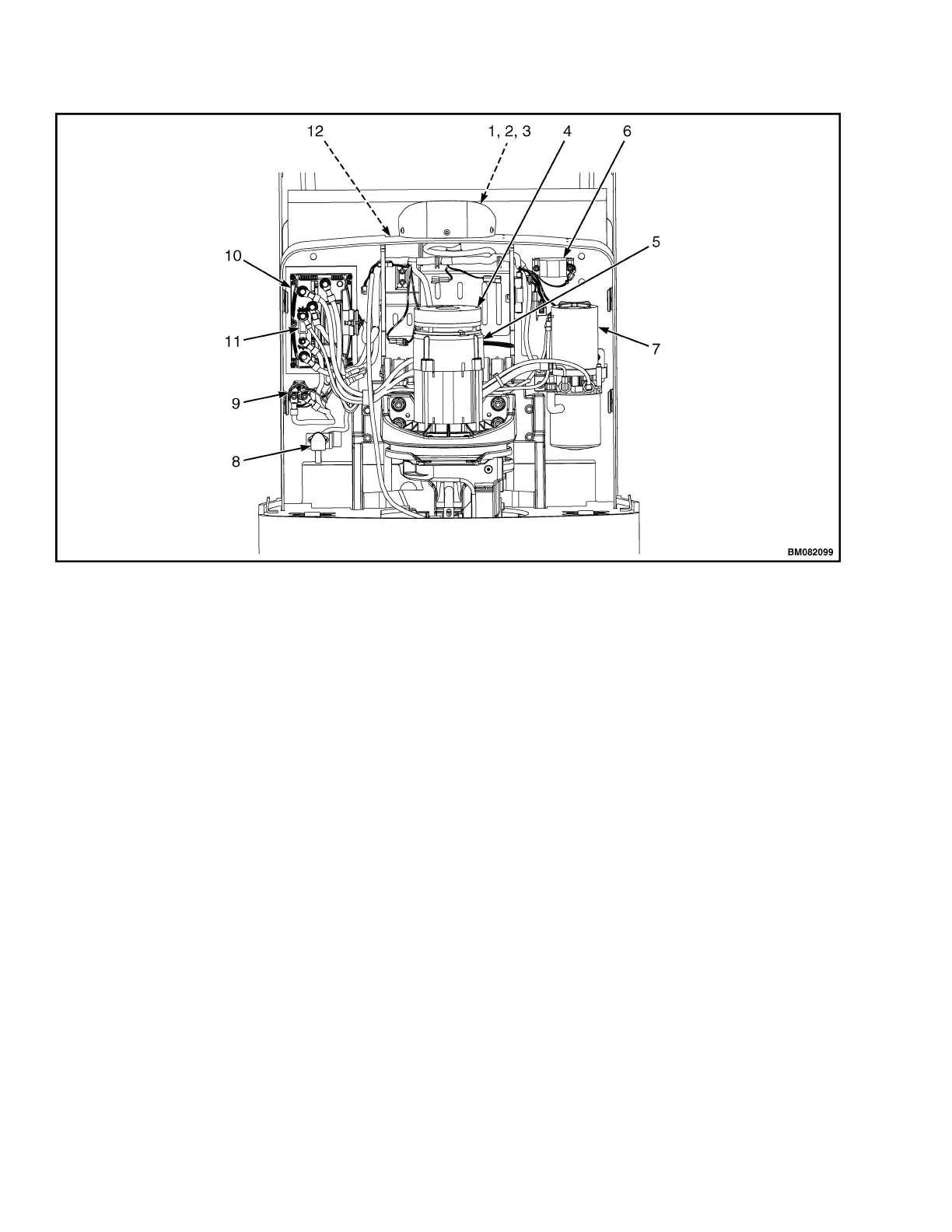

Figure 3. Electrical Components (C60-80Z
HD
)
Description of Operation 2200 SRM 1632
