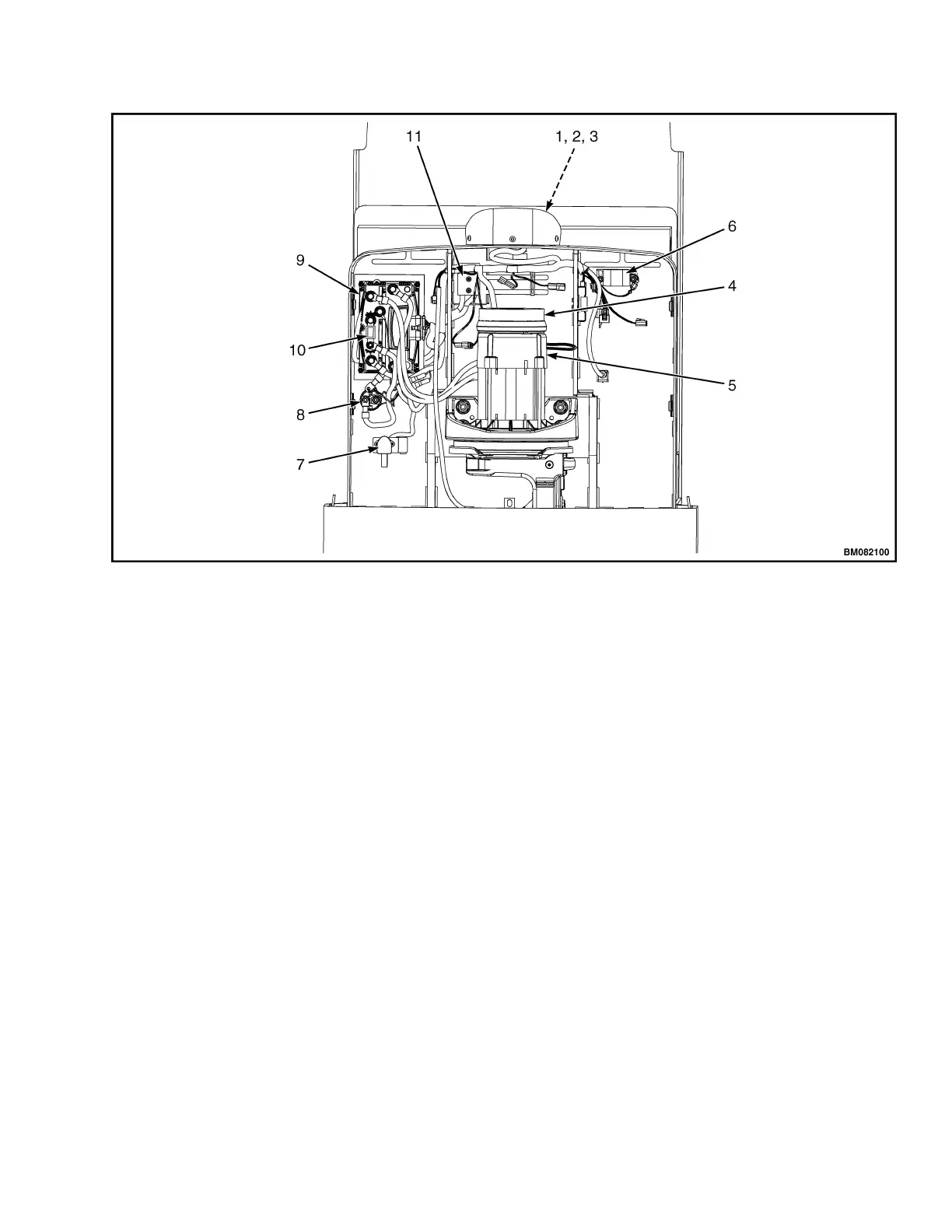

1. KEY SWITCH
2. BATTERY DISCHARGE INDICATOR (BDI)
3. PARKING BRAKE SWITCH
4. PARKING BRAKE
5. TRACTION MOTOR
6. HORN
7. DIAGNOSTIC CONNECTOR
8. CONTACTOR
9. CONTROLLER
10. FUSE
11. BATTERY CONNECTOR
Figure 4. Electrical Components (T5-7Z
